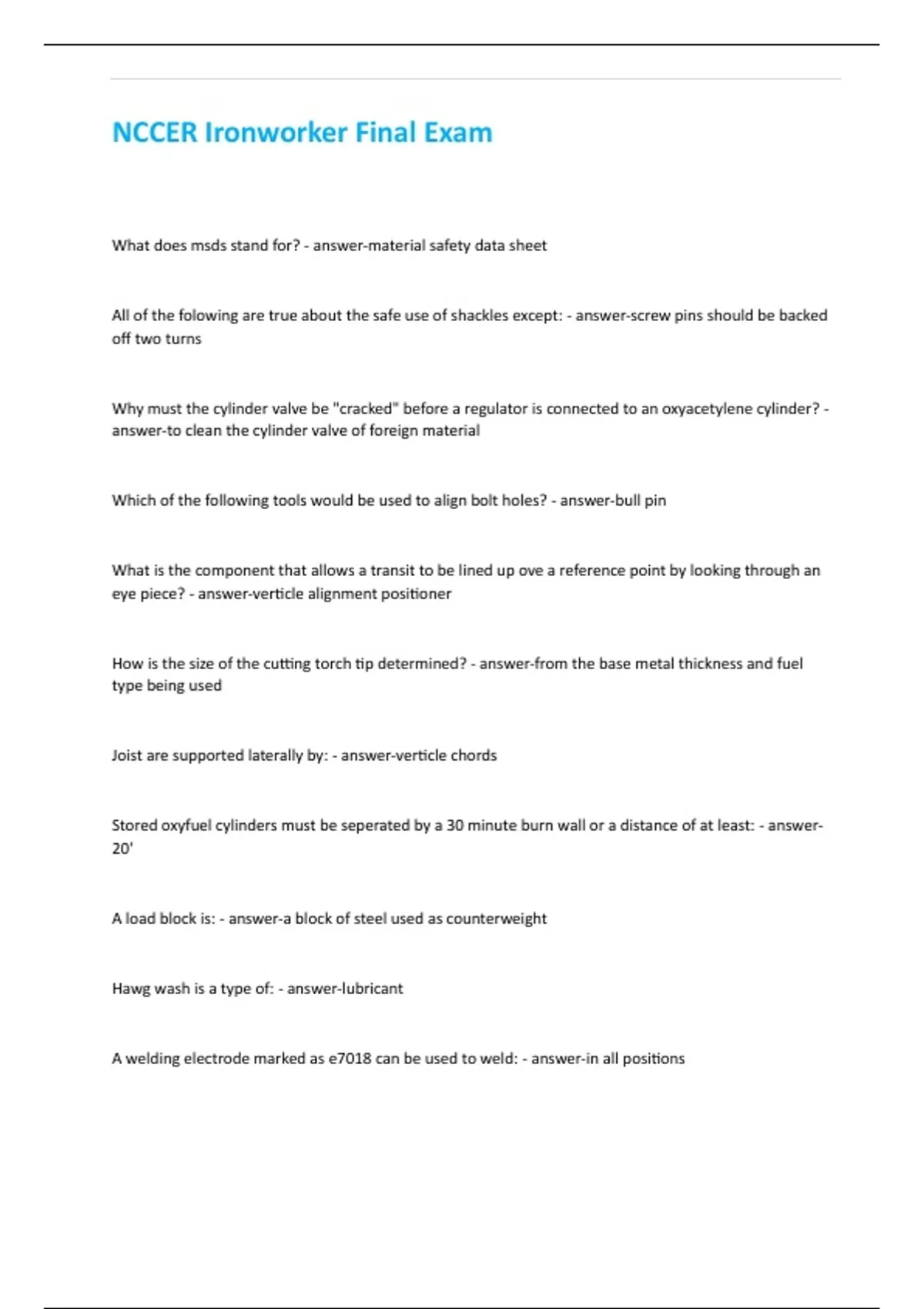

NCCER Ironworker Final Exam
What does msds stand for? - answer-material safety data sheet
All of the folowing are true about the safe use of shackles except: - answer-screw pins should be backed
off two turns
Why must the cylinder valve be "cracked" before a regulator is connected to an oxyacetylene cylinder? -
answer-to clean the cylinder valve of foreign material
Which of the following tools would be used to align bolt holes? - answer-bull pin
What is the component that allows a transit to be lined up ove a reference point by looking through an
eye piece? - answer-verticle alignment positioner
How is the size of the cutting torch tip determined? - answer-from the base metal thickness and fuel
type being used
Joist are supported laterally by: - answer-verticle chords
Stored oxyfuel cylinders must be seperated by a 30 minute burn wall or a distance of at least: - answer-
20'
A load block is: - answer-a block of steel used as counterweight
Hawg wash is a type of: - answer-lubricant
A welding electrode marked as e7018 can be used to weld: - answer-in all positions
, Joist resting on steel must have a minimum bearing of: - answer-1 inch
What is the minimum waiting period before using an acetylene cylinder that has tipped over? - answer-
30 minutes
One of the limit switches on a crane is called a(n): - answer-anti two blocking device
Acetylene gas reguators are always redlined at: - answer-15 psi
Removing a portion of the flanges at the end of a beam to allow connection of a beam to the web of a
column is called - answer-coping
The relationship between the sheave diameter and the rope diameter is describing the: - answer-d:d
ratio
All of the following conditions would require the removal of rigging from service except: - answer-
excessive lubrication
In crane operations, what is a jib? - answer-an extension of the main boom
The minimum level of ppe that is required for a specific task is detemined by: - answer-the company
safety department
Which of the following is not a type of decking? - answer-cellular deck
Which of the following bolt types is known as a "soft" bolt that is generally used in static load structures?
- answer-a307
When stacking or storing joist, dunnage or cribbing should be placed under the: - answer-lateral ends
Which of the following cranes are best suited for pick and carry operations? - answer-crawler cranes
What does msds stand for? - answer-material safety data sheet
All of the folowing are true about the safe use of shackles except: - answer-screw pins should be backed
off two turns
Why must the cylinder valve be "cracked" before a regulator is connected to an oxyacetylene cylinder? -
answer-to clean the cylinder valve of foreign material
Which of the following tools would be used to align bolt holes? - answer-bull pin
What is the component that allows a transit to be lined up ove a reference point by looking through an
eye piece? - answer-verticle alignment positioner
How is the size of the cutting torch tip determined? - answer-from the base metal thickness and fuel
type being used
Joist are supported laterally by: - answer-verticle chords
Stored oxyfuel cylinders must be seperated by a 30 minute burn wall or a distance of at least: - answer-
20'
A load block is: - answer-a block of steel used as counterweight
Hawg wash is a type of: - answer-lubricant
A welding electrode marked as e7018 can be used to weld: - answer-in all positions
, Joist resting on steel must have a minimum bearing of: - answer-1 inch
What is the minimum waiting period before using an acetylene cylinder that has tipped over? - answer-
30 minutes
One of the limit switches on a crane is called a(n): - answer-anti two blocking device
Acetylene gas reguators are always redlined at: - answer-15 psi
Removing a portion of the flanges at the end of a beam to allow connection of a beam to the web of a
column is called - answer-coping
The relationship between the sheave diameter and the rope diameter is describing the: - answer-d:d
ratio
All of the following conditions would require the removal of rigging from service except: - answer-
excessive lubrication
In crane operations, what is a jib? - answer-an extension of the main boom
The minimum level of ppe that is required for a specific task is detemined by: - answer-the company
safety department
Which of the following is not a type of decking? - answer-cellular deck
Which of the following bolt types is known as a "soft" bolt that is generally used in static load structures?
- answer-a307
When stacking or storing joist, dunnage or cribbing should be placed under the: - answer-lateral ends
Which of the following cranes are best suited for pick and carry operations? - answer-crawler cranes
