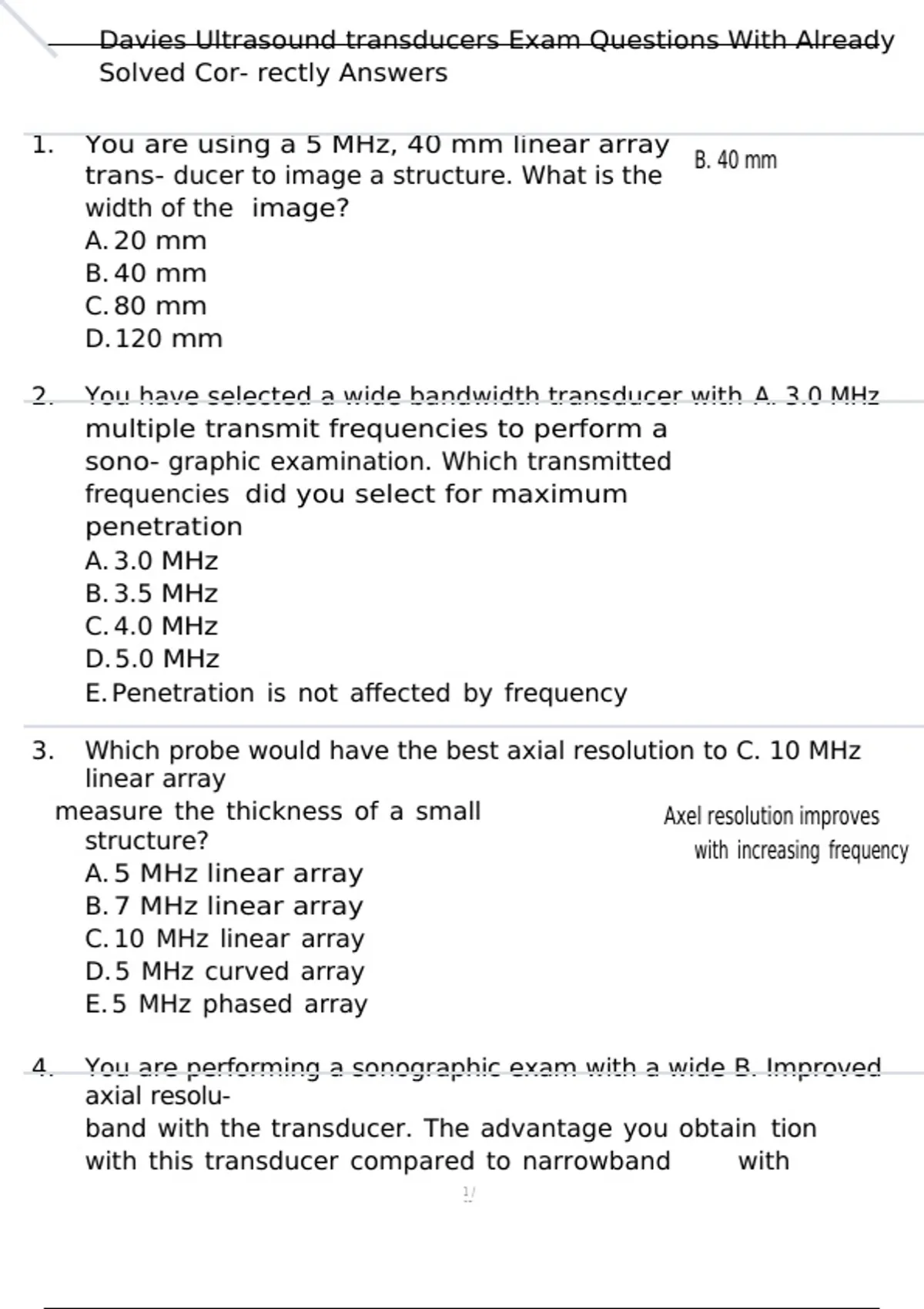

Davies Ultrasound transducers Exam Questions With Already
Solved Cor- rectly Answers
1. You are using a 5 MHz, 40 mm linear array
B. 40 mm
trans- ducer to image a structure. What is the
width of the image?
A. 20 mm
B. 40 mm
C. 80 mm
D. 120 mm
2. You have selected a wide bandwidth transducer with A. 3.0 MHz
multiple transmit frequencies to perform a
sono- graphic examination. Which transmitted
frequencies did you select for maximum
penetration
A. 3.0 MHz
B. 3.5 MHz
C. 4.0 MHz
D. 5.0 MHz
E. Penetration is not affected by frequency
3.Which probe would have the best axial resolution to C. 10 MHz
linear array
measure the thickness of a small Axel resolution improves
structure? with increasing frequency
A. 5 MHz linear array
B. 7 MHz linear array
C. 10 MHz linear array
D. 5 MHz curved array
E. 5 MHz phased array
4. You are performing a sonographic exam with a wide B. Improved
axial resolu-
band with the transducer. The advantage you obtain tion
with this transducer compared to narrowband with
1/
83
, Davies Ultrasound transducers Exam Questions With Already
Solved Cor- rectly Answers
transducer is Axial resolution is
A. Decreased acoustic power output improved with wide
band with trans-
ducers
2/
83
, Davies Ultrasound transducers Exam Questions With Already
Solved Cor- rectly Answers
B. Improved axial resolution
C. Improved Lateral resolution
D. Improve focusing
E. Wide band with transducers can be auto
clave
A.
5. Which transducer would provide the longest 10 MHz, 6 mm diameter
near zone length
aperture
A. 10 MHz, 6 mm diameter aperture
B. 10 MHz, 5 mm diameter aperture The near zone length
C. 10 MHz, 4 mm diameter aperture increases with
D. 10 MHz, 3 mm diameter aperture increasing aperture. The
E. 10 MHz 2mm diameter aperture aperture is the size of the
source of the sound
6. The location where the sound beam reaches its nar- E. Focal zone
rows diameter is known as the
A. Fraunhofer zone
B. Beam area
C. Fresnel zone
D. Currie point
E. Focal zone
7. Which of the following transducers creates a rectan- A. Linear array
gular image shape
A. Linear array
B. Phased array
C. Annular array
D. Curved array
E. B and c only
8. B. Linear array
3/
83
, Davies Ultrasound transducers Exam Questions With Already
Solved Cor- rectly Answers
The term for a transducer that has an array of rec-
tangular elements arranged in a straight
line is
A. Annular array
B. Linear array
C. Curved array
D. Oscillating mechanical transducer
E. Convex sequenced array
D. Mechanical focusing
9. For a linear array transducer consisting of a
single row of elements, what method is most The Z axis is also known
used to focus the beam in the elevational as the out of plain
direction dimension. It is the axis
A. Transmit focus that runs across the width
B. Dynamic receive focusing of the transduc- er
C. Aperture focusing transmit, dynamic receive
D. Mechanical focusing an aperture focusing
E. None of the above require the use of
multiple elements. Since
there are not multiple
elements along the
width of the transducer,
these types of focusing
cannot be ac-
complished in this
Dimen- sions. Focusing
on the Z axis is
accomplished by
10. What type of transducer could you choose to mechan- ical means
pro- duce a beam that is symmetrical about either a lens or
the beams axis curvature of the element
A. Annular Array
4/
