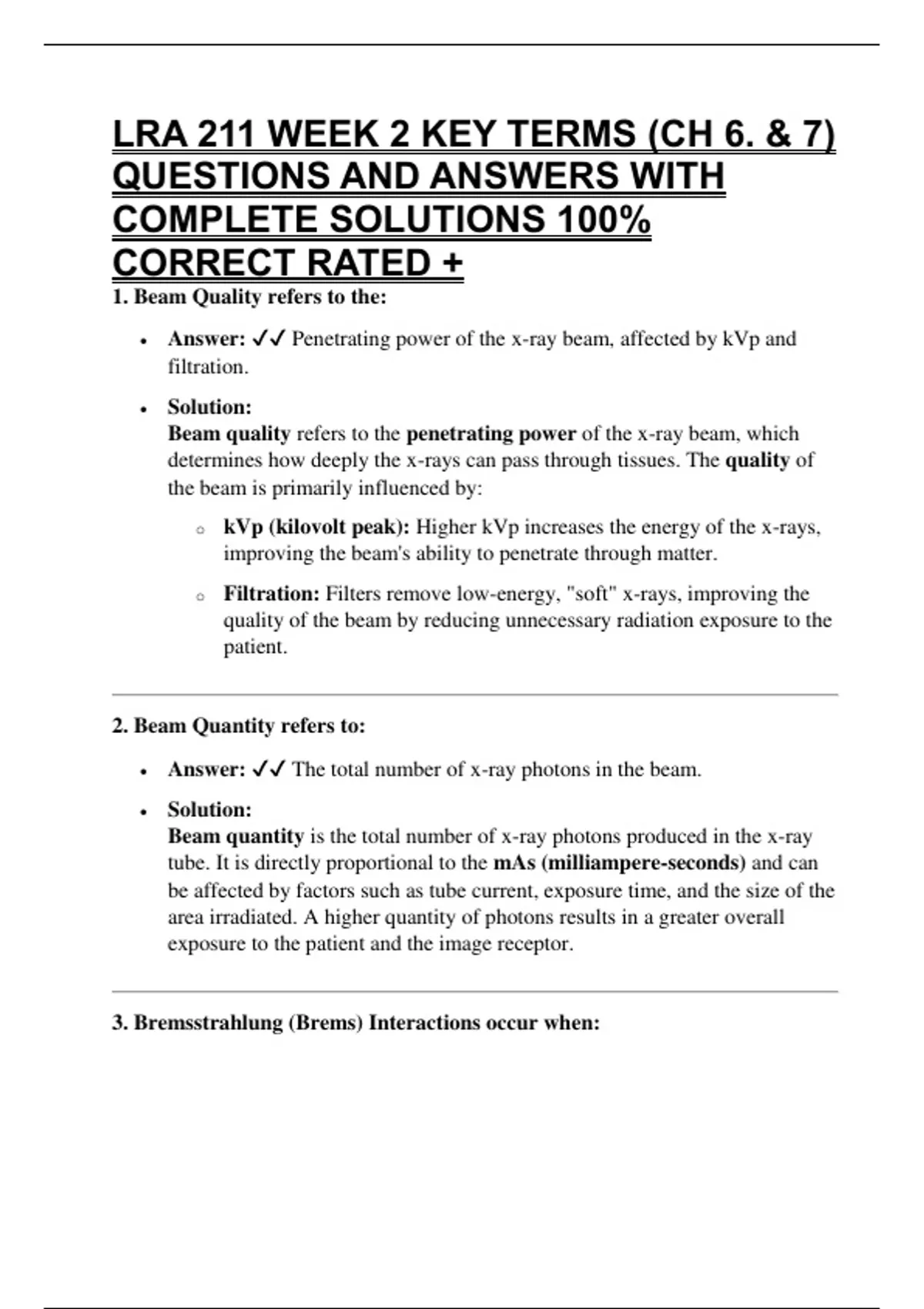

LRA 211 WEEK 2 KEY TERMS (CH 6. & 7)
QUESTIONS AND ANSWERS WITH
COMPLETE SOLUTIONS 100%
CORRECT RATED +
1. Beam Quality refers to the:
Answer: ✔✔ Penetrating power of the x-ray beam, affected by kVp and
filtration.
Solution:
Beam quality refers to the penetrating power of the x-ray beam, which
determines how deeply the x-rays can pass through tissues. The quality of
the beam is primarily influenced by:
o kVp (kilovolt peak): Higher kVp increases the energy of the x-rays,
improving the beam's ability to penetrate through matter.
o Filtration: Filters remove low-energy, "soft" x-rays, improving the
quality of the beam by reducing unnecessary radiation exposure to the
patient.
2. Beam Quantity refers to:
Answer: ✔✔ The total number of x-ray photons in the beam.
Solution:
Beam quantity is the total number of x-ray photons produced in the x-ray
tube. It is directly proportional to the mAs (milliampere-seconds) and can
be affected by factors such as tube current, exposure time, and the size of the
area irradiated. A higher quantity of photons results in a greater overall
exposure to the patient and the image receptor.
3. Bremsstrahlung (Brems) Interactions occur when:
, Answer: ✔✔ A high-speed electron from the filament is slowed down and
deflected by the nuclear field of a target atom nucleus, losing kinetic energy
which is emitted as an x-ray photon.
Solution:
Bremsstrahlung (or "braking radiation") occurs when a high-speed electron
from the filament interacts with the nucleus of a target atom (typically
tungsten). The electron is decelerated by the strong electromagnetic field of
the nucleus, causing it to lose energy. This energy loss is emitted as a
bremsstrahlung x-ray photon. These interactions are responsible for the
majority of x-rays produced in the tube.
4. Characteristic Cascade refers to:
Answer: ✔✔ A series of transitions by electrons in an atom from higher to
lower energy levels, with the emission of characteristic x-ray photons at
each transition.
Solution:
A characteristic cascade occurs when an inner-shell electron (e.g., a K-
shell electron) is ejected from an atom, creating a vacancy. Electrons from
higher energy levels (e.g., L-shell, M-shell) fall into the vacancy, releasing
energy in the form of characteristic x-ray photons. These emitted photons
have specific energies corresponding to the energy differences between the
shells of the atom.
5. Characteristic Interactions involve:
Answer: ✔✔ The ejection of an inner-shell electron by an incoming high-
speed electron from the filament, creating a vacancy that is filled by an
electron from a higher energy level.
Solution:
Characteristic interactions occur when a high-speed electron from the
filament strikes and ejects an inner-shell electron (usually from the K-
shell) of a target atom. This creates a vacancy in the inner shell, and an
electron from a higher shell (e.g., L-shell) falls into the vacancy, emitting a
