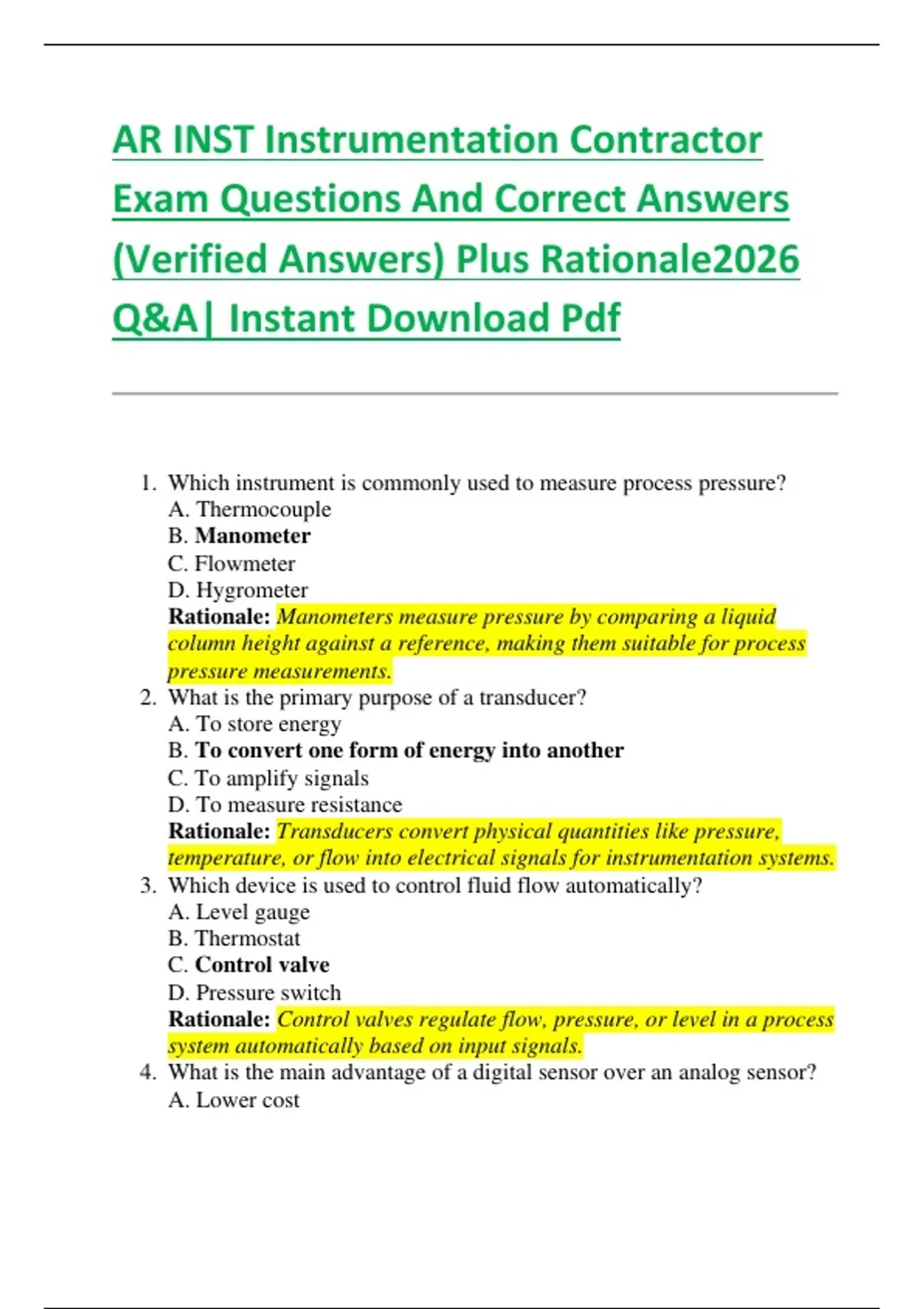

AR INST Instrumentation Contractor
Exam Questions And Correct Answers
(Verified Answers) Plus Rationale2026
Q&A| Instant Download Pdf
1. Which instrument is commonly used to measure process pressure?
A. Thermocouple
B. Manometer
C. Flowmeter
D. Hygrometer
Rationale: Manometers measure pressure by comparing a liquid
column height against a reference, making them suitable for process
pressure measurements.
2. What is the primary purpose of a transducer?
A. To store energy
B. To convert one form of energy into another
C. To amplify signals
D. To measure resistance
Rationale: Transducers convert physical quantities like pressure,
temperature, or flow into electrical signals for instrumentation systems.
3. Which device is used to control fluid flow automatically?
A. Level gauge
B. Thermostat
C. Control valve
D. Pressure switch
Rationale: Control valves regulate flow, pressure, or level in a process
system automatically based on input signals.
4. What is the main advantage of a digital sensor over an analog sensor?
A. Lower cost
, B. Larger size
C. Higher accuracy and noise immunity
D. Requires no calibration
Rationale: Digital sensors provide precise readings, are less affected
by electrical noise, and can communicate easily with control systems.
5. Which type of transmitter is suitable for long-distance signal
transmission?
A. Pneumatic
B. 4–20 mA current loop transmitter
C. Mechanical gauge
D. Mercury thermometer
Rationale: 4–20 mA current loops are standard for transmitting sensor
signals over long distances with minimal signal loss.
6. What does PID stand for in control systems?
A. Process Internal Device
B. Proportional, Integral, Derivative
C. Pressure Indicating Device
D. Programmable Input Device
Rationale: PID controllers use proportional, integral, and derivative
actions to maintain process variables at setpoints.
7. Which sensor type is used to measure temperature in industrial
applications?
A. Flowmeter
B. Thermocouple
C. Manometer
D. Strain gauge
Rationale: Thermocouples generate a voltage proportional to
temperature, making them widely used in industrial processes.
8. What is the function of a strain gauge in instrumentation?
A. Measure temperature
B. Measure flow
C. Measure force or deformation
D. Measure pressure only
Rationale: Strain gauges detect mechanical strain, converting it into a
measurable electrical signal.
9. Which signal type is least affected by electrical noise?
A. Voltage signal
, B. Current signal
C. Resistance signal
D. Capacitance signal
Rationale: Current signals (4–20 mA) are less prone to interference
compared to voltage signals.
10. In control systems, what does “loop calibration” ensure?
A. Proper power supply
B. Correct sensor type
C. Accurate signal transmission and response
D. Correct valve size
Rationale: Loop calibration ensures the sensor, transmitter, and
actuator communicate correctly, maintaining process accuracy.
11. Which device measures the level of liquid in a tank?
A. Flowmeter
B. Pressure transmitter
C. Level transmitter
D. Thermocouple
Rationale: Level transmitters continuously monitor liquid levels and
provide signals to control systems.
12. Which is a primary safety instrumented function (SIF)?
A. Flow measurement
B. Level control
C. Emergency shutdown
D. Temperature display
Rationale: SIFs are safety mechanisms designed to bring the process
to a safe state during hazardous conditions.
13. What is the purpose of a deadband in a control system?
A. Increase control speed
B. Measure temperature
C. Prevent excessive switching or oscillations
D. Measure flow rate
Rationale: Deadband is a small range where no corrective action
occurs, reducing wear on actuators.
14. Which type of flowmeter is suitable for corrosive fluids?
A. Mechanical turbine
B. Orifice plate
C. Magnetic flowmeter
