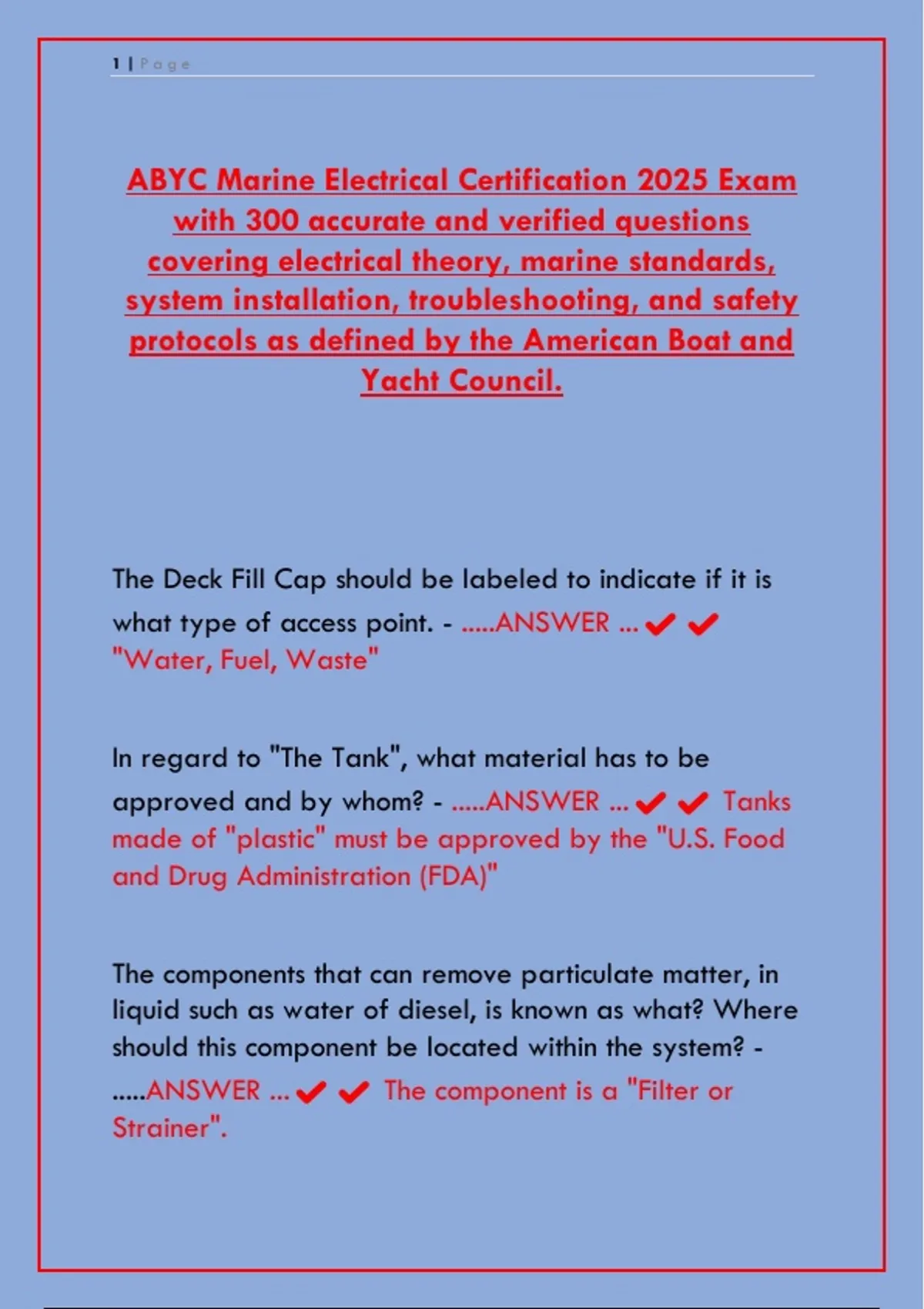

1|Page
ABYC Marine Electrical Certification 2025 Exam
with 300 accurate and verified questions
covering electrical theory, marine standards,
system installation, troubleshooting, and safety
protocols as defined by the American Boat and
Yacht Council.
The Deck Fill Cap should be labeled to indicate if it is
what type of access point. - .....ANSWER ...✔✔
"Water, Fuel, Waste"
In regard to "The Tank", what material has to be
approved and by whom? - .....ANSWER ...✔✔ Tanks
made of "plastic" must be approved by the "U.S. Food
and Drug Administration (FDA)"
The components that can remove particulate matter, in
liquid such as water of diesel, is known as what? Where
should this component be located within the system? -
.....ANSWER ...✔✔ The component is a "Filter or
Strainer".
,2|Page
This component should be located inline between the
tank and the pressure pump.
A pressure pump must be equipped with what? -
.....ANSWER ...✔✔ A "pressure shut off switch."
What device is intended to maintain a stable pressure
within the system and to minimize pump cycling on and
off? - .....ANSWER ...✔✔ "An Accumulator Tank"
How does an Accumulator Tank maintain constant PSI in
the system? - .....ANSWER ...✔✔ "Air is injected onto
one side of an internal rubber bladder"
In a system where high pressure city water is supplied
from the dock, what is used in the system to reduce the
pressure to a nominal working pressure? - .....ANSWER
...✔✔ "Pressure Regulator"
This device, similar to a diode in an electric circuit, only
allows fluid to flow in one direction. - .....ANSWER
...✔✔ "Check Valve"
,3|Page
A common noncompliant issues related to this Standard is
the use of _________ for potable water tanks -
.....ANSWER ...✔✔ "Aluminum"
Fiberglass Tanks may be used if the resin used is
____________ approved by the FDA - .....ANSWER
...✔✔ "Food Grade"
According to Materials: H-23.6.1:
All materials used in the construction of the water system
shall be capable of withstanding an ambient
temperature range between? - .....ANSWER ...✔✔ "-
40 to 140 degrees F or -40 to +60 degrees C"
(-40 degrees F and -40 degrees C are actually the
same)
According to Shore Water Connection: H-23.7.3.1.1:
If a shore water connection is provided, a pressure
reducing valve and check valve shall be installed to
reduce the pressure to not to exceed what psi" -
.....ANSWER ...✔✔ "80 PSI"
According to Storage Tank Deck Fill Inlet: H-23.7.5.1:
, 4|Page
The storage tank inlet shall be installed how far from the
Fuel tank fill and sewage pump-out fitting? -
.....ANSWER ...✔✔ "As far as practical"
According to Storage Tank Deck Fill Inlet: H-23.7.5.3:
What two markings shall be permanently marked on the
storage tanks? - .....ANSWER ...✔✔ "Water" or "the
ISO Graphical symbol"
According to Factor of Safety: H-23.7.2.1:
Components subject to pressure shall be designed with a
minimum safety factor of what" - .....ANSWER ...✔✔
"Two times the nominal working pressure"
According to Pressure Pumps H-23.7.4.1: No exposed
part of the pump shall attain a temperature in excess of
______F when operating in an ambient temperature of
______F - .....ANSWER ...✔✔ "In excess of 257
Degrees F"
"Ambient Temperature of 140 Degrees F"
According to Storage Tanks: H-23.7.6.2:
