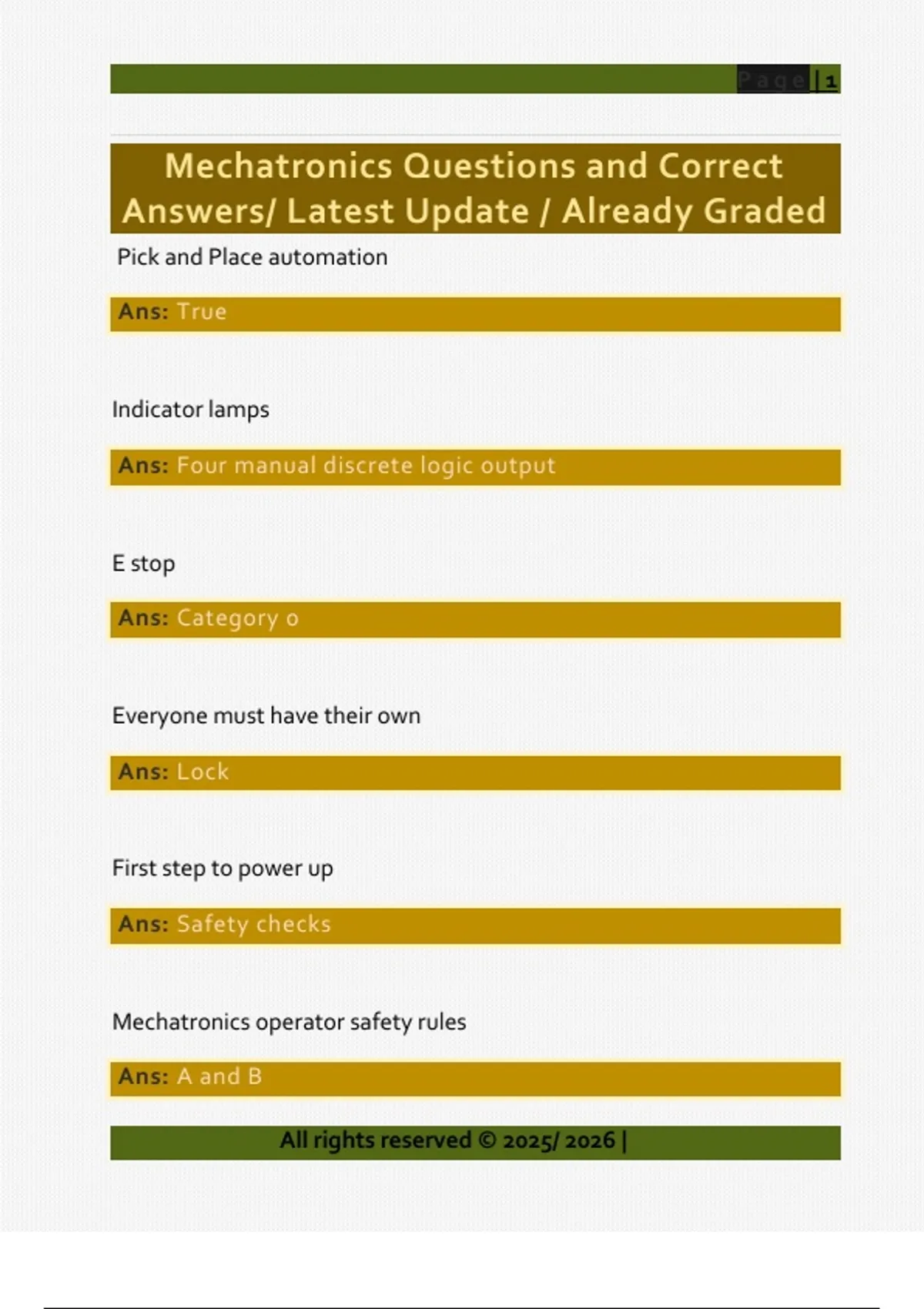

Page |1
Mechatronics Questions and Correct
Answers/ Latest Update / Already Graded
Pick and Place automation
Ans: True
Indicator lamps
Ans: Four manual discrete logic output
E stop
Ans: Category 0
Everyone must have their own
Ans: Lock
First step to power up
Ans: Safety checks
Mechatronics operator safety rules
Ans: A and B
All rights reserved © 2025/ 2026 |
, Page |2
Ans: Machine movements
Push button switches or manual discreet logic output devices
Ans: False
Limit switch
Ans: Electrical signal
Automated assembly stations
Ans: Assemble parts
Limit switches should be adjusted so the contacts open or close just at
the point
Ans: Where the actuator stop is located or slightly before
To adjust actuator speed using flow control valves turn the flow control
valve
Ans: Clockwise to decrease counterclockwise to increase
All rights reserved © 2025/ 2026 |
, Page |3
A motor that moves both forward and reverse requires
Ans: One for each direction forward motor starter and reverse
Mechanical stops can be used to accurately position a Pneumatics
cylinder
Ans: True
Digital I/O interface module connect a PLCs input and output to
terminal blocks on printed circuit boards via a special pre-wired cable
Ans: True
__________ mold is most often used during machine set up in
meetings to test various parts of the machine and make adjustments
Ans: Manual
Three types of electoral pneumatic valves are three positions being
returned to position to detented and ___________.
Ans: Two position spring return
All rights reserved © 2025/ 2026 |
