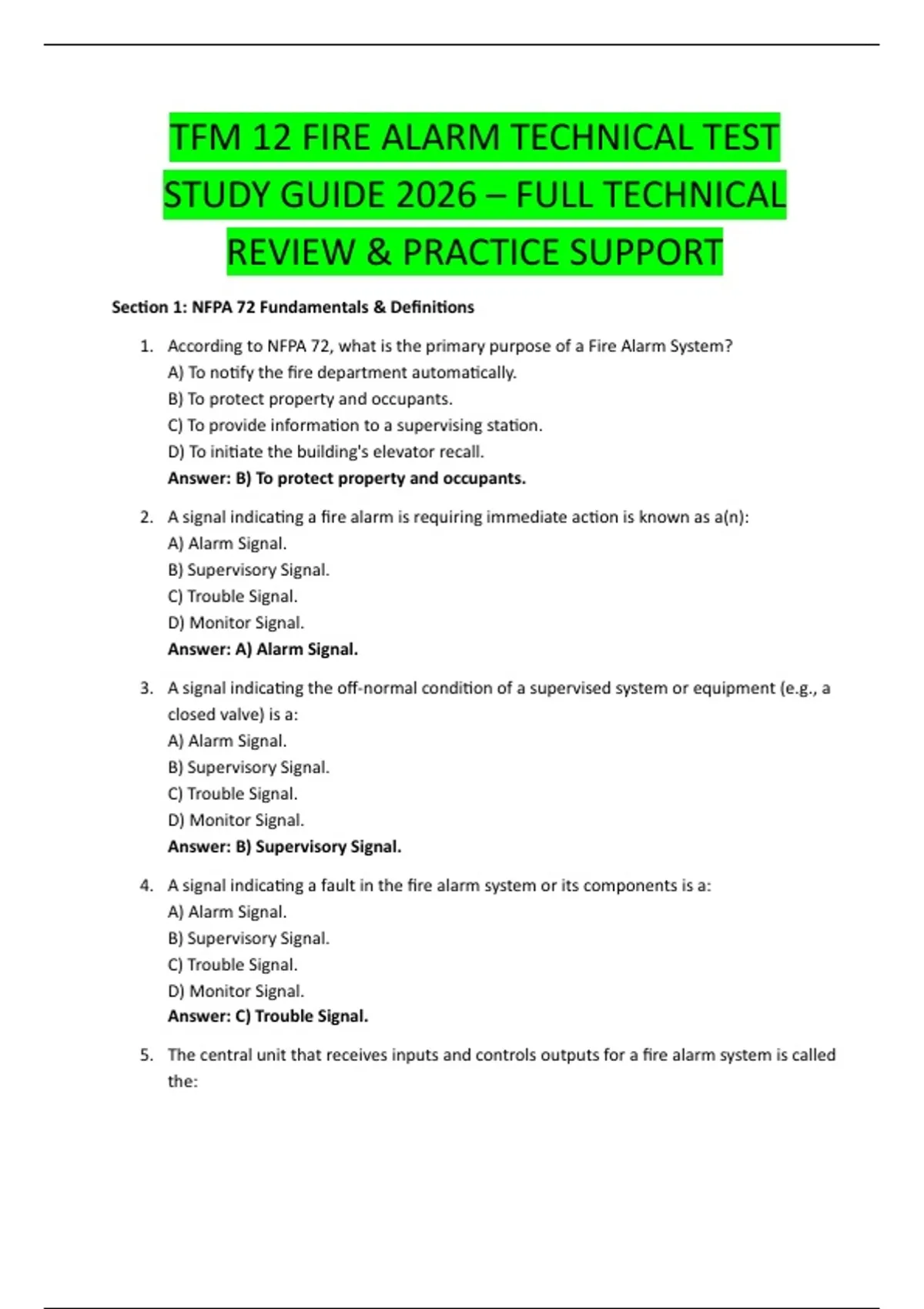

TFM 12 FIRE ALARM TECHNICAL TEST
STUDY GUIDE 2026 – FULL TECHNICAL
REVIEW & PRACTICE SUPPORT
Section 1: NFPA 72 Fundamentals & Definitions
1. According to NFPA 72, what is the primary purpose of a Fire Alarm System?
A) To notify the fire department automatically.
B) To protect property and occupants.
C) To provide information to a supervising station.
D) To initiate the building's elevator recall.
Answer: B) To protect property and occupants.
2. A signal indicating a fire alarm is requiring immediate action is known as a(n):
A) Alarm Signal.
B) Supervisory Signal.
C) Trouble Signal.
D) Monitor Signal.
Answer: A) Alarm Signal.
3. A signal indicating the off-normal condition of a supervised system or equipment (e.g., a
closed valve) is a:
A) Alarm Signal.
B) Supervisory Signal.
C) Trouble Signal.
D) Monitor Signal.
Answer: B) Supervisory Signal.
4. A signal indicating a fault in the fire alarm system or its components is a:
A) Alarm Signal.
B) Supervisory Signal.
C) Trouble Signal.
D) Monitor Signal.
Answer: C) Trouble Signal.
5. The central unit that receives inputs and controls outputs for a fire alarm system is called
the:
, A) Power Supply.
B) Control Panel (FACP).
C) Transponder.
D) Initiating Device Circuit.
Answer: B) Control Panel (FACP).
6. What does NAC stand for in fire alarm systems?
A) Notification Appliance Circuit.
B) National Alarm Code.
C) Non-Activated Circuit.
D) Notification Audio Controller.
Answer: A) Notification Appliance Circuit.
7. What is the maximum allowable delay for a fire alarm signal to reach the control unit
after activation of an initiating device?
A) 10 seconds.
B) 60 seconds.
C) 90 seconds.
D) 10 minutes.
Answer: A) 10 seconds.
8. The area on a floor protected by a single pull station is called a(n):
A) Zone.
B) Notification Area.
C) Pull Station Sector.
D) Alarm Sector.
Answer: A) Zone.
9. A system that connects the protected premises to a remote supervising station is known
as a:
A) Protected Premises System.
B) Supervising Station System.
C) Household System.
D) Public Emergency System.
Answer: B) Supervising Station System.
10. What type of fire alarm system does not automatically transmit a signal to a supervising
station but is monitored on-site?
A) Central Station System.
B) Proprietary System.
, C) Remote Station System.
D) Protected Premises (Local) System.
Answer: D) Protected Premises (Local) System.
Section 2: Initiating Devices
11. Which of the following is a non-restorable initiating device?
A) Ionization Smoke Detector.
B) Photoelectric Smoke Detector.
C) Fixed-Temperature Heat Detector.
D) Rate-of-Rise Heat Detector.
Answer: C) Fixed-Temperature Heat Detector.
12. A smoke detector that uses a small radioactive source to detect invisible combustion
particles is a(n):
A) Photoelectric Detector.
B) Ionization Detector.
C) Air Sampling Detector.
D) Beam Detector.
Answer: B) Ionization Detector.
13. A smoke detector best suited for detecting smoldering, smoky fires is a(n):
A) Photoelectric Detector.
B) Ionization Detector.
C) Air Sampling Detector.
D) Flame Detector.
Answer: A) Photoelectric Detector.
14. What is the primary function of a duct smoke detector?
A) Provide early warning for the entire building.
B) Shut down air handling units to prevent smoke spread.
C) Detect smoke in a specific room.
D) Test the airflow in a duct.
Answer: B) Shut down air handling units to prevent smoke spread.
15. The maximum spacing for smoke detectors on a smooth, level 10-foot ceiling is:
A) 10 feet.
B) 20 feet.
C) 30 feet.
, D) 40 feet.
Answer: C) 30 feet.
16. The maximum spacing for heat detectors on a smooth, level ceiling is:
A) 15 feet.
B) 30 feet.
C) 50 feet.
D) 70 feet.
Answer: C) 50 feet.
17. A manual pull station must be mounted at what height above the floor?
A) 36 inches.
B) 42 inches.
C) 48 inches.
D) 54 inches.
Answer: C) 48 inches.
18. A waterflow switch is what type of initiating device?
A) Supervisory.
B) Alarm.
C) Trouble.
D) Monitor.
Answer: B) Alarm.
19. A valve supervisory switch (tamper switch) is what type of initiating device?
A) Supervisory.
B) Alarm.
C) Trouble.
D) Monitor.
Answer: A) Supervisory.
20. What is the purpose of an end-of-line (EOL) resistor?
A) To provide power to the devices.
B) To supervise the wiring for opens and shorts.
C) To increase the sound level of horns.
D) To act as a backup battery.
Answer: B) To supervise the wiring for opens and shorts.
Section 3: Notification Appliances
