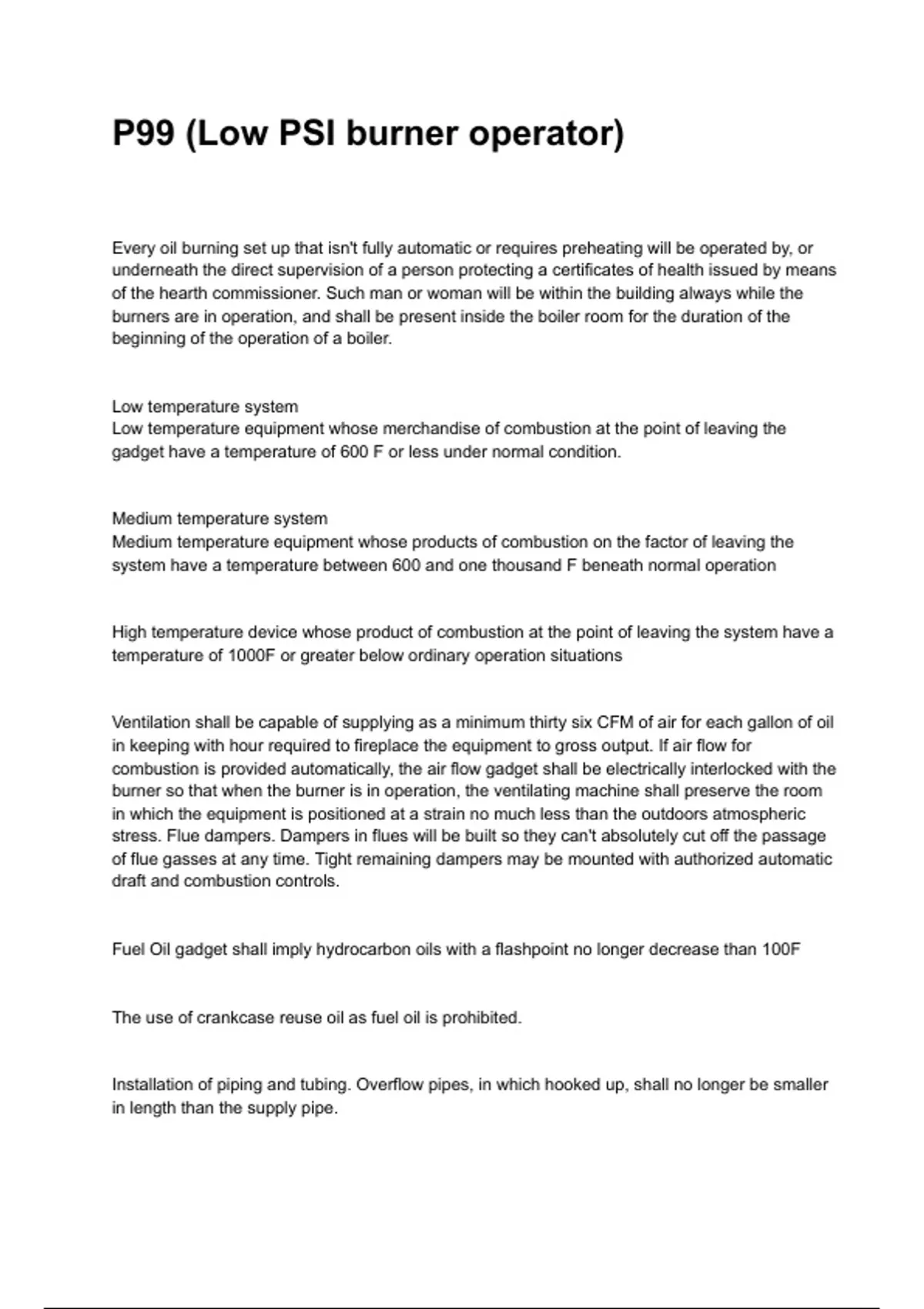

P99 (Low PSI burner operator)
Every oil burning set up that isn't fully automatic or requires preheating will be operated by, or
underneath the direct supervision of a person protecting a certificates of health issued by means
of the hearth commissioner. Such man or woman will be within the building always while the
burners are in operation, and shall be present inside the boiler room for the duration of the
beginning of the operation of a boiler.
Low temperature system
Low temperature equipment whose merchandise of combustion at the point of leaving the
gadget have a temperature of 600 F or less under normal condition.
Medium temperature system
Medium temperature equipment whose products of combustion on the factor of leaving the
system have a temperature between 600 and one thousand F beneath normal operation
High temperature device whose product of combustion at the point of leaving the system have a
temperature of 1000F or greater below ordinary operation situations
Ventilation shall be capable of supplying as a minimum thirty six CFM of air for each gallon of oil
in keeping with hour required to fireplace the equipment to gross output. If air flow for
combustion is provided automatically, the air flow gadget shall be electrically interlocked with the
burner so that when the burner is in operation, the ventilating machine shall preserve the room
in which the equipment is positioned at a strain no much less than the outdoors atmospheric
stress. Flue dampers. Dampers in flues will be built so they can't absolutely cut off the passage
of flue gasses at any time. Tight remaining dampers may be mounted with authorized automatic
draft and combustion controls.
Fuel Oil gadget shall imply hydrocarbon oils with a flashpoint no longer decrease than 100F
The use of crankcase reuse oil as fuel oil is prohibited.
Installation of piping and tubing. Overflow pipes, in which hooked up, shall no longer be smaller
in length than the supply pipe.
, Where a close off valve is installed in the discharge line from an oil pump, a remedy valve shall
be installed inside the discharge line among the pump and the primary shut off valve. A comfort
or stress regulating valve will be supplied in the oil piping system on the heater side of the close
off valves.
Heating coils in storage tanks. The heating of oil in storage tanks will be by using coils the
usage of low strain hot water or steam, or by using electric powered heater approved to be used
in oil garage tanks.
Where a single tank and a single burner are established, a close off valve will be required within
the supply line at the tank and another at the burner.
On storage tanks of sixty gallon or less potential used with operated by hand burners, such far
flung control may be established within the deliver strains between tank and burner.
Pressure in a storage tank for the cause of discharging oils will be prohibits
No. 6 oil... Temperature within the storage tank is generally maintained among 100F and 130F.
Preheated are used to heat the oil further before the oil enters the burners for combustion,
between 160F and 180F. The everyday oír strain for No. 6 is among 30 and 50 PSI.
Combustion is the chemical union of the oxygen inside the air with flamable elements in the fuel
oil (hydrogen and carbon) During combustion Carbon (approximately eighty five%) hydrogen
(14%)
The air that contacts the oil prior to its leaving the nozzle is known as primary air. The creation
of air from the blower or fan into the combustion chamber after the oil has left the nozzle is
referred to as secondary air.
Oil burners require about 2000 cubic feeet of air according to gallon of oil fed on.
Carbon monoxide is diagnosed because the give up product of incomplete combustion.
