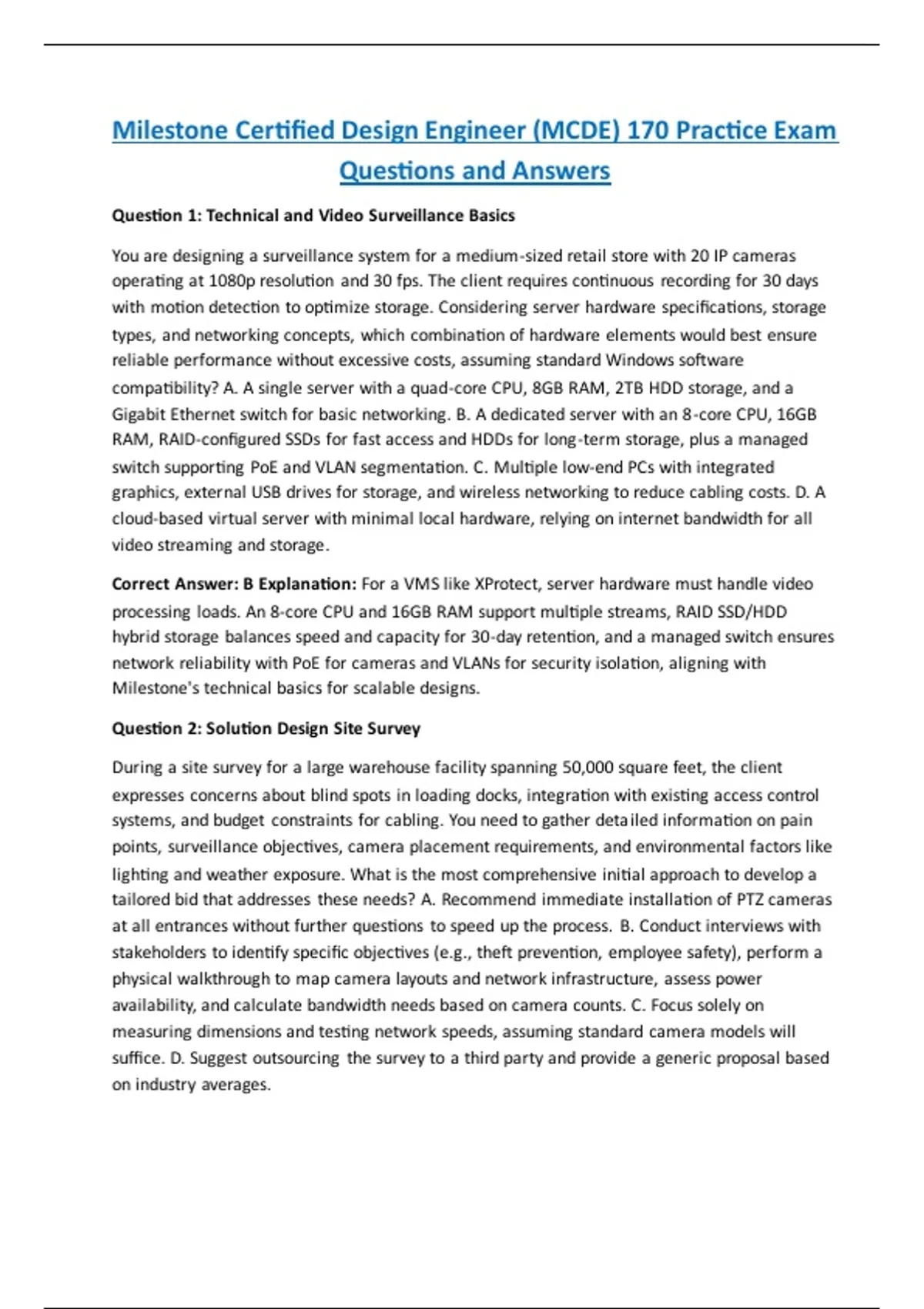

Milestone Certified Design Engineer (MCDE) 170 Practice Exam
Questions and Answers
Question 1: Technical and Video Surveillance Basics
You are designing a surveillance system for a medium-sized retail store with 20 IP cameras
operating at 1080p resolution and 30 fps. The client requires continuous recording for 30 days
with motion detection to optimize storage. Considering server hardware specifications, storage
types, and networking concepts, which combination of hardware elements would best ensure
reliable performance without excessive costs, assuming standard Windows software
compatibility? A. A single server with a quad-core CPU, 8GB RAM, 2TB HDD storage, and a
Gigabit Ethernet switch for basic networking. B. A dedicated server with an 8-core CPU, 16GB
RAM, RAID-configured SSDs for fast access and HDDs for long-term storage, plus a managed
switch supporting PoE and VLAN segmentation. C. Multiple low-end PCs with integrated
graphics, external USB drives for storage, and wireless networking to reduce cabling costs. D. A
cloud-based virtual server with minimal local hardware, relying on internet bandwidth for all
video streaming and storage.
Correct Answer: B Explanation: For a VMS like XProtect, server hardware must handle video
processing loads. An 8-core CPU and 16GB RAM support multiple streams, RAID SSD/HDD
hybrid storage balances speed and capacity for 30-day retention, and a managed switch ensures
network reliability with PoE for cameras and VLANs for security isolation, aligning with
Milestone's technical basics for scalable designs.
Question 2: Solution Design Site Survey
During a site survey for a large warehouse facility spanning 50,000 square feet, the client
expresses concerns about blind spots in loading docks, integration with existing access control
systems, and budget constraints for cabling. You need to gather detailed information on pain
points, surveillance objectives, camera placement requirements, and environmental factors like
lighting and weather exposure. What is the most comprehensive initial approach to develop a
tailored bid that addresses these needs? A. Recommend immediate installation of PTZ cameras
at all entrances without further questions to speed up the process. B. Conduct interviews with
stakeholders to identify specific objectives (e.g., theft prevention, employee safety), perform a
physical walkthrough to map camera layouts and network infrastructure, assess power
availability, and calculate bandwidth needs based on camera counts. C. Focus solely on
measuring dimensions and testing network speeds, assuming standard camera models will
suffice. D. Suggest outsourcing the survey to a third party and provide a generic proposal based
on industry averages.
,Correct Answer.: B Explanation: A thorough site survey involves stakeholder interviews for
objectives and pain points, on-site assessments for camera placement and infrastructure, and
calculations for technical requirements, ensuring the design meets client needs as per
Milestone's solution design guidelines.
Question 3: Milestone System Architecture
In a multi-site enterprise deployment for a chain of 10 stores, each with 15 cameras, you must
design a system where the central headquarters can monitor all locations while allowing local
autonomy. Considering Milestone's architecture, including the Management Server, Recording
Servers, Event Server, and client applications, which configuration best supports centralized
management, failover capabilities, and efficient video streaming? A. A single Management
Server at headquarters with all Recording Servers co-located, ignoring local site needs. B. A
federated architecture with a central Management Server linking independent XProtect systems
at each site, incorporating failover Recording Servers and an Event Server for rule-based
notifications. C. Separate standalone systems per site without interconnection, using only local
Smart Clients for viewing. D. Cloud-hosted components without on-premise hardware to
simplify architecture.
Correct Answer.: B Explanation: Milestone's federated architecture allows multiple systems to
be managed centrally via the Management Server, with local Recording Servers for autonomy,
failover for reliability, and the Event Server for handling events, as detailed in the Milestone
Architecture Guide.
Question 4: XProtect Products and Extensions
A client in the transportation sector requires a surveillance solution for 50 buses, including
license plate recognition for fleet management and integration with GPS systems. Evaluating
XProtect editions and extensions, which product combination would optimally address
unlimited camera support, advanced analytics, and third-party integrations while scaling for
future expansions? A. XProtect Essential+ with no extensions, limited to basic recording. B.
XProtect Professional+ with the LPR extension for plate recognition and API integrations for GPS.
C. XProtect Expert with LPR, Access Control extensions, and built-in analytics for enterprise-level
features. D. XProtect Corporate without extensions, focusing only on multi-site management.
Correct Answer.: C Explanation: XProtect Expert supports unlimited cameras, advanced
analytics like LPR, and extensive integrations, making it suitable for complex scenarios as per
Milestone's product documentation.
Question 5: Milestone Design Features
,For a high-security government building, the design must include redundant recording to
prevent data loss during server failures, privacy masking for sensitive areas, and automated
alerts for intrusions. Based on Milestone's design features, which set of capabilities should be
prioritized in the installation type selection to achieve high availability and compliance? A. Basic
single-server setup with manual backups and no masking. B. Distributed installation with
Recording Server Failover, Privacy Masking rules, and the Alarm Manager for event handling. C.
Edge storage only on cameras, without central features. D. Mobile-only access without on-site
redundancy.
Correct Answer.: B Explanation: Milestone's design features like Failover Recording ensure
continuity, Privacy Masking complies with regulations, and Alarm Manager automates
responses, ideal for high-security designs as in the VMS Design Guide.
Question 6: Smart Client Workstations
An operations center with 10 operators needs workstations to handle simultaneous viewing of
64 high-resolution video streams, incident investigations, and map-based navigation.
Considering workstation specifications for the XProtect Smart Client, what hardware
recommendations would best support hardware-accelerated decoding, multi-monitor setups,
and performance without lag? A. Basic laptops with integrated graphics and 4GB RAM. B. High-
end desktops with dedicated GPUs (e.g., NVIDIA), 32GB RAM, multi-core CPUs, and SSD storage
for quick sequence loading. C. Tablets for mobility, relying on cloud processing. D. Shared thin
clients with minimal local resources.
Correct Answer.: B Explanation: Smart Client requires robust GPUs for decoding multiple
streams, ample RAM and CPU for multitasking, and fast storage, as outlined in the XProtect
Smart Client Guide.
Question 7: Milestone Licensing and Care
A client deploying 100 cameras across three sites wants flexible licensing that allows for easy
expansions, software updates, and priority technical support. Evaluating Milestone's options,
which licensing model and care subscription would best fit, considering device channels, base
licenses, and maintenance benefits? A. Perpetual licenses without care, locking in current
features. B. Subscription-based licenses with Care Plus for updates, support, and hardware
replacement options. C. Free Essential+ licenses, limited to 8 devices. D. One-time licenses with
no ongoing support.
Correct Answer.: B Explanation: Subscription licensing scales easily, and Care Plus provides
updates and support, as per the Milestone Licensing and Care Guides.
Question 8: Cybersecurity and IT Best Practices
, In designing a surveillance network for a hospital, you must address vulnerabilities like
unauthorized access and data breaches. Common issues include weak passwords and
unpatched firmware. What best practices should be implemented to harden the system,
ensuring compliance with healthcare regulations? A. Use default credentials and expose ports
to the internet. B. Enable MFA, implement VLAN segmentation, conduct regular vulnerability
scans, and apply firmware updates via a patch management policy. C. Rely solely on physical
security without digital measures. D. Disable encryption to improve performance.
Correct Answer.: B Explanation: Hardening practices like MFA, network isolation, and updates
mitigate risks, as recommended in Milestone's System Hardening Guide.
Question 9: Milestone Partner Tools and Resources
As a partner designing a proposal for a city-wide surveillance project with 200 cameras, you
need to calculate storage, bandwidth, and costs accurately. Which tool and resources from the
Milestone Partner Portal should be utilized to create a professional bid? A. Generic
spreadsheets without Milestone-specific data. B. Milestone Solution Designer for hardware
estimations, combined with the VMS Design Guide and partner pricing tools. C. Third-party
calculators unrelated to Milestone. D. Manual estimates based on assumptions.
Correct Answer.: B Explanation: The Solution Designer tool provides precise calculations,
supported by portal resources for bids.
Question 10: Technical and Video Surveillance Basics
For an outdoor parking lot with variable lighting, select camera types and layouts considering
field of view, resolution, and environmental factors to minimize blind spots and ensure clear
footage during night hours. Which design approach is optimal? A. Fixed low-res cameras
without IR. B. Mix of PTZ and fixed cameras with WDR and IR illuminators, positioned for
overlapping coverage. C. Analog cameras for cost savings. D. Single omnidirectional camera per
lot.
Correct Answer.: B Explanation: PTZ for adjustability, WDR/IR for lighting, overlapping for
coverage, per basics.
Question 11: Solution Design Site Survey
In surveying a school campus, identify objectives like student safety and vandalism prevention,
assess cabling feasibility, and budget for wireless options. What survey steps ensure a compliant
design? A. Skip stakeholder input. B. Interviews, risk assessments, infrastructure mapping,
regulatory checks. C. Focus on aesthetics only. D. Use pre-made templates.
