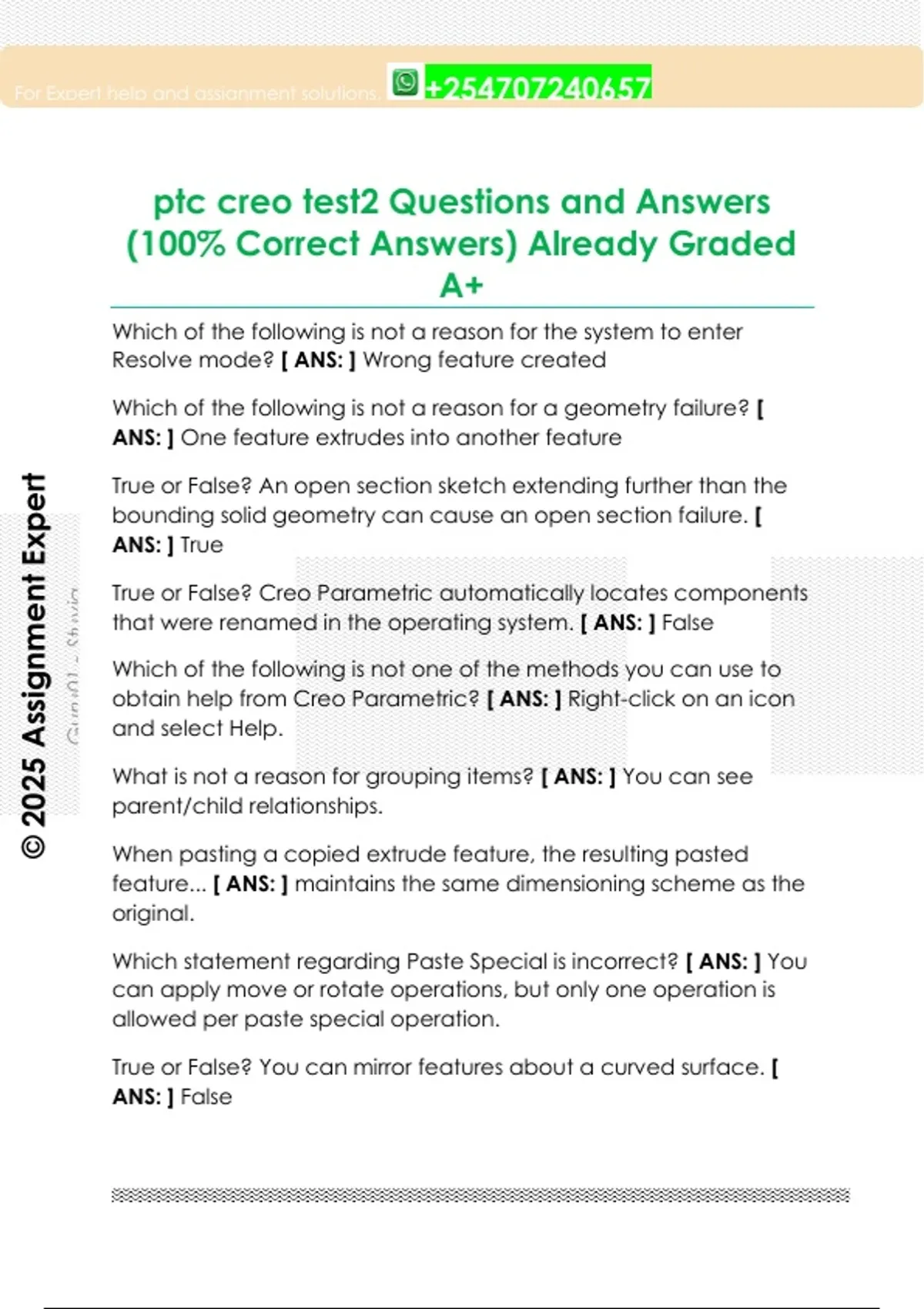

ptc creo test2 Questions and Answers
(100% Correct Answers) Already Graded
A+
Which of the following is not a reason for the system to enter
Resolve mode? [ ANS: ] Wrong feature created
Which of the following is not a reason for a geometry failure? [
ANS: ] One feature extrudes into another feature
True or False? An open section sketch extending further than the
© 2025 Assignment Expert
bounding solid geometry can cause an open section failure. [
ANS: ] True
True or False? Creo Parametric automatically locates components
Guru01 - Stuvia
that were renamed in the operating system. [ ANS: ] False
Which of the following is not one of the methods you can use to
obtain help from Creo Parametric? [ ANS: ] Right-click on an icon
and select Help.
What is not a reason for grouping items? [ ANS: ] You can see
parent/child relationships.
When pasting a copied extrude feature, the resulting pasted
feature... [ ANS: ] maintains the same dimensioning scheme as the
original.
Which statement regarding Paste Special is incorrect? [ ANS: ] You
can apply move or rotate operations, but only one operation is
allowed per paste special operation.
True or False? You can mirror features about a curved surface. [
ANS: ] False
, 2
For Expert help and assignment solutions, +254707240657
True or False? One of the biggest benefits to mirroring all features
in a part is that it enables you to create one half of a model and
then mirror it to complete the entire part. [ ANS: ] True
When creating a direction pattern, which of the following
references cannot be selected to denote the direction? [ ANS: ]
Curved surface
True or False? It is not necessary to specify a reference for the
second direction of a direction pattern. You can specify that the
second direction be normal to the first direction. [ ANS: ] False
True or False? An Axis pattern enables you to create patterns in a
© 2025 Assignment Expert
linear direction [ ANS: ] False
Which option enables you to equally space pattern members
about the axis reference? [ ANS: ] Set Angular Extent
Guru01 - Stuvia
If a bolt is reference patterned into a pattern of holes, and the
number of hole pattern members is increased by two, what
happens to the reference patterned bolt? [ ANS: ] The bolt
reference pattern updates by two.
True or False? The main difference between an exact global
interference analysis and a quick global interference analysis is
that the exact analysis calculates the volume of interference
between interfering components. [ ANS: ] True
Which of the following is FALSE regarding the Model Properties
dialog box? [ ANS: ] You can change the saved file location of the
model.
Which measurement type is invalid? [ ANS: ] Circumference
True or False? When specifying units for a new model, you can
create custom unit sets if desired. [ ANS: ] True
Which of the following are valid references to measure length? [
ANS: ] All of the above... (Edge
