1 | Page

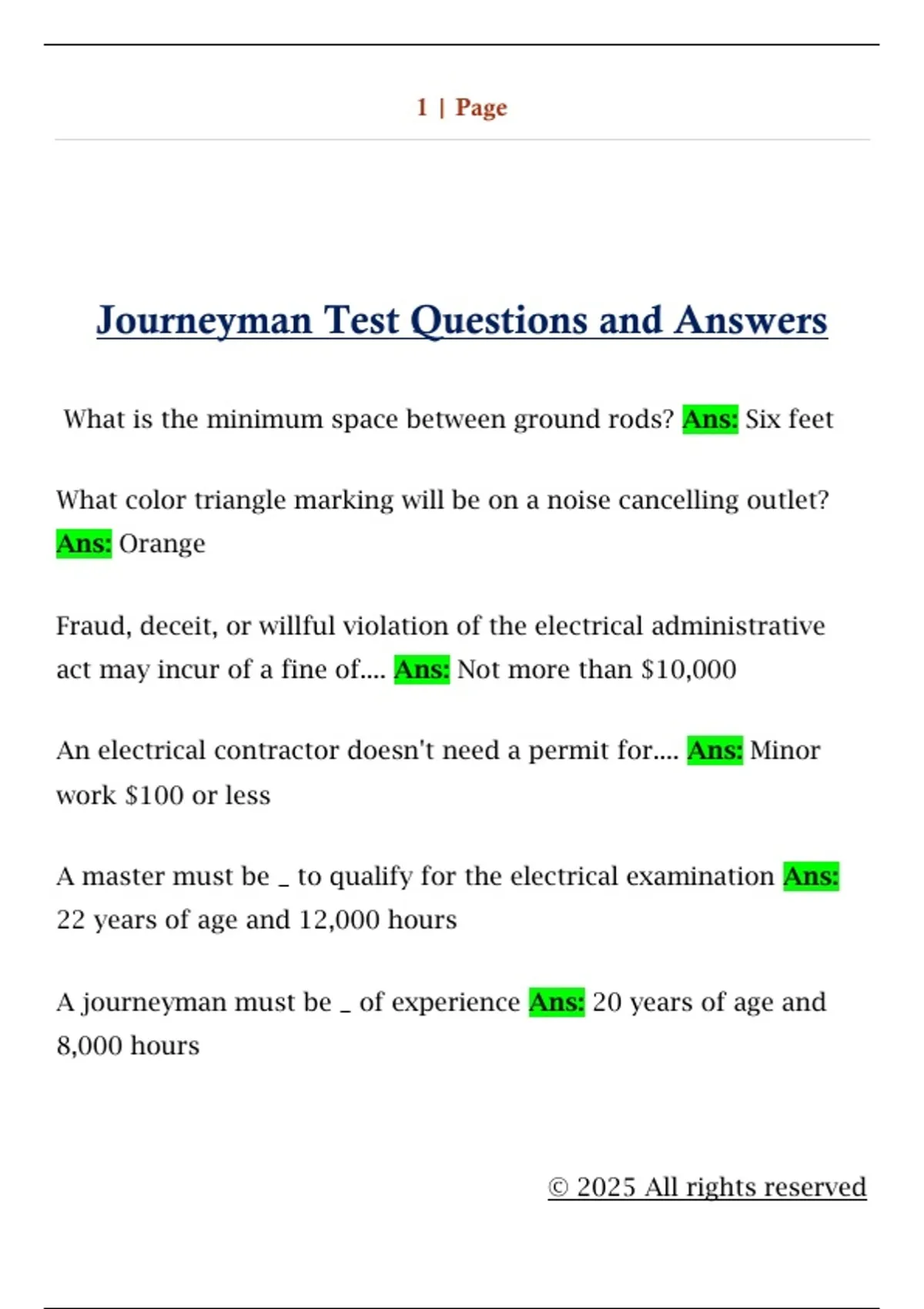

Journeyman Test Questions and Answers
What is the minimum space between ground rods? Ans: Six feet
What color triangle marking will be on a noise cancelling outlet?
Ans: Orange
Fraud, deceit, or willful violation of the electrical administrative
act may incur of a fine of.... Ans: Not more than $10,000
An electrical contractor doesn't need a permit for.... Ans: Minor
work $100 or less
A master must be _ to qualify for the electrical examination Ans:
22 years of age and 12,000 hours
A journeyman must be _ of experience Ans: 20 years of age and
8,000 hours
© 2025 All rights reserved
, 2 | Page
Bonding to a pool grid has to have what type of devices Ans:
Pressure devices
Convenience outlets must be GFCI and located between _ and _ of
the inside of the wall of a pool Ans: 6ft and 20ft
Type RTRC shall be permitted to be unsupported where the
raceway is not more than __ long and remains in unbroken lengths
and terminated in an outlet box Ans: 3 feet
Receptacle outlets shall be installed so that no point along the wall
line of a kitchen countertop is more than _ inches measured
horizontally from a receptacle outlet in that space Ans: 24 inches
What is the minimum size THW conductor that can be used to
supply a 200A single phase commercial building Ans: 3/0 copper
What is the minimum rating for a laundry circuit in a single family
dwelling Ans: 20 AMP 1500 watts
© 2025 All rights reserved
, 3 | Page
What is the expansion rate of 250 feet of pvc that goes from a
temperature change of -20°F to 80°F Ans: 10.15
For photovoltaic systems, what cannot be connected to the supply
side Ans: A non-overcurrent light/device
Pool pump receptacles must be at least _ feet from the inside of a
pool Ans: 10 feet
A boat hoist receptacle shall be mounted not less than ________
above the deck surface of the pier and not below the electrical
datum plane on a fixed pier Ans: 12 inches
When a metal enclosure is required to protect the grounding
electrode conductor, the enclosure has to be bonded to what at
both ends? Ans: Grounding electrode conductor
Where a portable optional standby source is used as a ________ it
shall be grounded to a grounding electrode Ans: Separately
derived system
© 2025 All rights reserved
