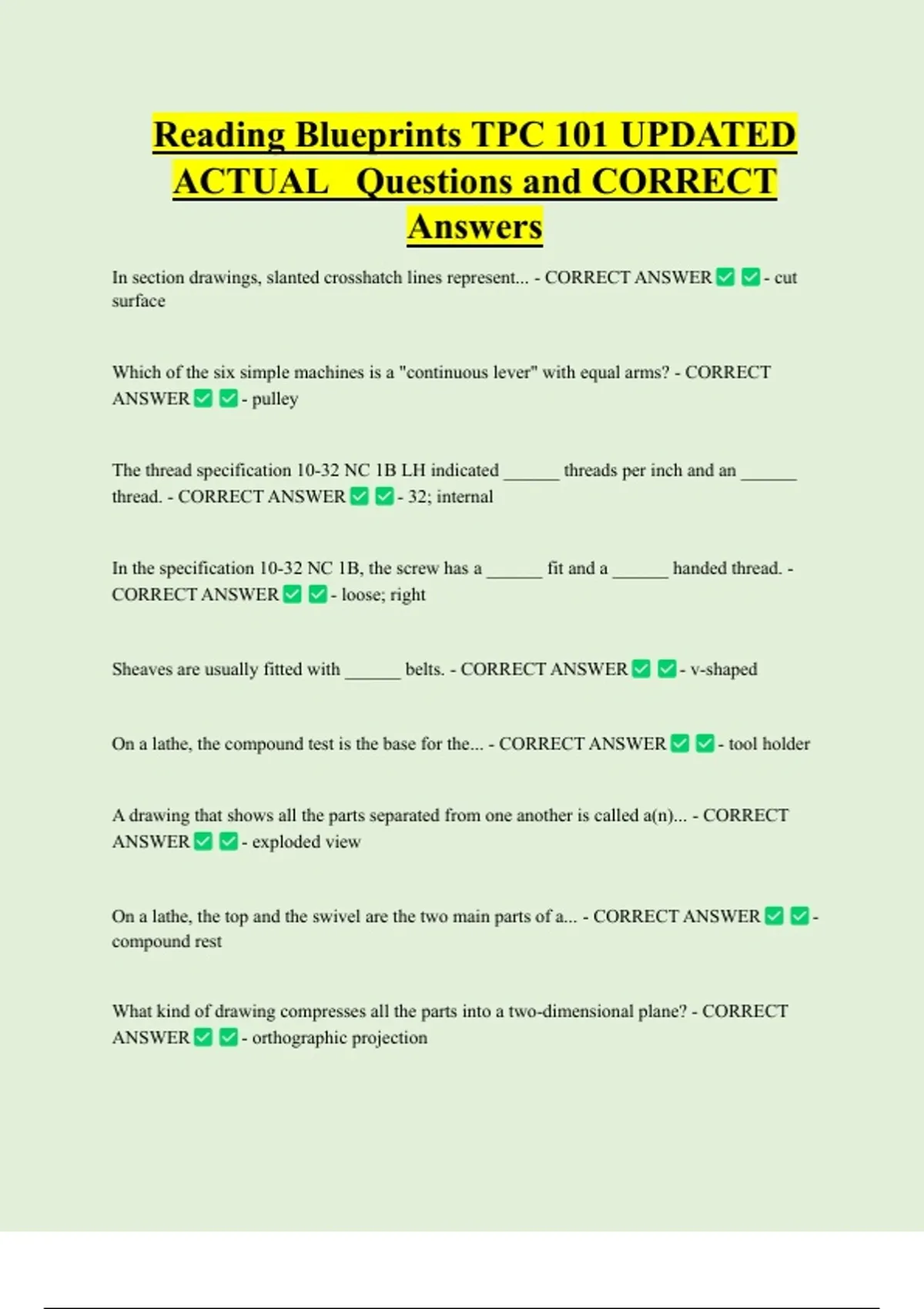

Reading Blueprints TPC 101 UPDATED
ACTUAL Questions and CORRECT
Answers
In section drawings, slanted crosshatch lines represent... - CORRECT ANSWER - cut
surface
Which of the six simple machines is a "continuous lever" with equal arms? - CORRECT
ANSWER - pulley
The thread specification 10-32 NC 1B LH indicated ______ threads per inch and an ______
thread. - CORRECT ANSWER - 32; internal
In the specification 10-32 NC 1B, the screw has a ______ fit and a ______ handed thread. -
CORRECT ANSWER - loose; right
Sheaves are usually fitted with ______ belts. - CORRECT ANSWER - v-shaped
On a lathe, the compound test is the base for the... - CORRECT ANSWER - tool holder
A drawing that shows all the parts separated from one another is called a(n)... - CORRECT
ANSWER - exploded view
On a lathe, the top and the swivel are the two main parts of a... - CORRECT ANSWER -
compound rest
What kind of drawing compresses all the parts into a two-dimensional plane? - CORRECT
ANSWER - orthographic projection
