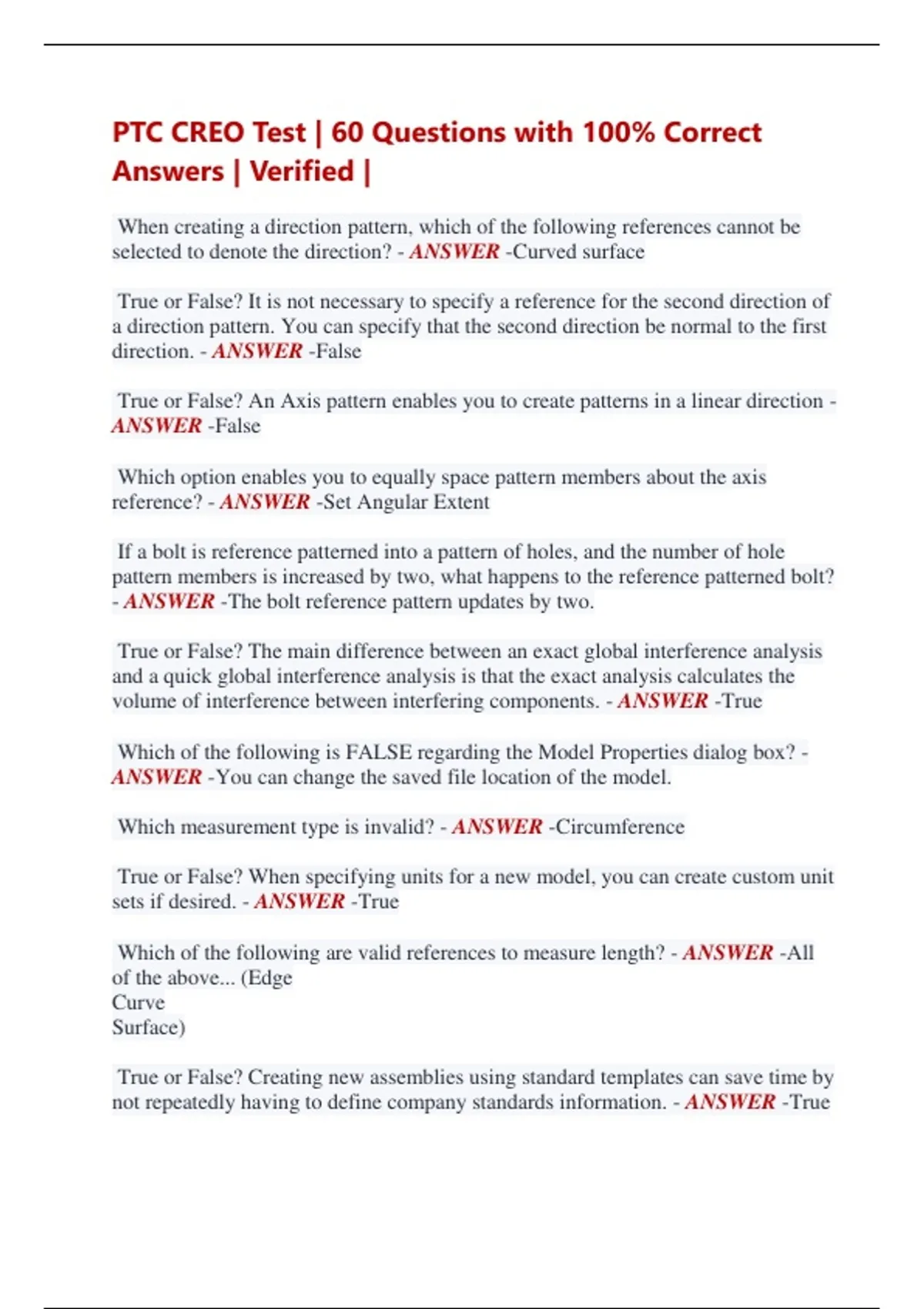

PTC CREO Test | 60 Questions with 100% Correct
Answers | Verified |
When creating a direction pattern, which of the following references cannot be
selected to denote the direction? - ANSWER -Curved surface
True or False? It is not necessary to specify a reference for the second direction of
a direction pattern. You can specify that the second direction be normal to the first
direction. - ANSWER -False
True or False? An Axis pattern enables you to create patterns in a linear direction -
ANSWER -False
Which option enables you to equally space pattern members about the axis
reference? - ANSWER -Set Angular Extent
If a bolt is reference patterned into a pattern of holes, and the number of hole
pattern members is increased by two, what happens to the reference patterned bolt?
- ANSWER -The bolt reference pattern updates by two.
True or False? The main difference between an exact global interference analysis
and a quick global interference analysis is that the exact analysis calculates the
volume of interference between interfering components. - ANSWER -True
Which of the following is FALSE regarding the Model Properties dialog box? -
ANSWER -You can change the saved file location of the model.
Which measurement type is invalid? - ANSWER -Circumference
True or False? When specifying units for a new model, you can create custom unit
sets if desired. - ANSWER -True
Which of the following are valid references to measure length? - ANSWER -All
of the above... (Edge
Curve
Surface)
True or False? Creating new assemblies using standard templates can save time by
not repeatedly having to define company standards information. - ANSWER -True
, When is the Default constraint most commonly used? - ANSWER -Assembling
the first component
Reorienting a component with respect to the rest of the assembly uses which of the
following keys on your keyboard in conjunction with the mouse? - ANSWER -
Both B and C CTRL,
ALT
True or False? You cannot specify datum axes as references when creating a
Coincident constraint. - ANSWER -False
True or False? Typically, the Angle Offset constraint is the first constraint created
when assembling a component. - ANSWER -False
Which of the following is an example of an assembly joint connection? -
ANSWER -A, C, and D slider pin and cylinder
True or False? Slider connections are used to enable rotation about a single axis. -
ANSWER -false
True or False? Pin connections are used to enable rotation along a single axis. -
ANSWER -True
The Cylinder connection is... - ANSWER -best used in situations where you do
not want to over constrain a component.
When dragging assembly components, how are Snapshots used? - ANSWER -To
return assembly components to a particular location.
True or False? Offset lines automatically update to changes in position made to
the exploded components they reference. - ANSWER -True
When creating an explode state, how can you select multiple components to
move? - ANSWER -B and C. Press CTRL and select multiple components. Select
the Move with Children option.
Which statement best describes the result of enabling the Follow Explode
Sequence option when animating explode states? - ANSWER -The components
