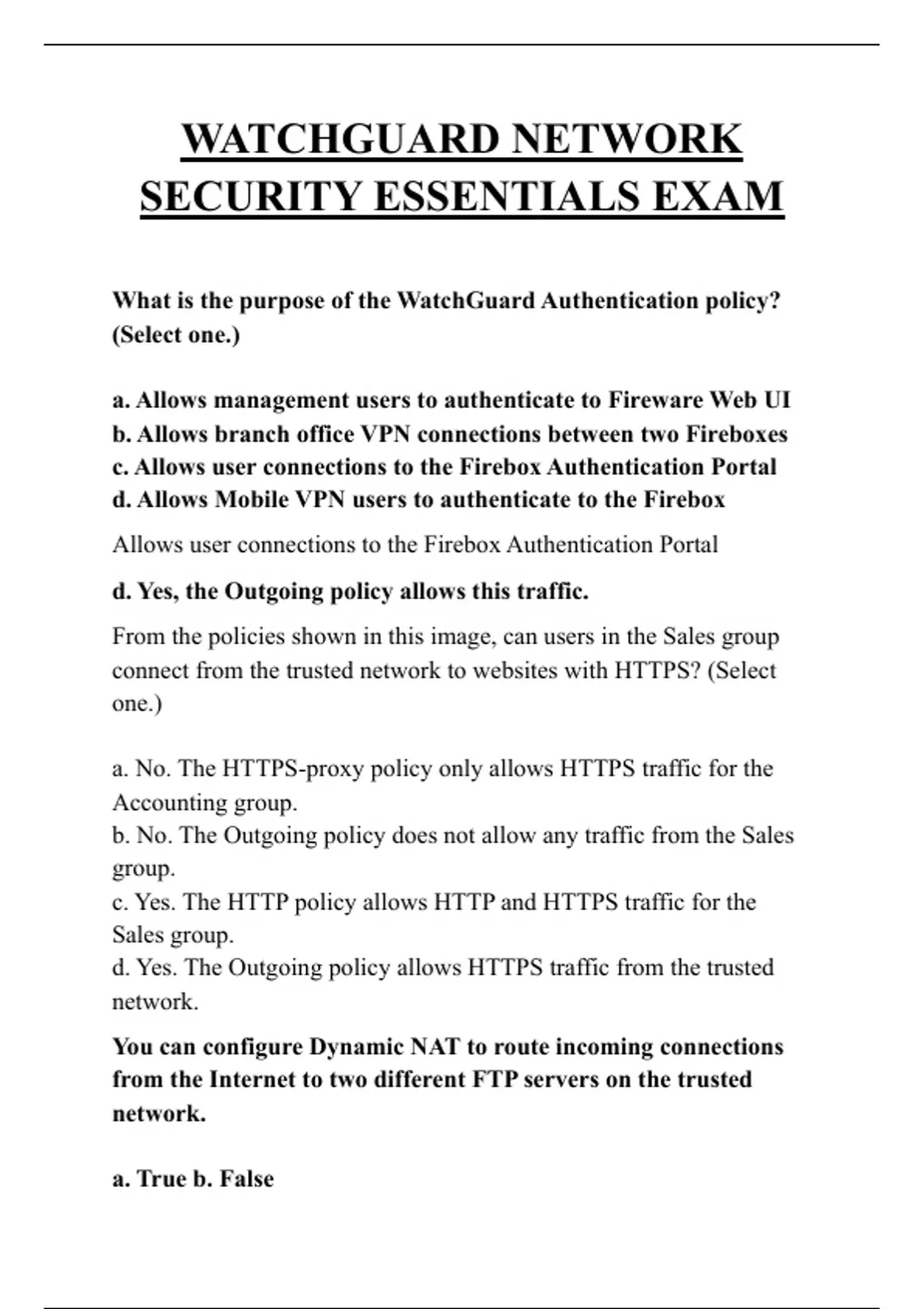

WATCHGUARD NETWORK
SECURITY ESSENTIALS EXAM
What is the purpose of the WatchGuard Authentication policy?
(Select one.)
a. Allows management users to authenticate to Fireware Web UI
b. Allows branch office VPN connections between two Fireboxes
c. Allows user connections to the Firebox Authentication Portal
d. Allows Mobile VPN users to authenticate to the Firebox
Allows user connections to the Firebox Authentication Portal
d. Yes, the Outgoing policy allows this traffic.
From the policies shown in this image, can users in the Sales group
connect from the trusted network to websites with HTTPS? (Select
one.)
a. No. The HTTPS-proxy policy only allows HTTPS traffic for the
Accounting group.
b. No. The Outgoing policy does not allow any traffic from the Sales
group.
c. Yes. The HTTP policy allows HTTP and HTTPS traffic for the
Sales group.
d. Yes. The Outgoing policy allows HTTPS traffic from the trusted
network.
You can configure Dynamic NAT to route incoming connections
from the Internet to two different FTP servers on the trusted
network.
a. True b. False
,b. False. Dynamic NAT applies only to outgoing connections.
What port and protocol is used by DNS? (Select one.)
a. UDP/67
b. UDP/53
c. TCP/20
d. TCP/25
UDP/53
While troubleshooting a branch office VPN tunnel, you see the log
message below. What settings could you modify in the local device
configuration to resolve the configuration issue?
(Select one.) iked (203.0.113.50<->203.0.113.20)IKE phase-2
negotiation from 203.0.113.50:500 to 203.0.113.20:500 failed.
Tunnel='tunnel.1' Reason=Received proposal without PFS,
Expecting PFS enabled id="0205-0002" Debug
a. BOVPN Gateway settings
b. BOVPN Tunnel settings
c. BOVPN over TLS settings
d. IKEv2 Shared settings
BOVPN Tunnel settings.
b and d.
You can configure a static route to the specific server, or to the
entire subnet it is on. In either case, the gateway is the IP address
of the router that connects to that network, and the gateway must
be reachable by the firewall.
Based on this network diagram, which of these static routes could you
add to the Firebox to enable the Firebox to route traffic from clients
on the 192.168.10.0/24 subnet to a server at 10.0.20.80? (Select two.)
,a. Route to 10.0.20.0, Gateway 10.0.2.1
b. Route to 10.0.20.80, Gateway 192.168.10.5
c. Route to 192.168.10.5, Gateway 192.168.10.1
d. Route to 10.0.20.0/24, Gateway 192.168.10.5
You can use the TCP-UDP proxy to control Web, FTP, and SIP
traffic on ports other than 80, 21, and 5060.
a. True b. False
a. True. The TCP-UDP proxy applies to TCP and UDP traffic on any
TCP or UDP port.
Which authentication servers can be used with any type of Mobile
VPN (Select two.)
a. Firebox-DB
b. Active Directory
c. RADIUS
d. LDAP
Firebox-DB RADIUS
.Do you need a static route on Floor 1 and Floor 2
There are two networks one on floor 1 subnet 192.168.3.0/24 and one
network on floor 2 192.168.2.0/24.
How can people on floor 1 reach a server on floor 2.
Do you need a static route on Floor 1
No changes need to be made networks on the same subnet.
Do you need a static route on Floor 2
Do you need a static route on Floor 1 and Floor 2
.
, SDWAN fails over under what conditions
Is it
Latency
Jitter
Loss
.
What NAT do you use when coming from a private network and
trying to connection to servers on the internet?
1:1 Nat
NAT loopback
Dynamic NAT
Static NAT
.
If a connection fails to fail over and your boss wants you tell him why
it didn't failover?
SDWAN ping policy wasn't setup
Link monitor failed
Link monitor was set to gradually fall back
Link Monitor was set tp ping the default gateway but the outage
happened further upstream
Basically know exactly how link monitor works
There's a very tricky question about this on the exam.
.yes
can advanced setting override an outbound global dynamic NAT
policy?
