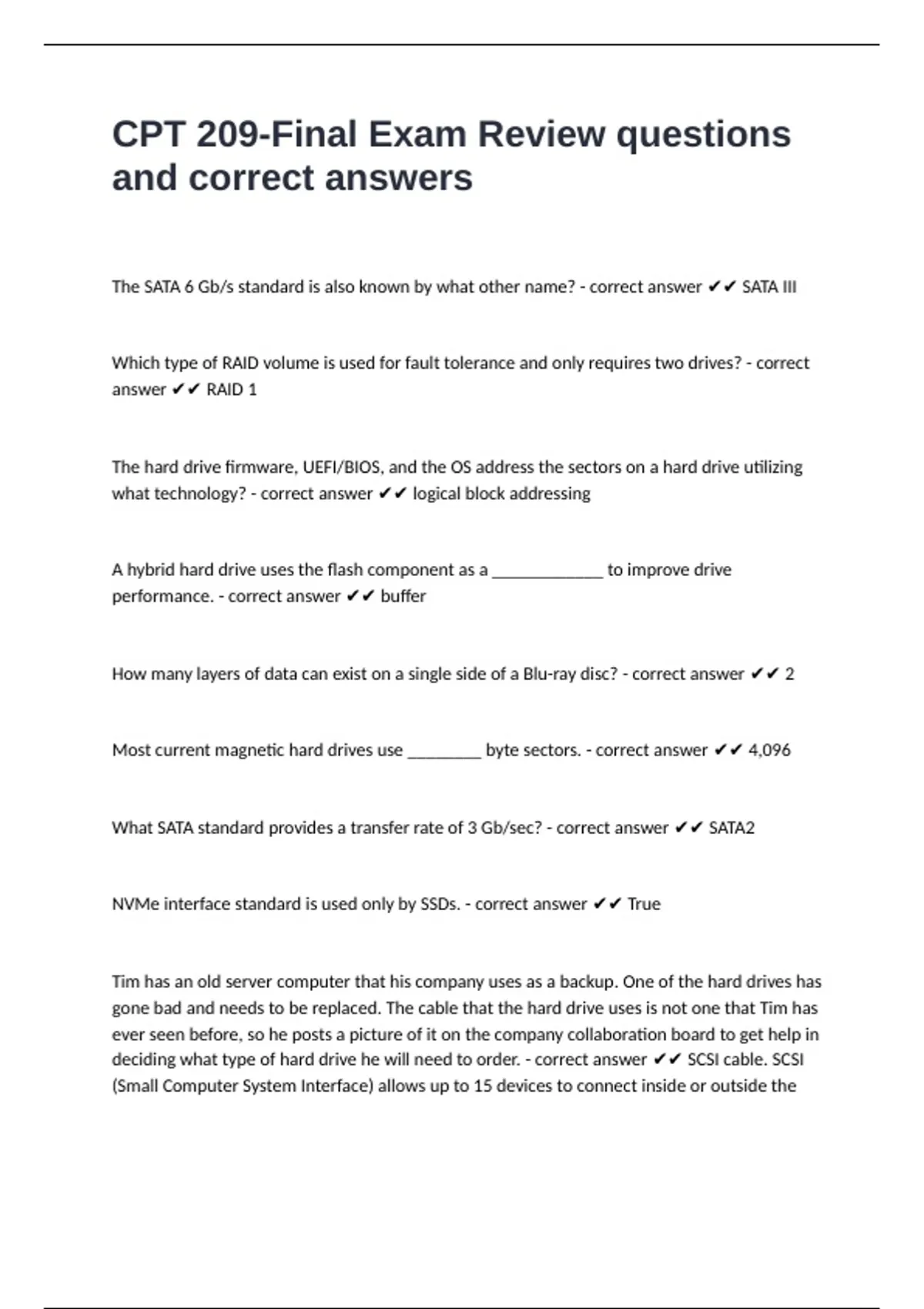

CPT 209-Final Exam Review questions
and correct answers
The SATA 6 Gb/s standard is also known by what other name? - correct answer ✔✔ SATA III
Which type of RAID volume is used for fault tolerance and only requires two drives? - correct
answer ✔✔ RAID 1
The hard drive firmware, UEFI/BIOS, and the OS address the sectors on a hard drive utilizing
what technology? - correct answer ✔✔ logical block addressing
A hybrid hard drive uses the flash component as a ____________ to improve drive
performance. - correct answer ✔✔ buffer
How many layers of data can exist on a single side of a Blu-ray disc? - correct answer ✔✔ 2
Most current magnetic hard drives use ________ byte sectors. - correct answer ✔✔ 4,096
What SATA standard provides a transfer rate of 3 Gb/sec? - correct answer ✔✔ SATA2
NVMe interface standard is used only by SSDs. - correct answer ✔✔ True
Tim has an old server computer that his company uses as a backup. One of the hard drives has
gone bad and needs to be replaced. The cable that the hard drive uses is not one that Tim has
ever seen before, so he posts a picture of it on the company collaboration board to get help in
deciding what type of hard drive he will need to order. - correct answer ✔✔ SCSI cable. SCSI
(Small Computer System Interface) allows up to 15 devices to connect inside or outside the
,computer. Each device has a priority number that tells the controller who has priority on the
line. SCSI hard drives are used primarily on server computers.
Magnetic hard drive read/write heads are controlled by an _____________, which moves the
read/write heads across the disk surfaces in unison. - correct answer ✔✔ actuator
Scenario:
You recently installed a new RAID controller card in a PCIe expansion slot on your computer.
After setting up the controller, you transfer data from the backup you created over to the
computer.
When you finish the setup, you turn the computer off and return it to its normal location.
When you turn the computer on, you immediately receive the error message, "RAID not found."
What might be the problem? - correct answer ✔✔ Expansion card failed or became unseated.
In an SSD drive, flash memory is stored on
___________________________________________________ (EEPROM) chips inside the drive
housing. - correct answer ✔✔ Electronically Erasable Programmable Read Only Memory
Keion works as a freelancer creating websites and designing logos for clients.
He recently had a hard drive failure and lost work for a client, and he would like to prevent the
same type problem from happening again.
Keion does not want to rely on a backup but would like a way to ensure that his data is safe on
his computer.
You recommend that he create a RAID array that will duplicate his work onto two disks.
What RAID configuration should you recommend to Keion? - correct answer ✔✔ RAID 1
RAID is the acronym for redundant array of _______________________ disks. - correct answer
✔✔ independent/inexpensive
, The boot sector that holds an MBR partition table can be repaired. - correct answer ✔✔ True
4.7 GB
25 GB
700 MB
128 GB
15.9 GB
9.4 GB - correct answer ✔✔ DVD single-side single layer
BD double-side single layer
CD
BD double-side quad layer
BD double-side dual layer
DVD double-side single layer
The SATA 3.2 revision allows for PCIe and SATA to work together in a technology called SATA
________________, which uses a new SATA connector. - correct answer ✔✔ Express
When installing a SATA hard drive, is it true or false that you need to move the jumpers on the
back of the drive to instruct the computer on which hard drive is the bootable drive? - correct
answer ✔✔ False
SSDs are less expensive than magnetic hard drives - correct answer ✔✔ False
Devon would like to install a new hard drive on his computer. Because he does not have a SATA
port available on his motherboard, he has decided to purchase a NVME SSD hard drive.
How can Devon attach a NVME device to his computer? - correct answer ✔✔ PCIe expansion
card
U.2 port on the motherboard
