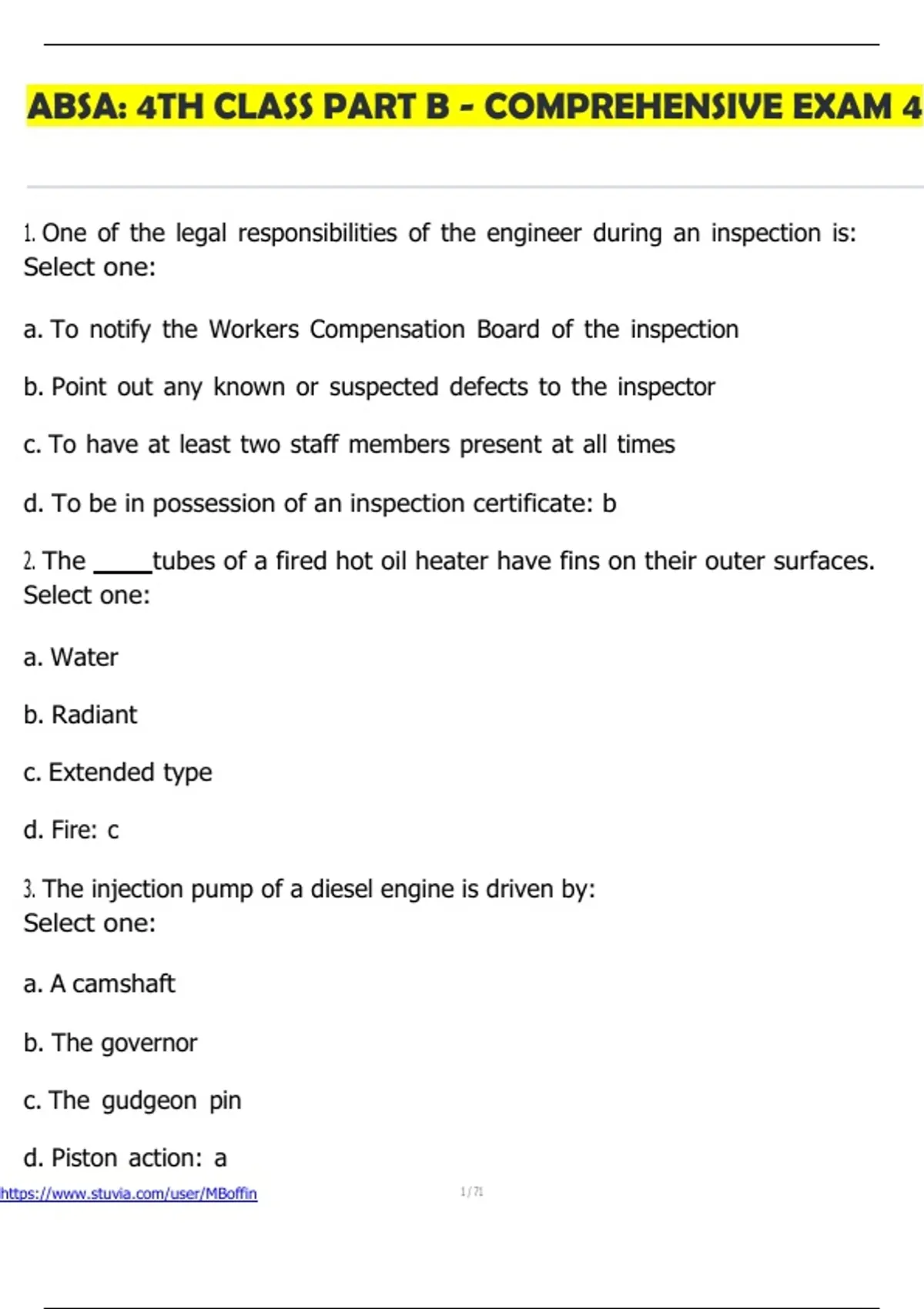

ABSA: 4TH CLASS PART B - COMPREHENSIVE EXAM 4
1. One of the legal responsibilities of the engineer during an inspection is:
Select one:
a. To notify the Workers Compensation Board of the inspection
b. Point out any known or suspected defects to the inspector
c. To have at least two staff members present at all times
d. To be in possession of an inspection certificate: b
2. The tubes of a fired hot oil heater have fins on their outer surfaces.
Select one:
a. Water
b. Radiant
c. Extended type
d. Fire: c
3. The injection pump of a diesel engine is driven by:
Select one:
a. A camshaft
b. The governor
c. The gudgeon pin
d. Piston action: a
https://www.stuvia.com/user/MBoffin
, 4. Ammonia, as well as being toxic, is also:
Select one:
a. A low pressure refrigerant
b. Flammable
c. Miscible with oil
d. Odourless: b
5. When a boiler primes, it means that:
Select one:
a. The steam vent is open, to allow it to fill
b. Water is being carried over with the steam
https://www.stuvia.com/user/MBoffin
, c. The boiler is being over fired
d. The water has not been chemically treated: b
6. The slide valve of a steam engine is designed to:
Select one:
a. Allow steam to enter and leave the cylinder
b. Prevent the engine from over-speeding
c. Provide lubrication for the steam engine
d. Drain the condensate from the cylinder during warm-up: a
7. A journal bearing:
Select one:
a. Supports a shaft
b. require cooling water
c. Does not require lubrication
d. Controls thrust movement: a
8. Smaller spark ignition engine use to vapourize gasoline:
Select one:
a. Carburetion
b. Atomization
https://www.stuvia.com/user/MBoffin
, c. Electric heaters
d. Vapourizers: a
9. Heat load from people in a room is mostly affected by:
Select one:
a. The building occupancy class
b. The activity of the people
c. The number of people
d. The age of the people: b
10. Testing a safety valve on a boiler by pulling the try-lever
Select one:
https://www.stuvia.com/user/MBoffin
