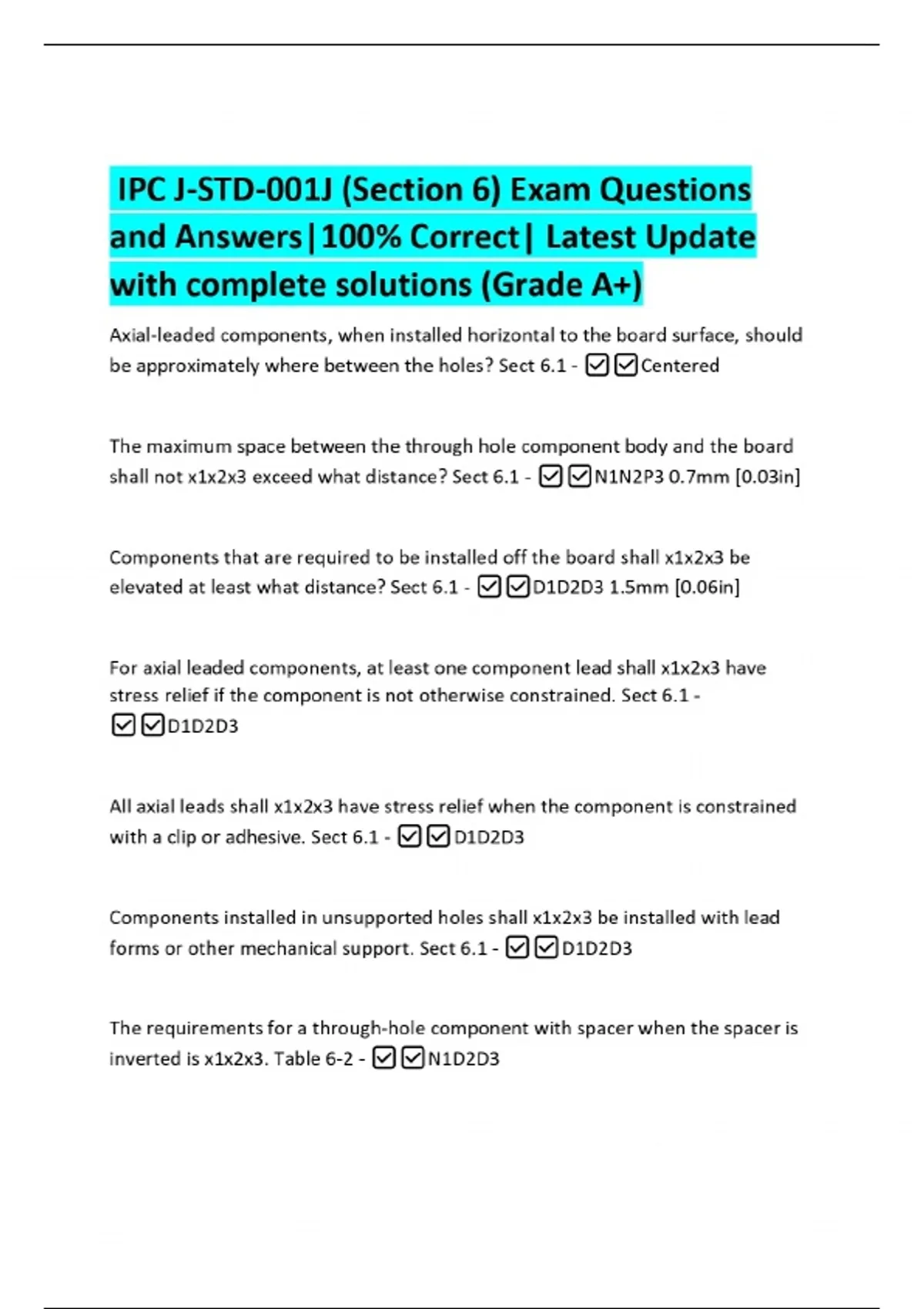

IPC J-STD-001J (Section 6) Exam Questions and Answers|100% Correct| Latest Update with complete solutions (Grade A+)
Preview 1 out of 4 pages
IPC J-STD-001J (Section 6) Exam Questions and Answers|100% Correct| Latest Update with complete solutions (Grade A+) Axial-leaded components, when installed horizontal to the board surface, should be approximately where between the holes? Sect 6.1 - Centered The maximum space between the through hole component body and the board shall not x1x2x3 exceed what distance? Sect 6.1 - N1N2P3 0.7mm [0.03in] Components that are required to be installed off the board shall x1x2x3 be elevated at least what distance? Sect 6.1 - D1D2D3 1.5mm [0.06in] For axial leaded components, at least one component lead shall x1x2x3 have stress relief if the component is not otherwise constrained. Sect 6.1 - D1D2
