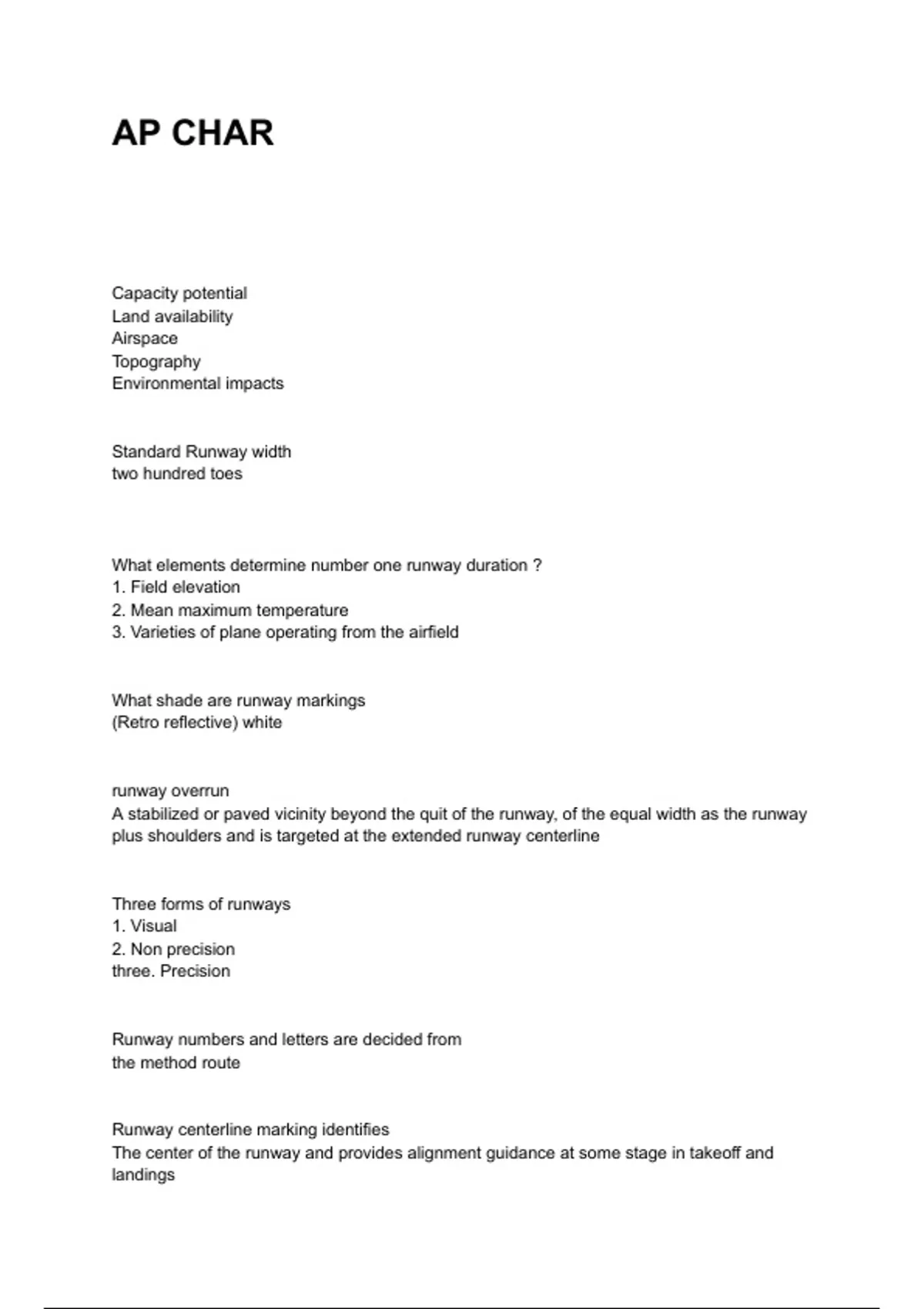

AP CHAR
Capacity potential
Land availability
Airspace
Topography
Environmental impacts
Standard Runway width
two hundred toes
What elements determine number one runway duration ?
1. Field elevation
2. Mean maximum temperature
3. Varieties of plane operating from the airfield
What shade are runway markings
(Retro reflective) white
runway overrun
A stabilized or paved vicinity beyond the quit of the runway, of the equal width as the runway
plus shoulders and is targeted at the extended runway centerline
Three forms of runways
1. Visual
2. Non precision
three. Precision
Runway numbers and letters are decided from
the method route
Runway centerline marking identifies
The center of the runway and provides alignment guidance at some stage in takeoff and
landings
, Width of primary runway centerline is
12 to 18 inches
Width of a primary/ precision instrument runway centerline is no less than
36 inches
What do runway threshold markings appear like?
Ten Longitudinal stripes of uniform dimensions disposed symmetrically approximately the
runway centerline
If the runway is ____________ than 2 hundred feet extensive, the overall width of the edge
markings shall be ____ feet much less than the runway width.
Less than 2 hundred ft wide/ 20 ft less than
What is the purpose of Runway Centerline Markings?
Identifies the middle of the runway and offers alignment steerage during takeoff and landings
How extensive are taxiways?
75 ft extensive
What do Holding Position Markings appear to be?
Four yellow traces, two solid and two dashed, spaced six or twelve inches aside, and
extended across the width of the taxiway or runway.
For runways and taxiways which can be to remain completely closed, the lights circuits will
be______________.
Disconnected
The ILS important vicinity signal suggests
the brink of the ILS vital vicinity
ILS Critical Area holding position markings shall be located________________ feet from the
runway centerline.
Not less than 400 ft from the runway centerline
