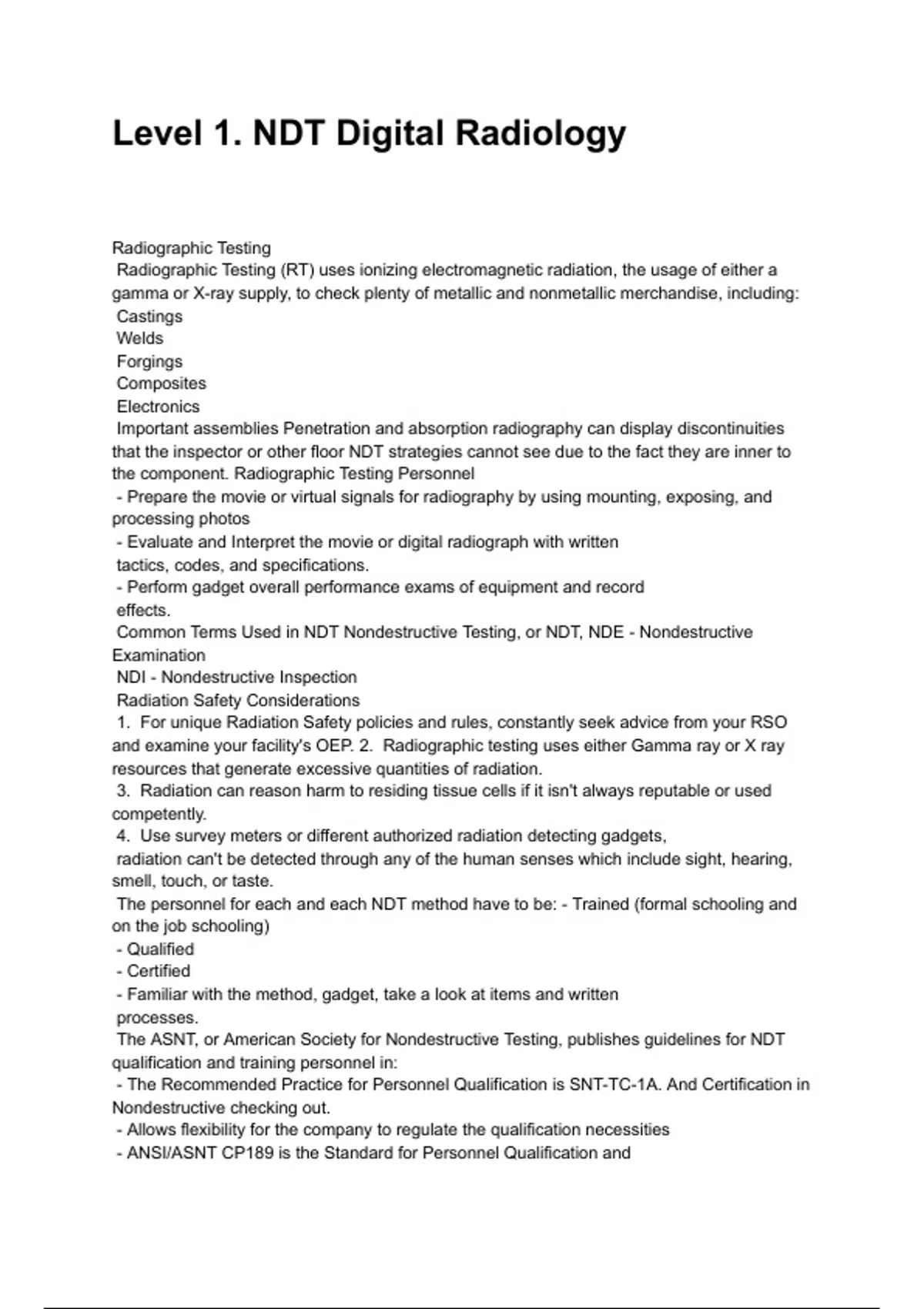

Level 1. NDT Digital Radiology
Radiographic Testing
Radiographic Testing (RT) uses ionizing electromagnetic radiation, the usage of either a
gamma or X-ray supply, to check plenty of metallic and nonmetallic merchandise, including:
Castings
Welds
Forgings
Composites
Electronics
Important assemblies Penetration and absorption radiography can display discontinuities
that the inspector or other floor NDT strategies cannot see due to the fact they are inner to
the component. Radiographic Testing Personnel
- Prepare the movie or virtual signals for radiography by using mounting, exposing, and
processing photos
- Evaluate and Interpret the movie or digital radiograph with written
tactics, codes, and specifications.
- Perform gadget overall performance exams of equipment and record
effects.
Common Terms Used in NDT Nondestructive Testing, or NDT, NDE - Nondestructive
Examination
NDI - Nondestructive Inspection
Radiation Safety Considerations
1. For unique Radiation Safety policies and rules, constantly seek advice from your RSO
and examine your facility's OEP. 2. Radiographic testing uses either Gamma ray or X ray
resources that generate excessive quantities of radiation.
3. Radiation can reason harm to residing tissue cells if it isn't always reputable or used
competently.
4. Use survey meters or different authorized radiation detecting gadgets,
radiation can't be detected through any of the human senses which include sight, hearing,
smell, touch, or taste.
The personnel for each and each NDT method have to be: - Trained (formal schooling and
on the job schooling)
- Qualified
- Certified
- Familiar with the method, gadget, take a look at items and written
processes.
The ASNT, or American Society for Nondestructive Testing, publishes guidelines for NDT
qualification and training personnel in:
- The Recommended Practice for Personnel Qualification is SNT-TC-1A. And Certification in
Nondestructive checking out.
- Allows flexibility for the company to regulate the qualification necessities
- ANSI/ASNT CP189 is the Standard for Personnel Qualification and
, a license in nondestructive checking out. - Although this fashionable specifies the minimum
necessities, modified by using the business enterprise.
FUJIFILM North America Corporation
Property
How many degrees of Qualification is there in SNT-TC-1A, NAS410, and CP189?
Level I, Level II, and Level III are the three stages of SNT-TC-1A. There are four ranges in
NAS410: Limited Level 1, Level 1, Level 2, and Level 3. CP189 has 6 degrees of
qualification: Trainee, Level I, Level II Limited, Level II, Level III, NDT Instructor
Both requirements kingdom individuals inside the system of turning into
certified and certified is taken into consideration a Trainee.
What is the distinction between qualification and
certification?
Skills and understanding which have been proven are required. Documented training, and
documented revel in required for
personnel to nicely carry out the obligations of a selected job
- Qualification is a system that ought to take area before someone
can come to be licensed
(ex. Minimum formal training hours, revel in/OJT hours, and
vision examination)
Certification: written testimony of qualification
- A man or woman can simplest be certified via their agency if they meet the qualification
requirements.
Trainees have to carry out their obligations beneath direct commentary/supervision of
certified Level 2 or three.
Certification from the Employer - Certification of NDT personnel is the responsibility of the
enterprise.
- Personnel may be licensed after they have finished the preliminary
formal education, min revel in hours, and visual examination
requirements described within the business enterprise's written practice
- The period of certification shall be stated within the company's
written practice. (Typically five yr periods)
Level 1 Responsibilities
1. Be capable of follow work instructions
2. Know the way to manner components, file consequences, and standardize system in
accordance with accredited work commands. Three. Have the skills and expertise to carry
out any essential preparation of components earlier than or after inspection in step with
approved paintings instructions.
4. Have the abilties and understanding to behavior gadget overall performance exams in
keeping with applicable method requirements.
Five. Receive steerage or supervision from a certified level 2 or in that technique whilst
necessary.
6. When unique within the written exercise and permitted by means of the accountable
Level three, might also perform interpretations and evaluations of specific product(s) or
product shape(s) for reputation or rejection per approved paintings instructions.
7. (Typically level employees do no longer make any take delivery of or reject choices)
Level 2 Responsibilities
1. Have the skills and know-how to set up and standardize device procedure components,
interpret and compare for attractiveness or rejection consequences
