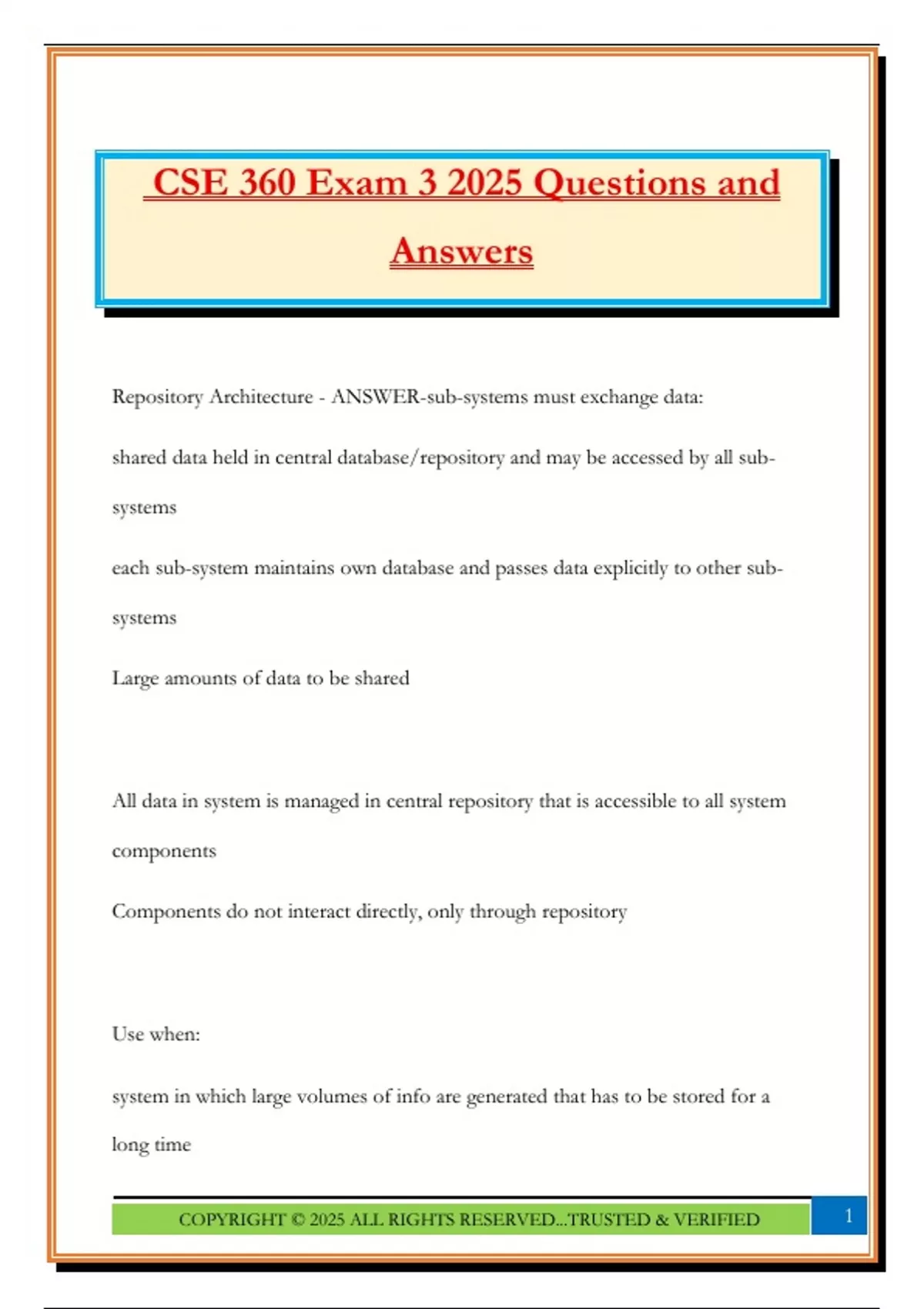

CSE 360 Exam 3 2025 Questions and
Answers
Repository Architecture - ANSWER-sub-systems must exchange data:
shared data held in central database/repository and may be accessed by all sub-
systems
each sub-system maintains own database and passes data explicitly to other sub-
systems
Large amounts of data to be shared
All data in system is managed in central repository that is accessible to all system
components
Components do not interact directly, only through repository
Use when:
system in which large volumes of info are generated that has to be stored for a
long time
COPYRIGHT ©️ 2025 ALL RIGHTS RESERVED...TRUSTED & VERIFIED 1
,data-driven system where inclusion of data in repository triggers action/tool
+: components can be independent
do not need to know of existence of other components
changes made by 1 component can be propagated to all components
all data can be managed consistently b/c all in one place
-: repository is single point of failure so repository errors affect whole system
May be inefficiencies in organizing all comm through repository
distributing repository through several computers may be diff
Client-server Architecture - ANSWER-distributed system model shows how data
and processing is distributed across a range of components; can be implemented
on a single computer
set of stand-alone servers which provide specific services such as printing, data
management, etc.
set of clients which call on these services
network which allows clients to access servers
functionality of system is org into services - delivered from a separate server
COPYRIGHT ©️ 2025 ALL RIGHTS RESERVED...TRUSTED & VERIFIED 2
,clients - users of these services and access servers to make use of them
Used when:
data in a shared database has to be accessed from a range of locations
servers can be replicated -> load on a system is variable
+: servers can be distributed across a network
general functionality can be available to all clients and does not need to be
implemented by all services
-: each service is a single point of failure so susceqptible to denial of service attacks
or server failure
performance may be unpredictable because it depends on network and system
may be management problems if servers are owned by diff orgs
Requirement Engineering - ANSWER-Process of establishing
services that a customer requires from system
constraints under which services operate and are developed
Types of Requirements - ANSWER-User Requirements
COPYRIGHT ©️ 2025 ALL RIGHTS RESERVED...TRUSTED & VERIFIED 3
, System Requirements
User Requirement - ANSWER-Statements in natural language + diagrams of
services the system provides + operational constrainsts
Use case diagram
Written for customers - no technical info
System Requirements - ANSWER-structured document with detailed descriptions
of system's functions, services, and operational constraints
Should be both consistent and complete - may be impossible in reality due to
system and env complexity
Always expect change because don't have all reqs documents at the beginning and
may change over time
Functional Requirements - ANSWER-Statement of services system should
provide, how system should react to inputs, and how the system should behave in
particular situations
May state what system should not do
Inputs, outputs, error messages, user perspective
Functionality or sevices = what does it do?
Depends on type of sw, expected users, type of system
May be high-level statements in natural language about what system should do
COPYRIGHT ©️ 2025 ALL RIGHTS RESERVED...TRUSTED & VERIFIED 4
