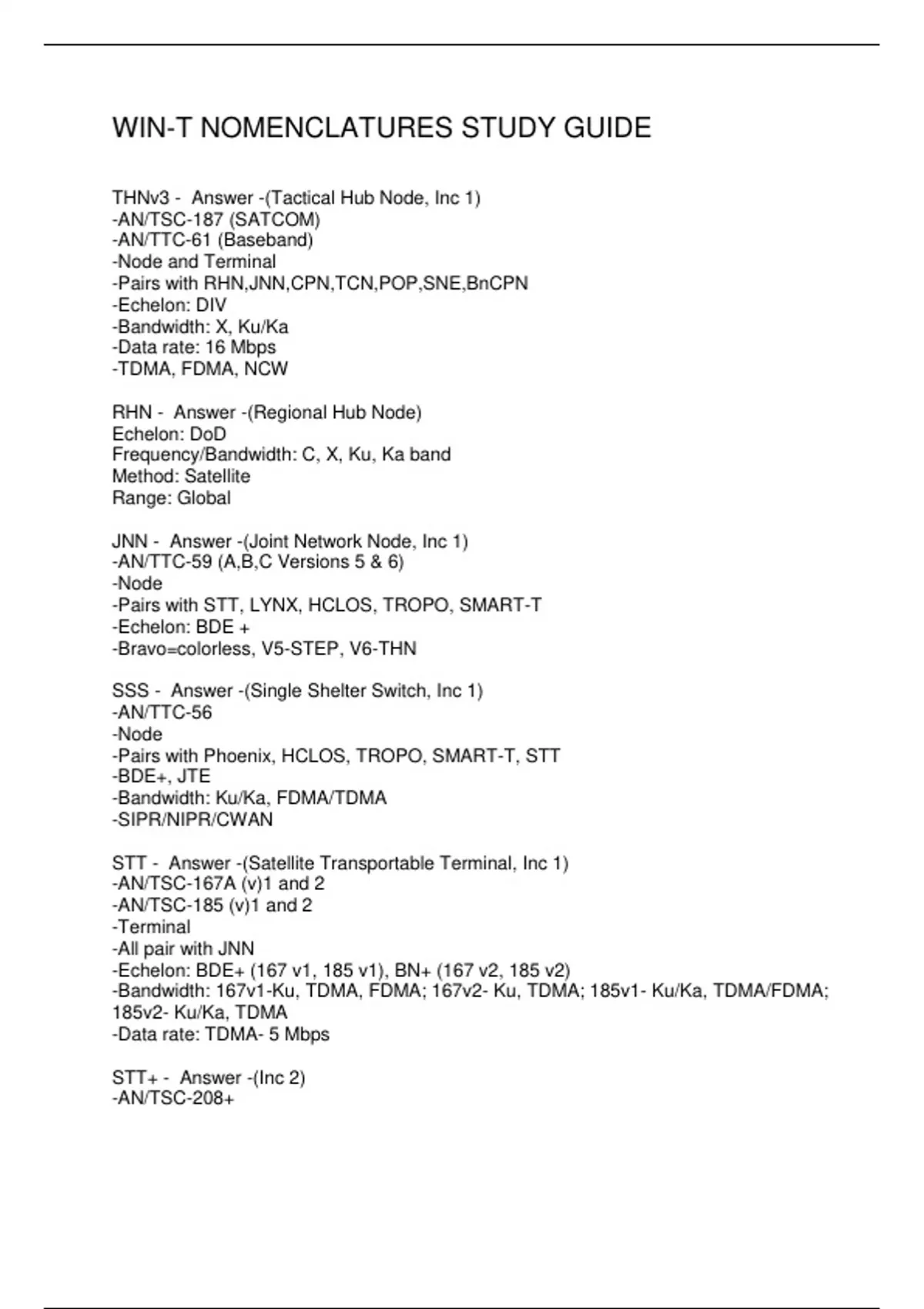

WIN-T NOMENCLATURES STUDY GUIDE

WIN-T NOMENCLATURES STUDY GUIDE

THNv3 - Answer -(Tactical Hub Node, Inc 1)
-AN/TSC-187 (SATCOM)
-AN/TTC-61 (Baseband)
-Node and Terminal
-Pairs with RHN,JNN,CPN,TCN,POP,SNE,BnCPN
-Echelon: DIV
-Bandwidth: X, Ku/Ka
-Data rate: 16 Mbps
-TDMA, FDMA, NCW

RHN - Answer -(Regional Hub Node)
Echelon: DoD
Frequency/Bandwidth: C, X, Ku, Ka band
Method: Satellite
Range: Global

JNN - Answer -(Joint Network Node, Inc 1)
-AN/TTC-59 (A,B,C Versions 5 & 6)
-Node
-Pairs with STT, LYNX, HCLOS, TROPO, SMART-T
-Echelon: BDE +
-Bravo=colorless, V5-STEP, V6-THN

SSS - Answer -(Single Shelter Switch, Inc 1)
-AN/TTC-56
-Node
-Pairs with Phoenix, HCLOS, TROPO, SMART-T, STT
-BDE+, JTE
-Bandwidth: Ku/Ka, FDMA/TDMA
-SIPR/NIPR/CWAN

STT - Answer -(Satellite Transportable Terminal, Inc 1)
-AN/TSC-167A (v)1 and 2
-AN/TSC-185 (v)1 and 2
-Terminal
-All pair with JNN
-Echelon: BDE+ (167 v1, 185 v1), BN+ (167 v2, 185 v2)
-Bandwidth: 167v1-Ku, TDMA, FDMA; 167v2- Ku, TDMA; 185v1- Ku/Ka, TDMA/FDMA;
185v2- Ku/Ka, TDMA
-Data rate: TDMA- 5 Mbps

STT+ - Answer -(Inc 2)
-AN/TSC-208+
