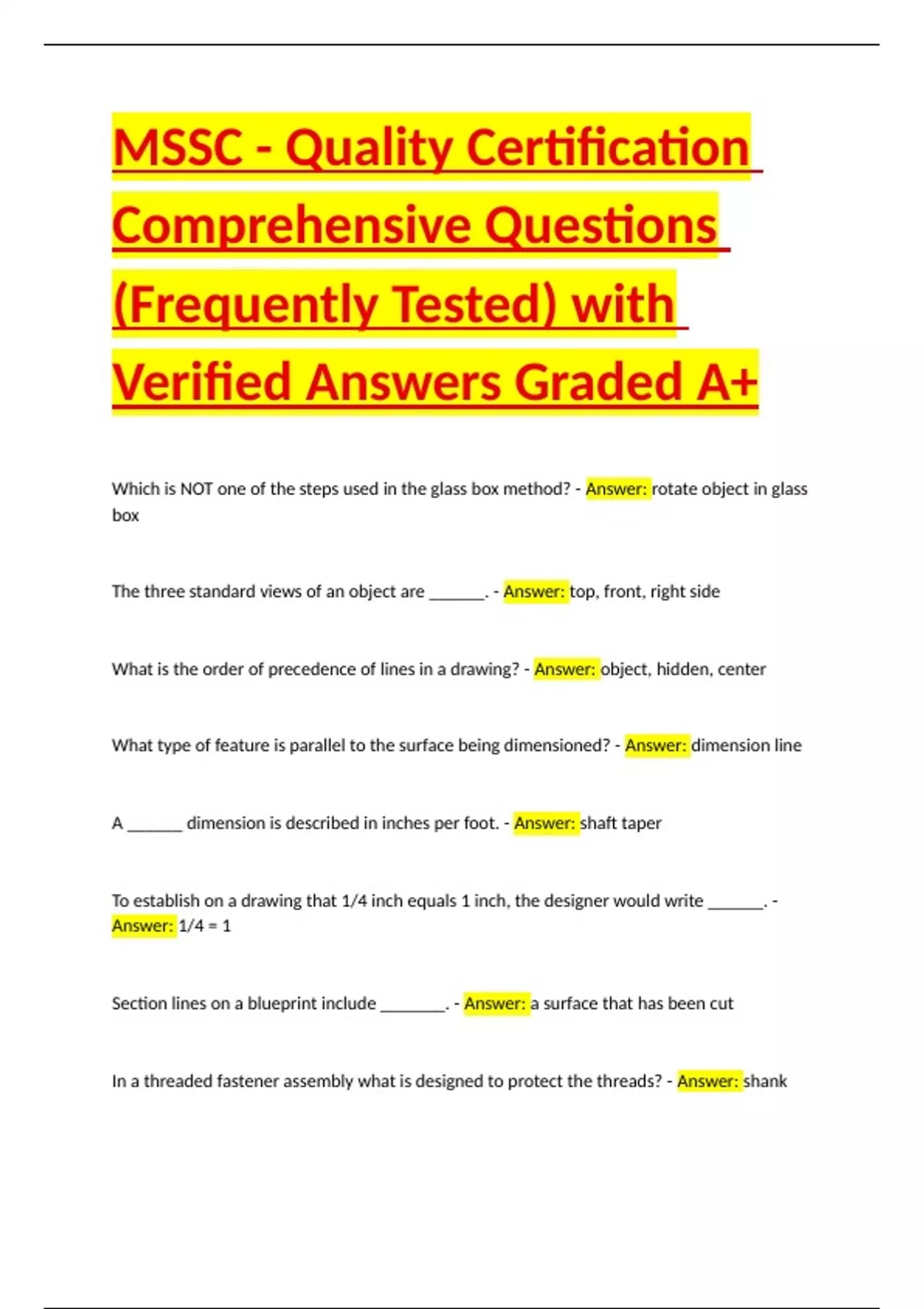

MSSC - Quality Certification
Comprehensive Questions
(Frequently Tested) with
Verified Answers Graded A+
Which is NOT one of the steps used in the glass box method? - Answer: rotate object in glass
box
The three standard views of an object are ______. - Answer: top, front, right side
What is the order of precedence of lines in a drawing? - Answer: object, hidden, center
What type of feature is parallel to the surface being dimensioned? - Answer: dimension line
A ______ dimension is described in inches per foot. - Answer: shaft taper
To establish on a drawing that 1/4 inch equals 1 inch, the designer would write ______. -
Answer: 1/4 = 1
Section lines on a blueprint include _______. - Answer: a surface that has been cut
In a threaded fastener assembly what is designed to protect the threads? - Answer: shank
, The minor diameter of a screw thread is measured at the ______. - Answer: root of screw
thread
The minor diameter of a threaded fastener is ______. - Answer: the major diameter minus the
thread height
How do you determine the grade of a bolt? - Answer: number of lines on the head +2 indicates
the grade
A screw with National fine thread is represented on a drawing with what designation? - Answer:
NF
Metals treated by ______ processes become soft. - Answer: annealing
A running fit is also called a(n) ______. - Answer: sliding fit
The term ______ refers to a physical portion of a part. - Answer: feature
A(n) _______ is a theoretically perfect line, point or pane that is located by a similar feature or
part. - Answer: datum
GD&T _________________. - Answer: allows certain tolerances on part features to be increased
A feature control frame is not used to describe ______. - Answer: measurements
A common decimal inch rule graduation is in _______. - Answer: 50ths
