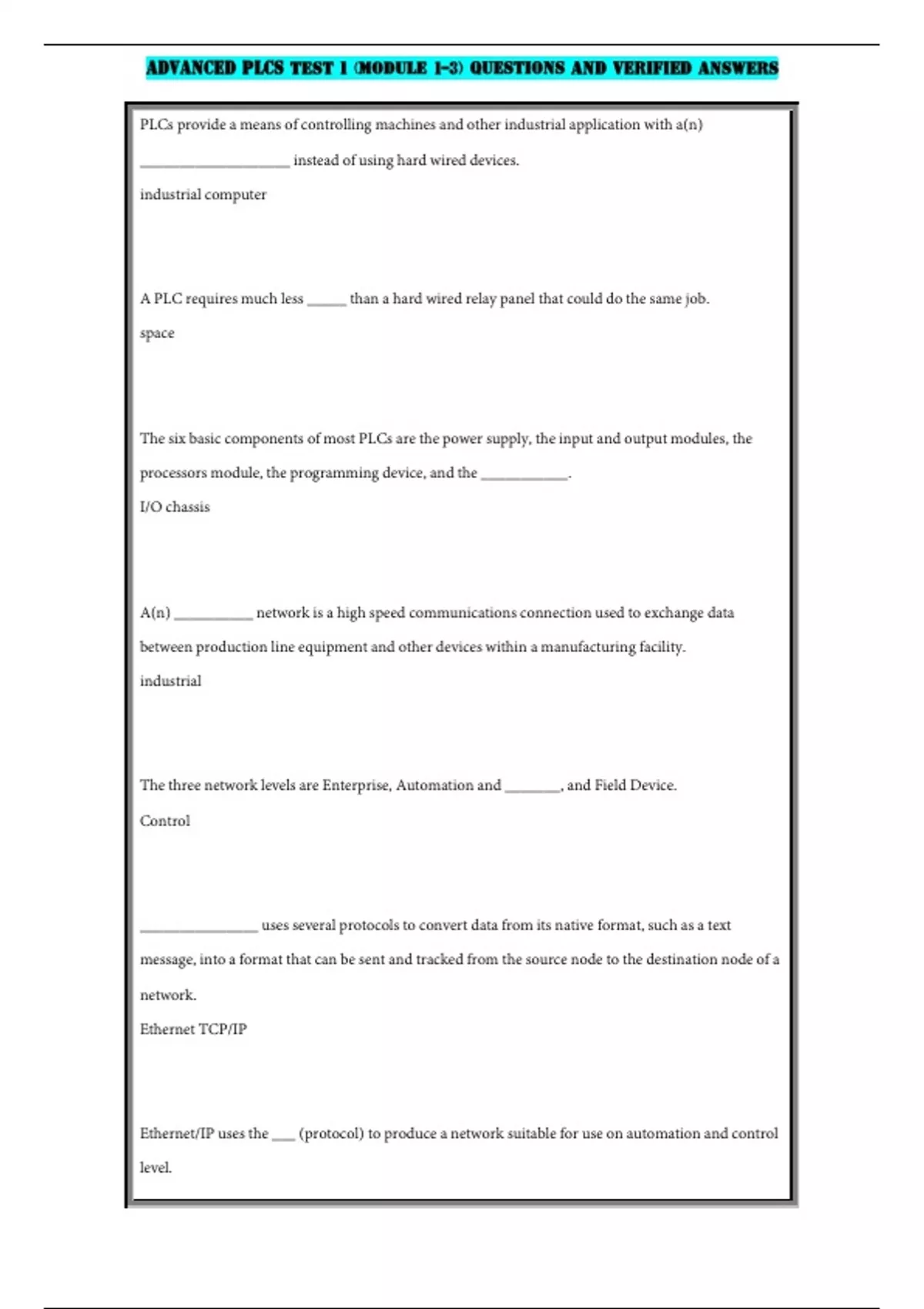

PLCs provide a means of controlling machines and other industrial application with a(n)
___________________ instead of using hard wired devices.
industrial computer
A PLC requires much less _____ than a hard wired relay panel that could do the same job.
space
The six basic components of most PLCs are the power supply, the input and output modules, the
processors module, the programming device, and the ___________.
I/O chassis
A(n) __________ network is a high speed communications connection used to exchange data
between production line equipment and other devices within a manufacturing facility.
industrial
The three network levels are Enterprise, Automation and _______, and Field Device.
Control
_______________ uses several protocols to convert data from its native format, such as a text
message, into a format that can be sent and tracked from the source node to the destination node of a
network.
Ethernet TCP/IP
Ethernet/IP uses the ___ (protocol) to produce a network suitable for use on automation and control
level.
, CIP
A PLC and PC are connected in a(n) ______________ network using a single Ethernet cable.
point-to-point
Two addresses are used for Ethernet communications: Media Access Control (MAC) and
______________________.
Internet Protocol (IP)
_______ are software programs that allow a device to connect to a network and communicate with
other devices.
Drivers
The IP address of a CompactLogix PLC that already has an IP address is viewed and edited using
______ communications software.
RSLinx
The basic operation of a(n) ___ is to scan instructions, monitor the status of input devices, and
produce outputs based on which inputs are on or off.
PLC
All PLCs must have a(n) ______________________ to operate.
user developed project
