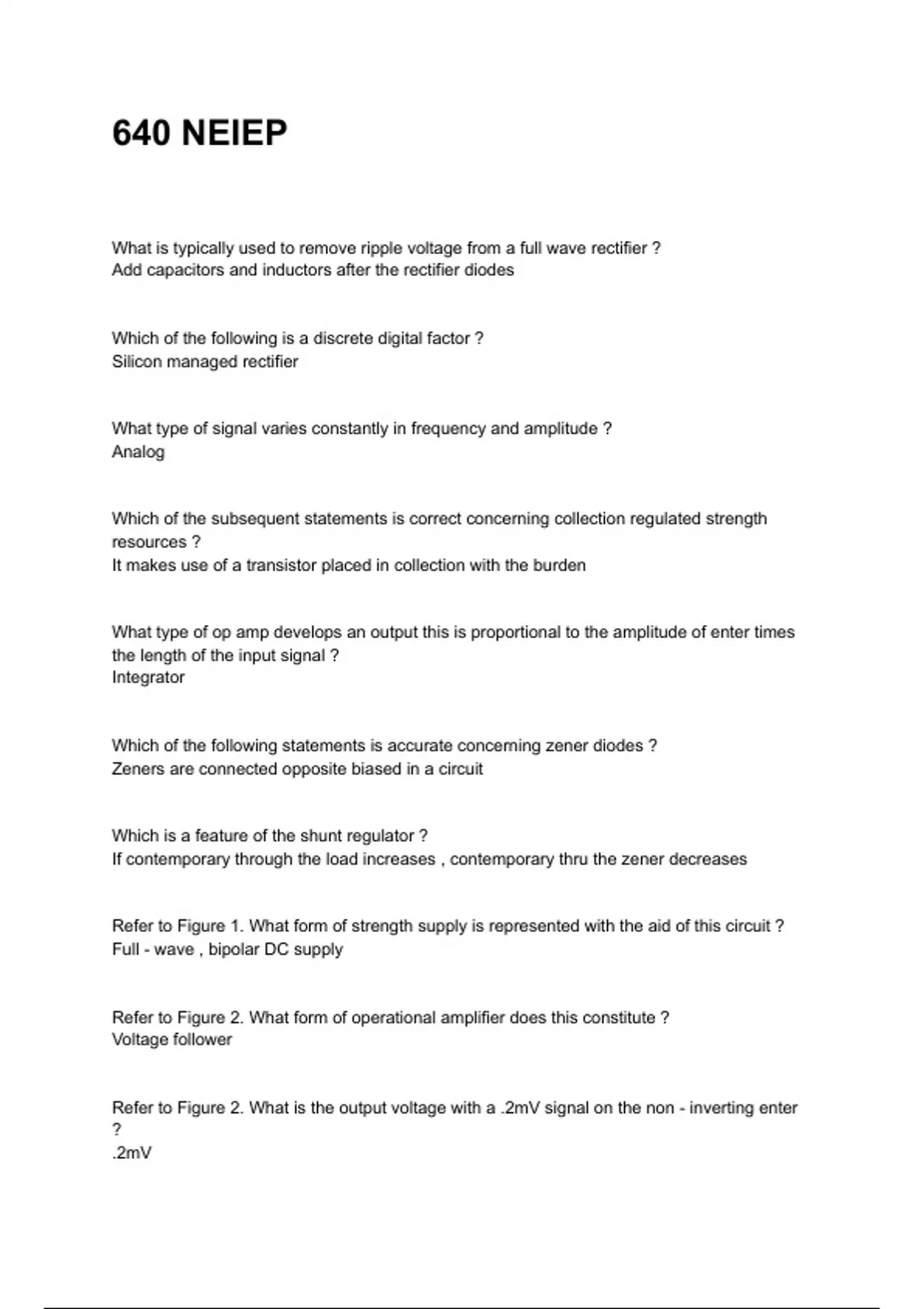

640 NEIEP
What is typically used to remove ripple voltage from a full wave rectifier ?
Add capacitors and inductors after the rectifier diodes
Which of the following is a discrete digital factor ?
Silicon managed rectifier
What type of signal varies constantly in frequency and amplitude ?
Analog
Which of the subsequent statements is correct concerning collection regulated strength
resources ?
It makes use of a transistor placed in collection with the burden
What type of op amp develops an output this is proportional to the amplitude of enter times
the length of the input signal ?
Integrator
Which of the following statements is accurate concerning zener diodes ?
Zeners are connected opposite biased in a circuit
Which is a feature of the shunt regulator ?
If contemporary through the load increases , contemporary thru the zener decreases
Refer to Figure 1. What form of strength supply is represented with the aid of this circuit ?
Full - wave , bipolar DC supply
Refer to Figure 2. What form of operational amplifier does this constitute ?
Voltage follower
Refer to Figure 2. What is the output voltage with a .2mV signal on the non - inverting enter
?
.2mV
What is typically used to remove ripple voltage from a full wave rectifier ?
Add capacitors and inductors after the rectifier diodes
Which of the following is a discrete digital factor ?
Silicon managed rectifier
What type of signal varies constantly in frequency and amplitude ?
Analog
Which of the subsequent statements is correct concerning collection regulated strength
resources ?
It makes use of a transistor placed in collection with the burden
What type of op amp develops an output this is proportional to the amplitude of enter times
the length of the input signal ?
Integrator
Which of the following statements is accurate concerning zener diodes ?
Zeners are connected opposite biased in a circuit
Which is a feature of the shunt regulator ?
If contemporary through the load increases , contemporary thru the zener decreases
Refer to Figure 1. What form of strength supply is represented with the aid of this circuit ?
Full - wave , bipolar DC supply
Refer to Figure 2. What form of operational amplifier does this constitute ?
Voltage follower
Refer to Figure 2. What is the output voltage with a .2mV signal on the non - inverting enter
?
.2mV
