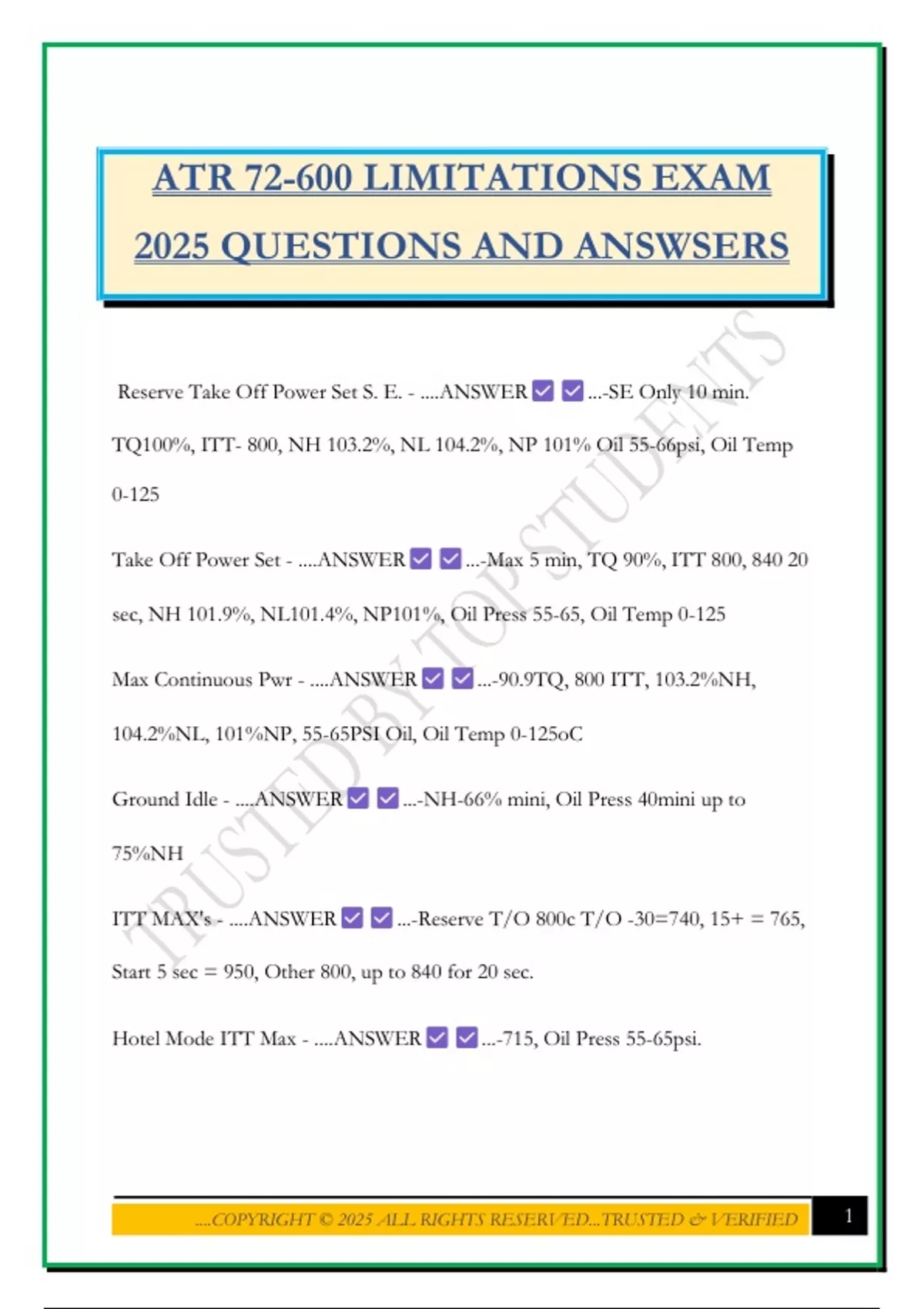

ATR 72-600 LIMITATIONS EXAM
2025 QUESTIONS AND ANSWSERS
Reserve Take Off Power Set S. E. - ....ANSWER ...-SE Only 10 min.
TQ100%, ITT- 800, NH 103.2%, NL 104.2%, NP 101% Oil 55-66psi, Oil Temp
0-125
Take Off Power Set - ....ANSWER ...-Max 5 min, TQ 90%, ITT 800, 840 20
sec, NH 101.9%, NL101.4%, NP101%, Oil Press 55-65, Oil Temp 0-125
Max Continuous Pwr - ....ANSWER ...-90.9TQ, 800 ITT, 103.2%NH,
104.2%NL, 101%NP, 55-65PSI Oil, Oil Temp 0-125oC
Ground Idle - ....ANSWER ...-NH-66% mini, Oil Press 40mini up to
75%NH
ITT MAX's - ....ANSWER ...-Reserve T/O 800c T/O -30=740, 15+ = 765,
Start 5 sec = 950, Other 800, up to 840 for 20 sec.
Hotel Mode ITT Max - ....ANSWER ...-715, Oil Press 55-65psi.
....COPYRIGHT ©️ 2025 ALL RIGHTS RESERVED...TRUSTED & VERIFIED 1
,X/W Max, Tail Wind Max - ....ANSWER ...-X/W 35 kts reduces with diff
condx
Tail Wind Max 15kts
Vmo - ....ANSWER ...-250
VA, Vra, Vwo - ....ANSWER ...-VA=175, Vra(Turb) = 180, VWo (wipers)=
160
Max Tire - ....ANSWER ...-165
Flap Speeds - ....ANSWER ...-VFE 15= 185
VFE 30=150
Gear Speeds - ....ANSWER ...-VLe (gear out) = 185
VLo Retract = 160
VLo Lower = 170
Fuel Weights & Max imbalance - ....ANSWER ...-Fuel 5000kg (2500 per
tank) Max inbalance 730kg
MTOW, MLW, MZFW - ....ANSWER ...-MTaxi = 23,170kg
MTOW=23,000kg
MLW=22,350kg
....COPYRIGHT ©️ 2025 ALL RIGHTS RESERVED...TRUSTED & VERIFIED 2
, MZFW=21,000kg
BUGS Take Off - ....ANSWER ...-Green - V1 or 70kts
Yellow - VR
White - Final T/0
Red - Icing Bug
Speed Bug - V2
Speed on AutoPilot V2+5
BUGS - Cruise - ....ANSWER ...-White - Normal Drift Down (VmLB) or
Icing Drift Down Flaps 15
Red - Min Enroute Flap 0 Icing
Speed Bug - as per Ops Chart
Props - Ground max TQ with x/w - ....ANSWER ...-X/w of 5-20kts max
58% TQ
Icing Condx min NP - ....ANSWER ...-82%
Air Pressurization limits - ....ANSWER ...-Max Diff Pressure 6.35PSI
Max -Ve -0.5
Max Ldg 0.35PSI
....COPYRIGHT ©️ 2025 ALL RIGHTS RESERVED...TRUSTED & VERIFIED 3
