Exam (elaborations)

Avionics Quiz 2 2025 Questions And Answers

0.0
(0 reviews)
- sold
8 pages
2024/2025 Written for academic year
Institution AVIONICS
Course AVIONICS
Document preview thumbnail
Preview 2 out of 8 pages

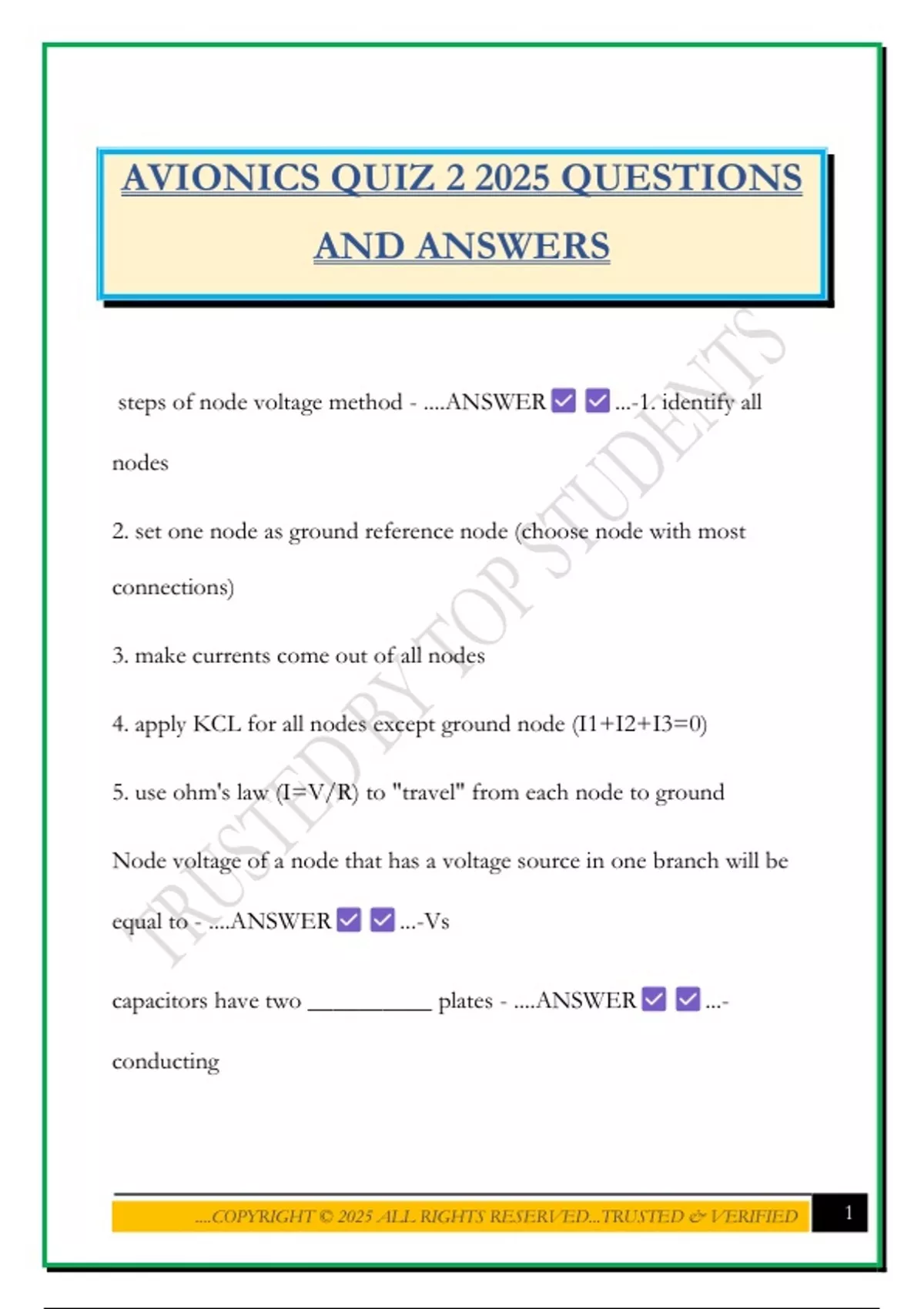

AVIONICS QUIZ 2 2025 QUESTIONS AND ANSWERS

Content preview

AVIONICS QUIZ 2 2025 QUESTIONS
AND ANSWERS


steps of node voltage method - ....ANSWER ...-1. identify all

nodes

2. set one node as ground reference node (choose node with most

connections)

3. make currents come out of all nodes

4. apply KCL for all nodes except ground node (I1+I2+I3=0)

5. use ohm's law (I=V/R) to "travel" from each node to ground

Node voltage of a node that has a voltage source in one branch will be

equal to - ....ANSWER ...-Vs


capacitors have two __________ plates - ....ANSWER ...-

conducting




....COPYRIGHT ©️ 2025 ALL RIGHTS RESERVED...TRUSTED & VERIFIED 1

, capacitors consist of a pair of parallel conducting plates separated by a

_________________ _____________ - ....ANSWER ...-

dielectric material (e.g. air, ceramic)

the dielectric material between capacitor plates acts as an

_________________ - ....ANSWER ...-insulator

capacitors store energy in the form of an _________ ______ -

....ANSWER ...-electric field

a capacitor is used to ________ or ________ ______ voltage signals -

....ANSWER ...-filter or smooth out

capacitors can add ________ to an electric signal -

....ANSWER ...-delay

capacitors can act like a ________ since they store energy for a

________ period of time - ....ANSWER ...-battery , short

electrolytic capacitors are __________, meaning they have a positive

and a negative end - ....ANSWER ...-polarized




....COPYRIGHT ©️ 2025 ALL RIGHTS RESERVED...TRUSTED & VERIFIED 2
