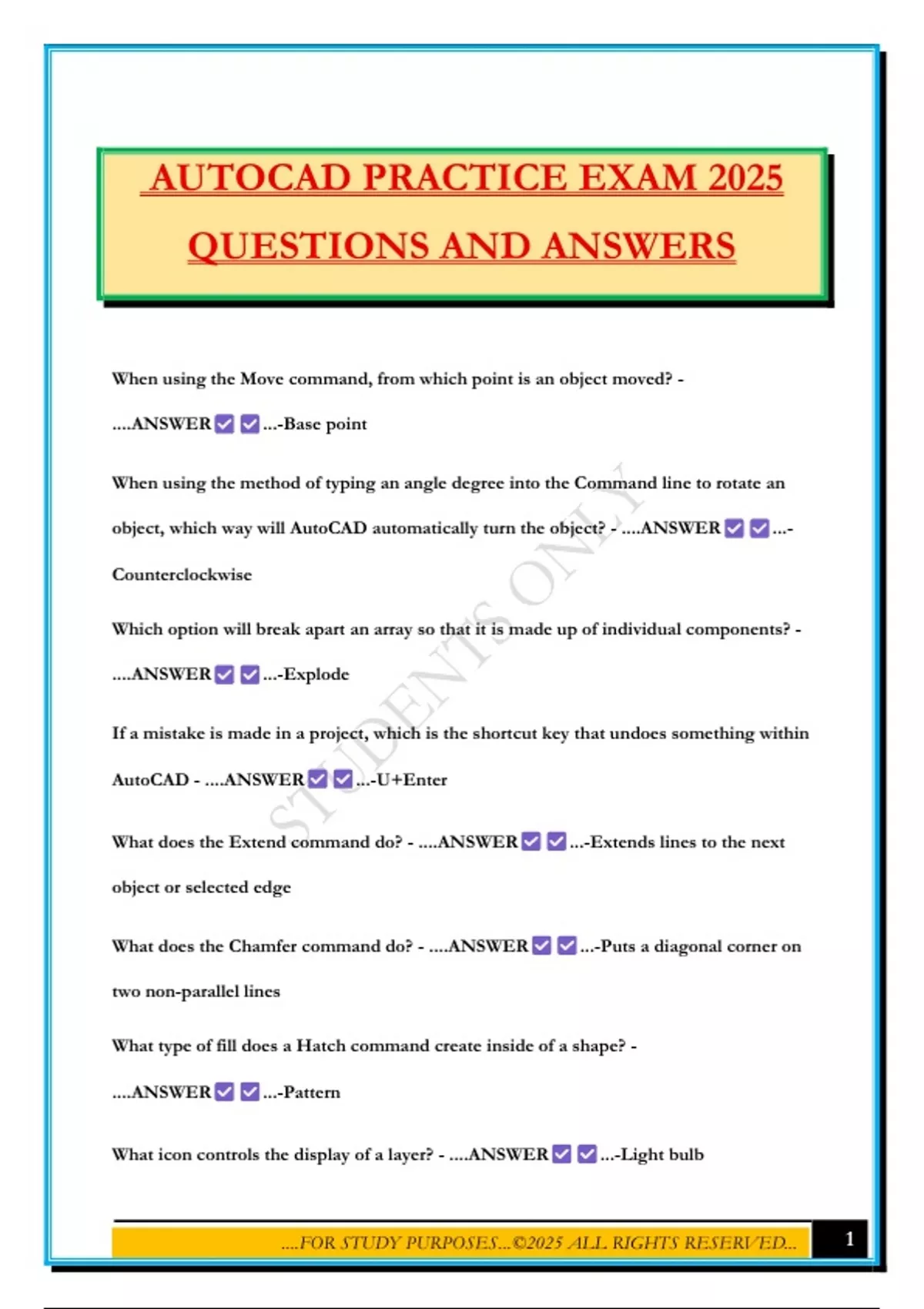

AUTOCAD PRACTICE EXAM 2025
QUESTIONS AND ANSWERS
When using the Move command, from which point is an object moved? -
....ANSWER ...-Base point
When using the method of typing an angle degree into the Command line to rotate an
object, which way will AutoCAD automatically turn the object? - ....ANSWER ...-
Counterclockwise
Which option will break apart an array so that it is made up of individual components? -
....ANSWER ...-Explode
If a mistake is made in a project, which is the shortcut key that undoes something within
AutoCAD - ....ANSWER ...-U+Enter
What does the Extend command do? - ....ANSWER ...-Extends lines to the next
object or selected edge
What does the Chamfer command do? - ....ANSWER ...-Puts a diagonal corner on
two non-parallel lines
What type of fill does a Hatch command create inside of a shape? -
....ANSWER ...-Pattern
What icon controls the display of a layer? - ....ANSWER ...-Light bulb
....FOR STUDY PURPOSES...©️2025 ALL RIGHTS RESERVED... 1
, Where are blocks stored when they are created? - ....ANSWER ...-Library
When using dimension styles, which tab in the New Dimension Style dialog box controls
how text interacts with a dimension? - ....ANSWER ...-Fit
When printing a drawing in all black, which option should be used? -
....ANSWER ...-Monochrome
On which panel is the multiline text option? - ....ANSWER ...-Annotation
Which action places a single line text box on the screen? - ....ANSWER ...-Clicking
to establish a starting point
Which types of dimensions are used for horizontal dimensions? - ....ANSWER ...-
Linear
Once dimension styles are established, how can individual dimensions be manipulated?
- ....ANSWER ...-Through the Properties box
The properties for two rectangular polylines are given below. With Polyline 1 selected,
the Match Properties (MATCHPROP) command is used, then Polyline 2 is selected.
Which of the following statements below is now true as a result? Select Yes if the
statement is true. Otherwise, select No. - ....ANSWER ...-The Color of Polyline 2 is
Blue (Yes).
The Layer of Polyline 2 is Layer 2 (No).
The Elevation of Polyline 2 is 100.0000 (No).
The Lineweight of Polyline 2 is 0.30mm (Yes).
The Hyperlink for Polyline 2 is http://www.autodesk.com (No).
