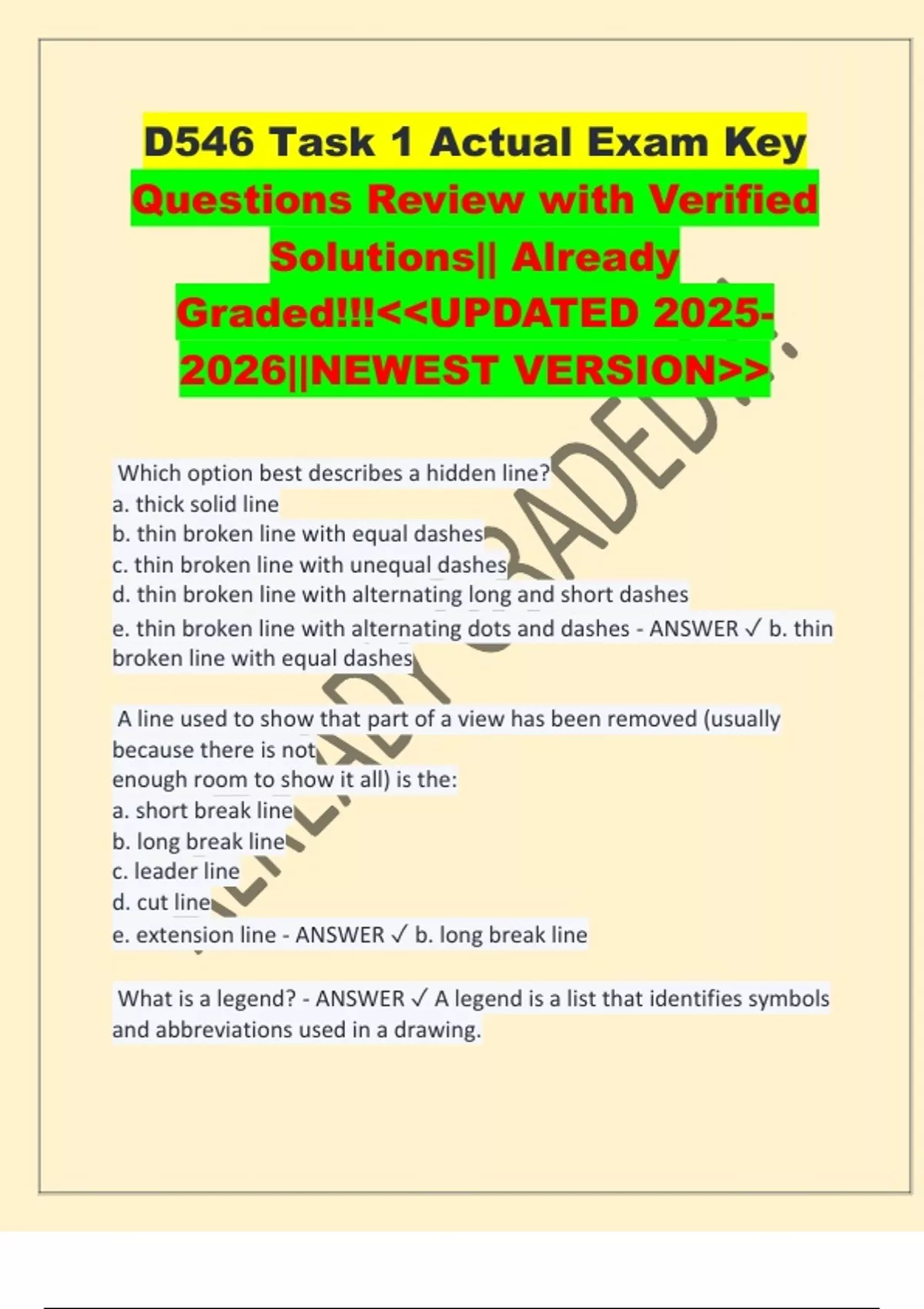

D546 Task 1 Actual Exam Key Questions Review with Verified Solutions|| Already Graded!!!UPDATED 2025- 2026||NEWEST VERSION Which option best describes a hidden line? a. thick solid line b. thin broken line with equal dashes c. thin broken line with unequal dashes d. thin broken line with alternating long and short dashes e. thin broken line with alternating dots and dashes - ANSWER b. thin broken line with equal dashes A line used to show that part of a view has been removed (usually because there is not enough room to show it all) is the: a. short break line b. long break line c. leader line d. cut line e. extension line - ANSWER b. long break line What is a legend? - ANSWER A legend is a list that identifies symbols and abbreviations used in a drawing. What is the difference between a general note and a special note? - ANSWER A general note applies to an entire drawing and a special note applies to a specific feature or area of the structure. In reference to construction prints, a schedule is a systematic method of: a. outlining when certain work must be performed b. organizing appointments for architects and consulting engineers c. outlining the general instructions and legal requirements of a job d. presenting notes on a drawing in tabular form e. listing the dates that drawings were completed and revised - ANSWER d. presenting notes on a drawing in tabular form List three common schedules that are specific to the electrical trade. - ANSWER • fixture schedule • panelboard schedule • transformer schedule If there is any disagreement between the specification and a drawing, the information in the specification is usually taken to be correct. - ANSWER a. True The standard format for specifications is based on ---------------- major divisions, each of which relates to a specific trade or unit of work. - ANSWER 50 In what order are the major divisions in a specification sequenced? - ANSWER in the same order the work would be performed What is the purpose of having a standard format for specifications and for always sequencing headings in the same order? - ANSWER make it easier to find information. What is the main purpose of a construction drawing? - ANSWER The main purpose of a construction drawing is to convey information about how something is to be built or installed. What is a blueprint? - ANSWER A blueprint is an exact copy of a construction drawing. Within each division of a set of prints is a set of ---------- , which may include a site/plot plan, a plan drawing, one or more elevation and sectional drawings, and detail drawings. - ANSWER working drawings The information shown on the electrical site plan is exactly the same as the information shown on the architectural site plan. a. True b. False - ANSWER b. False The device used to produce master drawings on a computer is called a(n): a. autoCAD b. print copier c. diazo printer d. pen plotter - ANSWER d. pen plotter According to the flow chart in Figure 2 of Learning Task 4, who is responsible for preparing drawings for the electrical subtrades? a. architect b. consulting engineer c. electrical engineer d. none of the above - ANSWER c. electrical engineer For what do each of the following use construction prints? a. engineers LEARNING TASk 10 D-1 CONSTRUCTION AND INDUSTRIAL ELECTRICIAN APPRENTICESHIP PROGRAM: LEVEL 1 77 b. estimators c. construction workersd. d. plant maintenance workers - ANSWER • engineers—prepare drawings for the subtrades • estimators—determine material and labour requirements when preparing a bid • construction workers—use construction prints during the construction phase of a project • plant maintenance workers—use construction prints after construction is complete to make repairs or renovations Name the five working drawings. - ANSWER • site/plot plans • plan drawings • elevation drawings • sectional drawings • detail drawings Name the drawing described in each of the following: a. "...a front view of the north, south, east or west facing surface of a building" b. "...often drawn to a larger scale, this drawing shows a detailed view of a small part or component of the overall structure" c. "...a top view of an entire property with the buildings drawn in their proper locations" d. "...shows the detail beneath the surface of an object or structure" e. "...a drawing prepared as a record of a deviation from the original plan" f. "...a drawing prepared by a manufacturer that shows equipment to be installed in a building" g. "...a top view of the inside of a building" - ANSWER a. elevation b. detail c. site/plot plan d. section e. as-built drawing f. shop drawing g. floor plan
