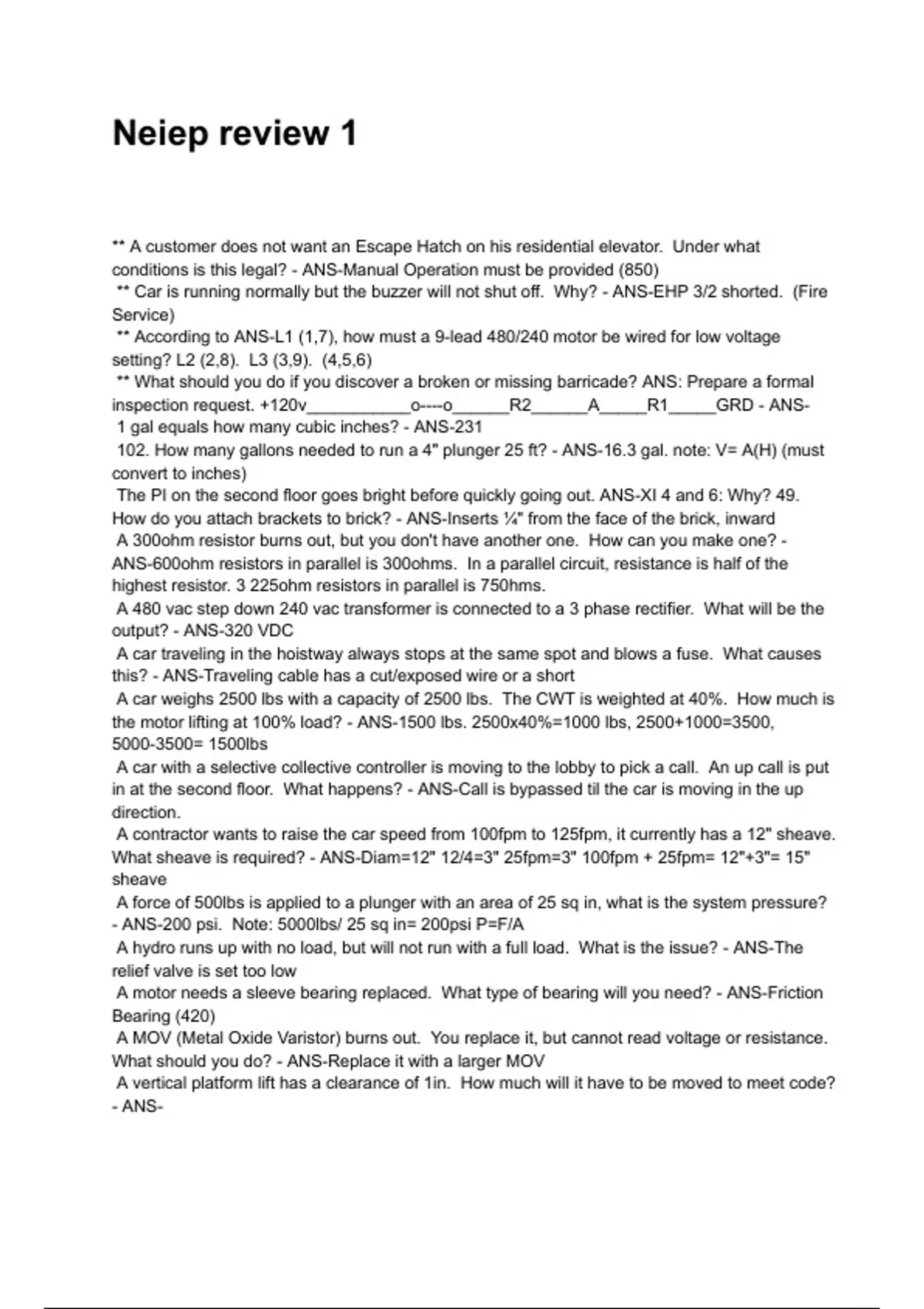

Neiep review 1
** A customer does not want an Escape Hatch on his residential elevator. Under what
conditions is this legal? - ANS-Manual Operation must be provided (850)
** Car is running normally but the buzzer will not shut off. Why? - ANS-EHP 3/2 shorted. (Fire
Service)
** According to ANS-L1 (1,7), how must a 9-lead 480/240 motor be wired for low voltage
setting? L2 (2,8). L3 (3,9). (4,5,6)
** What should you do if you discover a broken or missing barricade? ANS: Prepare a formal
inspection request. +120v___________o----o______R2______A_____R1_____GRD - ANS-
1 gal equals how many cubic inches? - ANS-231
102. How many gallons needed to run a 4" plunger 25 ft? - ANS-16.3 gal. note: V= A(H) (must
convert to inches)
The PI on the second floor goes bright before quickly going out. ANS-XI 4 and 6: Why? 49.
How do you attach brackets to brick? - ANS-Inserts ¼" from the face of the brick, inward
A 300ohm resistor burns out, but you don't have another one. How can you make one? -
ANS-600ohm resistors in parallel is 300ohms. In a parallel circuit, resistance is half of the
highest resistor. 3 225ohm resistors in parallel is 750hms.
A 480 vac step down 240 vac transformer is connected to a 3 phase rectifier. What will be the
output? - ANS-320 VDC
A car traveling in the hoistway always stops at the same spot and blows a fuse. What causes
this? - ANS-Traveling cable has a cut/exposed wire or a short
A car weighs 2500 lbs with a capacity of 2500 lbs. The CWT is weighted at 40%. How much is
the motor lifting at 100% load? - ANS-1500 lbs. 2500x40%=1000 lbs, 2500+1000=3500,
5000-3500= 1500lbs
A car with a selective collective controller is moving to the lobby to pick a call. An up call is put
in at the second floor. What happens? - ANS-Call is bypassed til the car is moving in the up
direction.
A contractor wants to raise the car speed from 100fpm to 125fpm, it currently has a 12" sheave.
What sheave is required? - ANS-Diam=12" 12/4=3" 25fpm=3" 100fpm + 25fpm= 12"+3"= 15"
sheave
A force of 500lbs is applied to a plunger with an area of 25 sq in, what is the system pressure?
- ANS-200 psi. Note: 5000lbs/ 25 sq in= 200psi P=F/A
A hydro runs up with no load, but will not run with a full load. What is the issue? - ANS-The
relief valve is set too low
A motor needs a sleeve bearing replaced. What type of bearing will you need? - ANS-Friction
Bearing (420)
A MOV (Metal Oxide Varistor) burns out. You replace it, but cannot read voltage or resistance.
What should you do? - ANS-Replace it with a larger MOV
A vertical platform lift has a clearance of 1in. How much will it have to be moved to meet code?
- ANS-
, At what distance from closed does the gate switch operate? - ANS-2"
At what speed should the governor switch contact be set to open? - ANS-90 - 95% of Governor
tripping speed.
Car doors are dragging on the sill. How high should they be raised to be code compliant? -
ANS-¼"
Car is loaded with 125% and sinks. Why? - ANS-Slipping through the break
Car will not travel to2nd floor without a 3rd floor call, and will not go down from 3rd without a
2nd floor call. What is the problem? - ANS-2FI4/6
During construction the omega CWT rails have been damaged. Why? - ANS-Overtightened
from rail bracket. (215)
During construction you land an escalator, but it is 10mm too low. What is wrong? - ANS-Pit is
to deep or column mark is off.( 825)
Given a generator runs at 600 RPM and has 4 poles is the output frequency ? - ANS-600/60
sec=10x2=20Hz
How do emergency doors swing? - ANS-outwards
How do you cut a finished floor material? - ANS-Cutting blade away from the finish
How do you handle a coworker who shows up to work intoxicated? - ANS-Speak to the MIC,
Union BA or call your Supervisor.
How do you test the safety circuit? - ANS-You test all switches Independently.
How does a GFI work? - ANS-Detects an imbalance between Hot and Neutral Wires
How is a class 1 yearly buffer test preformed? - ANS-Car at bottom landing and on inspection,
jump out direction and final limits. With pit clear, run down to compress buffers, buffers should
fully extend within 90 seconds.
5yr: Full load Full speed
CWT: Full speed Empty
How is stainless steel drilled out? - ANS-Slow speed and constant pressure (205)
How many points of contact must be maintained on a ladder? - ANS-3 points at all time.
On a 350-foot raceway, how many strain supports are required? ANS-4: one for every 100 feet.
How many traveling wires are required for the following circuit? Exclude spares. -
ANS-BCE-------SPI/
BCD-----SP2/BCD-----SP4/BCD-----UR1/BCE-----UR2/BCD-----DR1/CRE-----DR2/GRD
ANSWER 11
How much resistance is measured over a normally closed switch? - ANS-1.2ohms. should be
zero, but will
never be that low
How must oxygen and acetylene tanks be stored? - ANS-Vertically, 12 feet apart, or on a cart
with a ½ hour fire barrier between them
If a dumbwaiter has 9 sq ft in area,4 ft high and the rated capacity is 13.9 lb/ft3 what is the total
capacity? - ANS-500 lb/ft3.( 3.2.9) note: The area of a dumbwaiter is 9sq ft max and is 4ft high.
Multiply that by 13.9.
If and XOR gate was connected to a NOR gate and attached to an AND gate with a high
output. What must the input at the XOR gate A and B? - ANS-Both must be high. Or both low
