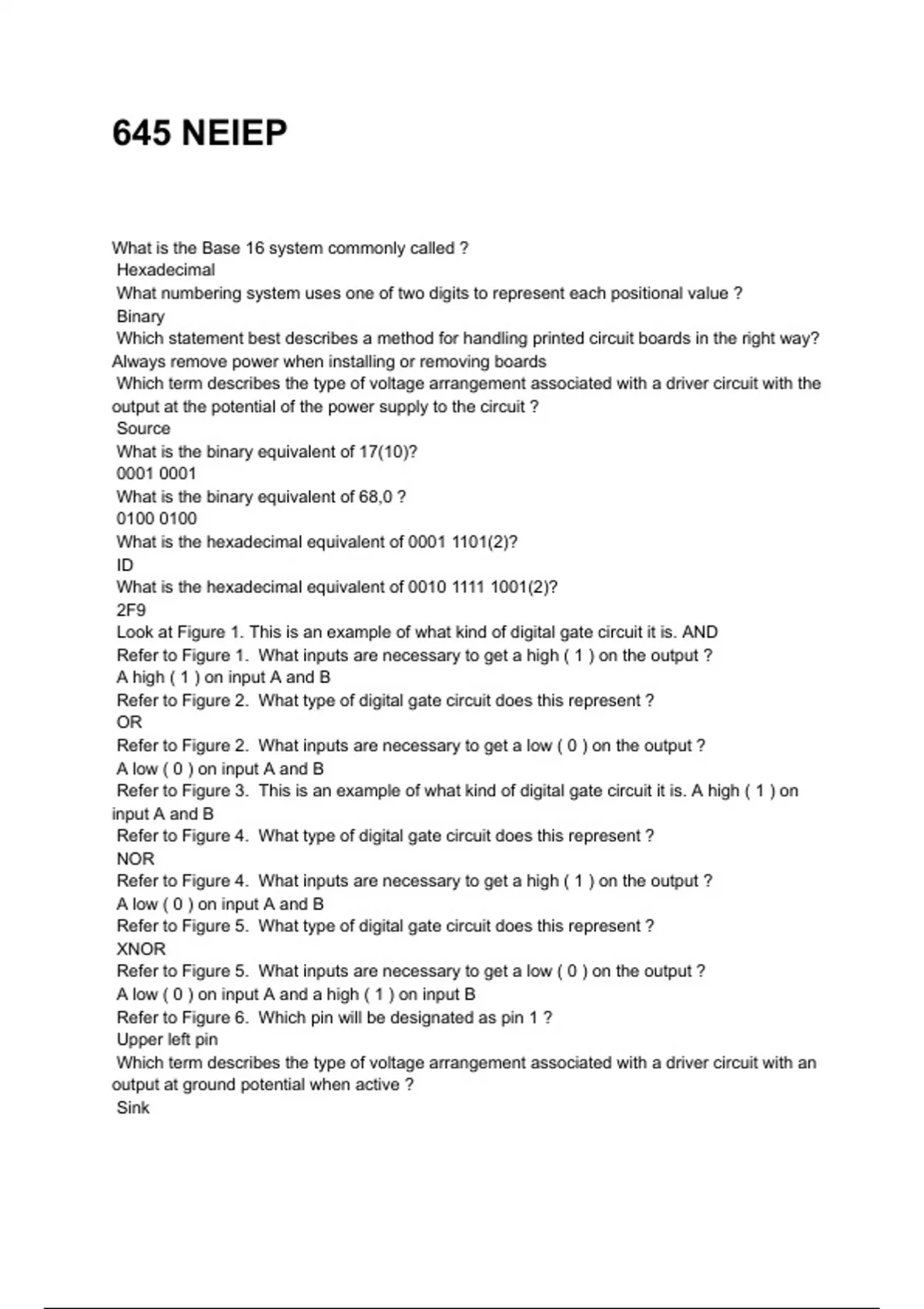

645 NEIEP
What is the Base 16 system commonly called ?
Hexadecimal
What numbering system uses one of two digits to represent each positional value ?
Binary
Which statement best describes a method for handling printed circuit boards in the right way?
Always remove power when installing or removing boards
Which term describes the type of voltage arrangement associated with a driver circuit with the
output at the potential of the power supply to the circuit ?
Source
What is the binary equivalent of 17(10)?
0001 0001
What is the binary equivalent of 68,0 ?
0100 0100
What is the hexadecimal equivalent of 0001 1101(2)?
ID
What is the hexadecimal equivalent of 0010 1111 1001(2)?
2F9
Look at Figure 1. This is an example of what kind of digital gate circuit it is. AND
Refer to Figure 1. What inputs are necessary to get a high ( 1 ) on the output ?
A high ( 1 ) on input A and B
Refer to Figure 2. What type of digital gate circuit does this represent ?
OR
Refer to Figure 2. What inputs are necessary to get a low ( 0 ) on the output ?
A low ( 0 ) on input A and B
Refer to Figure 3. This is an example of what kind of digital gate circuit it is. A high ( 1 ) on
input A and B
Refer to Figure 4. What type of digital gate circuit does this represent ?
NOR
Refer to Figure 4. What inputs are necessary to get a high ( 1 ) on the output ?
A low ( 0 ) on input A and B
Refer to Figure 5. What type of digital gate circuit does this represent ?
XNOR
Refer to Figure 5. What inputs are necessary to get a low ( 0 ) on the output ?
A low ( 0 ) on input A and a high ( 1 ) on input B
Refer to Figure 6. Which pin will be designated as pin 1 ?
Upper left pin
Which term describes the type of voltage arrangement associated with a driver circuit with an
output at ground potential when active ?
Sink
