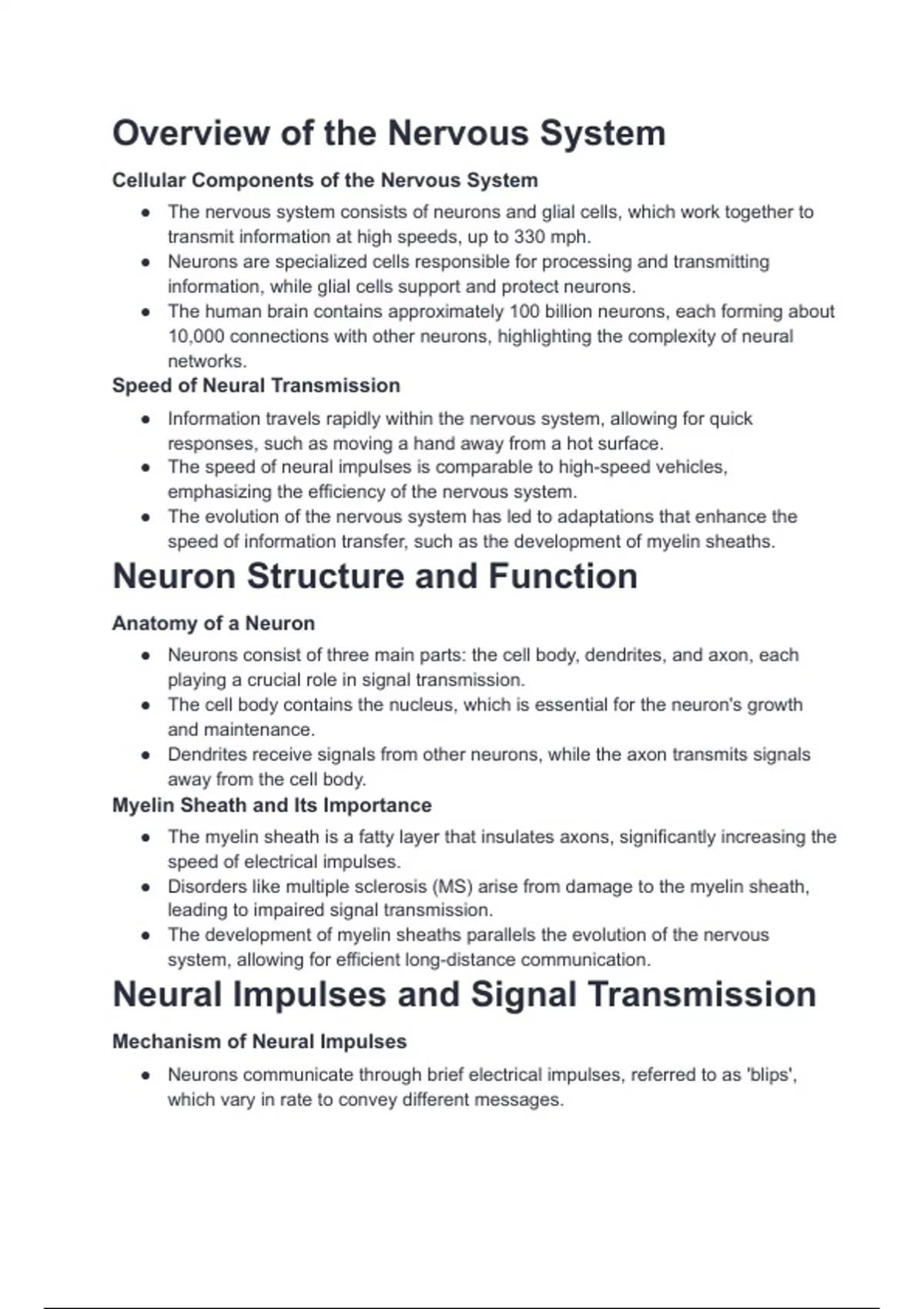

Overview of the Nervous System
Cellular Components of the Nervous System
● The nervous system consists of neurons and glial cells, which work together to
transmit information at high speeds, up to 330 mph.
● Neurons are specialized cells responsible for processing and transmitting
information, while glial cells support and protect neurons.
● The human brain contains approximately 100 billion neurons, each forming about
10,000 connections with other neurons, highlighting the complexity of neural
networks.
Speed of Neural Transmission
● Information travels rapidly within the nervous system, allowing for quick
responses, such as moving a hand away from a hot surface.
● The speed of neural impulses is comparable to high-speed vehicles,
emphasizing the efficiency of the nervous system.
● The evolution of the nervous system has led to adaptations that enhance the
speed of information transfer, such as the development of myelin sheaths.
Neuron Structure and Function
Anatomy of a Neuron
● Neurons consist of three main parts: the cell body, dendrites, and axon, each
playing a crucial role in signal transmission.
● The cell body contains the nucleus, which is essential for the neuron's growth
and maintenance.
● Dendrites receive signals from other neurons, while the axon transmits signals
away from the cell body.
Myelin Sheath and Its Importance
● The myelin sheath is a fatty layer that insulates axons, significantly increasing the
speed of electrical impulses.
● Disorders like multiple sclerosis (MS) arise from damage to the myelin sheath,
leading to impaired signal transmission.
● The development of myelin sheaths parallels the evolution of the nervous
system, allowing for efficient long-distance communication.
Neural Impulses and Signal Transmission
Mechanism of Neural Impulses
● Neurons communicate through brief electrical impulses, referred to as 'blips',
which vary in rate to convey different messages.
, ● The axon membrane is semipermeable, allowing ions to flow in and out,
generating electrical signals.
● The movement of ions, particularly sodium and potassium, is crucial for the
generation of action potentials, the electrical impulses that travel along the axon.
Ion Channels and Electrical Activity
● Ion channels in the axon membrane open and close to regulate the flow of ions,
creating electrical signals.
● The balance of positive and negative ions inside and outside the neuron is
essential for maintaining the neuron's resting potential and generating action
potentials.
● The rapid opening and closing of ion channels during an action potential leads to
the propagation of the neural impulse along the axon.
Ion Movement and Membrane Potential
Ion Channels and Resting Potential
● Ion channels are specialized proteins that open and close to regulate the flow of
ions across the neuronal membrane, crucial for maintaining the resting potential.
● In a resting neuron, the inside of the cell is negatively charged (approximately -70
mV), while the outside is positively charged, creating a polarized state.
● The resting potential is essential for the neuron's ability to transmit signals; it is
maintained by the sodium-potassium pump, which actively transports sodium out
and potassium into the cell.
● The difference in charge across the membrane is due to the unequal distribution
of ions, primarily sodium (Na+) and potassium (K+).
● Figure 3 illustrates the resting potential, showing the voltage difference measured
by an oscilloscope between the inside and outside of the axon.
● The resting potential is critical for the neuron's readiness to fire an action
potential when stimulated.
Action Potential Mechanism
● An action potential is a rapid change in membrane potential that occurs when a
neuron is activated, characterized by a brief wave of positive charge.
● The process begins when a stimulus raises the neuron's voltage to a threshold
level, causing sodium channels to open and Na+ ions to rush into the neuron,
leading to depolarization.
● Following depolarization, potassium channels open, allowing K+ ions to exit the
neuron, which helps to repolarize the membrane back to its resting state.
● The all-or-nothing principle states that once the threshold is reached, the action
potential will fire with full intensity, similar to a firecracker fuse igniting.
