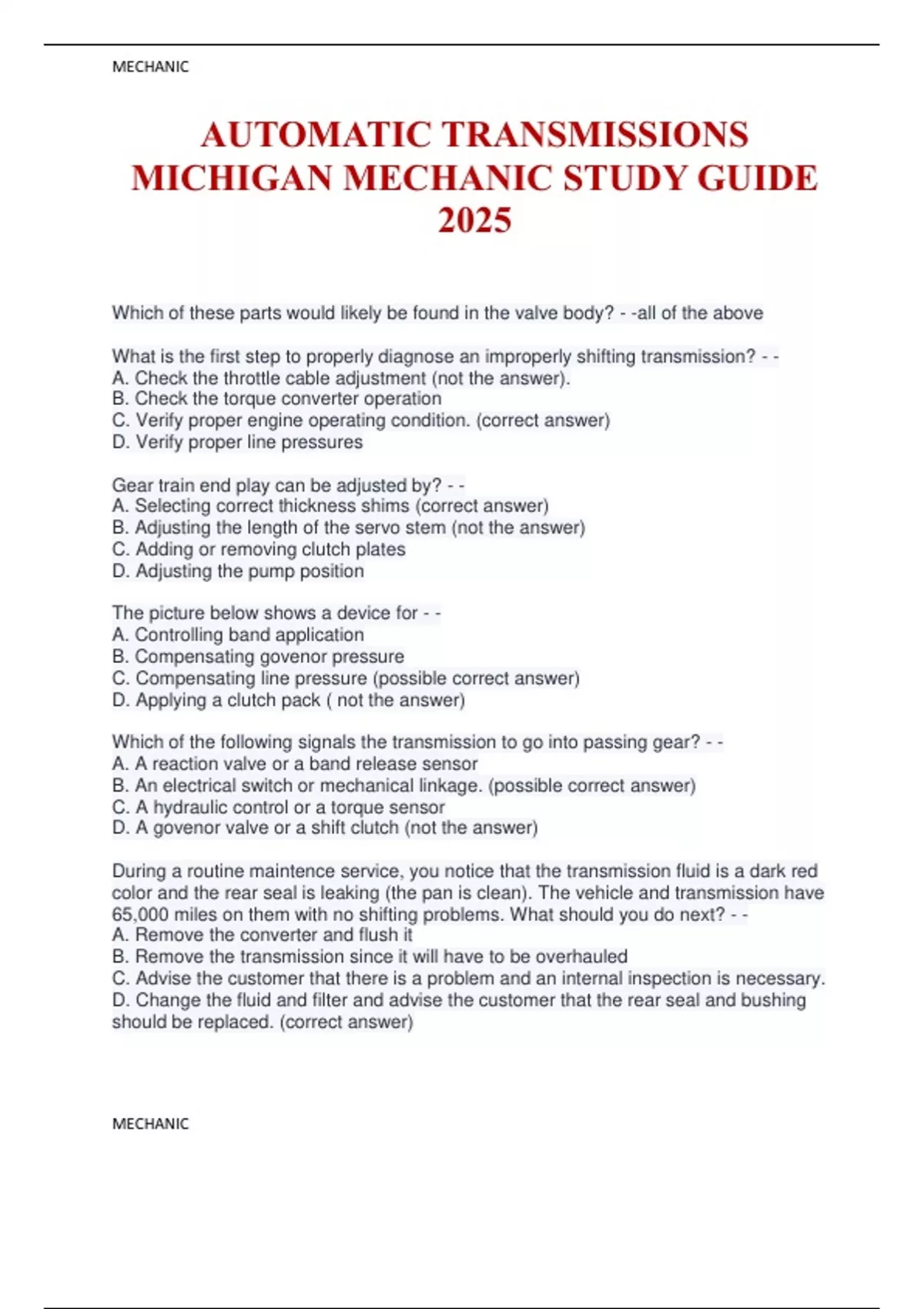

AUTOMATIC TRANSMISSIONS MICHIGAN MECHANIC STUDY GUIDE 2025

Which of these parts would likely be found in the valve body? - -all of the above What is the first step to properly diagnose an improperly shifting transmission? - - A. Check the throttle cable adjustment (not the answer). B. Check the torque converter operation C. Verify proper engine operating condition. (correct answer) D. Verify proper line pressures Gear train end play can be adjusted by? - - A. Selecting correct thickness shims (correct answer) B. Adjusting the length of the servo stem (not the answer) C. Adding or removing clutch plates D. Adjusting the pump position The picture below shows a device for - - A. Controlling band application B. Compensating govenor pressure C. Compensating line pressure (possible correct answer) D. Applying a clutch pack ( not the answer) Which of the following signals the transmission to go into passing gear? - - A. A reaction valve or a band release sensor B. An electrical switch or mechanical linkage. (possible correct answer) C. A hydraulic control or a torque sensor D. A govenor valve or a shift clutch (not the answer) During a routine maintence service, you notice that the transmission fluid is a dark red color and the rear seal is leaking (the pan is clean). The vehicle and transmission have 65,000 miles on them with no shifting problems. What should you do next? - - A. Remove the converter and flush it B. Remove the transmission since it will have to be overhauled C. Advise the customer that there is a problem and an internal inspection is necessary. D. Change the fluid and filter and advise the customer that the rear seal and bushing should be replaced. (correct answer) MECHANIC MECHANIC A car with a 3 speed automatic transmission works okay in forward gears but slips in reverse and does not have engine braking in manual low. What could cause this problem? - - A. A defective sprag clutch B. A defective input shaft bearing (not the answer) C. A worn planetary gear set D. A defective rear band. (possible correct answer) How are the shift points changed to adjust for the power demands of the driver? - - A. By vacuum or mechanical linkage (possible correct answer) B. By a spring in the regulator valve (not the answer) C. By an ambient pressure sensor D. None of the above A car upshifts late and harsh. There is no slippage and the closed throttle downshifts are okay. What should you do first? - - A. Check the throttle linkage or modulator B. Changed the fluid and filter (possible correct answer) C. Adjust the pressure regulator. D. Check clutch pack clearance. (not the answer) When two members of a planetary gear set are locked together, the output shaft: - - A. Turns in the same direction as the input shaft B. Turns at the same speed as the input shaft (correct answer) C. Does not run D. Turns in the opposite direction as the input shaft. (not the answer) If direct and forward clutch packs in a common 3 speed automatic transmission are applied at the same time. What will the resulting condition be? - - A. Direct drive B. Low gear C. Reverse gear D. A jammed or locked up transmission, with no drive, forward or reverse. (not the awnser) In the picture below the mechanic is checking: - - A. Pump driven gear tip clearence B. Pump body to case seal C. Gear contact pattern D. Pump body to gear face clearance. (correct answer) Multiple-disc clutch packs in automatic transmissions are usually applied by: - - A. Hydraulic pressure on a piston. (correct answer) B. Spring pressure C. Govenor pressure D. Spring pressure and a roller clutch. (not the answer) MECHANIC MECHANIC Which of the following is likely to cause burned clutch plate bands? - - A. Internal leaks due to damaged seals. (correct answer) B. A defective governor. C. A leaking modulator. D. None of the above. Automatic transmission fluid that looks like a chocolate milkshake may indicate: - - A. A leaking radiator cooler. (correct answer) B. Too much automatic transmission fluid(overfilled). C. A sticking pressure relief valve. D. The fluid is aerated. (not the answer) A transaxel assembly: - -a. Always bolts directly to the differential. B. Is a transmission and differential assembly in one common case. (correct answer) C. Is exlusively front wheel drive. D. Has no vent. What would be the result if the sun gear was the input member, the carrier was held, and the ring gear was the output member? - - A. Direct drive B. Overdrive (not the answer) C. Torque reduction D. Reverse When checking a spool valve from the valve body, you notice it has very square ans sharp edges on its lands. What should you do? - - A. Gently chamfer the land edges with a fine sharpening stone. (not the answer) B. Nothing. This is a desirable condition. C. Replace the spool valve with a new one of the exact same part number. D. Smooth the edges with crocus cloth to restore a slight chamfer. High engine idle speed will likely cause: - - A. Harsh engagement from neutral to drive. B. Low line pressure and early upshifts. (possible correct answer) C. Direct upshift from first to third. D. All of the above. (not the answer) You have removed the transmission from a car and the torque converter. What should you do next? - - A. Measure and record input shaft endplay. (correct answer) B. Remove the pump. C. Measure clutch pack clearances. D. Inspect for planetary gear set wear. You are checking the fluid level in a transmission. Which of the following is correct? - - MECHANIC MECHANIC A. The level will be low when cold and rise when hot. (correct answer) B. The level will be high when cold and drop when hot. C. The level will not be affected by its temperature as long as the vehicle is parked on a level surface. (not the answer) D. The level may be low when cold on some vehicles and high on others. Incorrect adjustment of the linkage between the shift lever and the manual valve could cause: - - A. Slippage of clutches and bands B. Delayed clutch application. C. Early transmission failure. D. All of the above. (correct answer) A vehicle wont downshift into passing gear. The likely cause could be: - - A. The govenor valve is malfunctioning. B. A worn 2-3 shift rail. C. The throttle cable or linkage is out of adjustment. (correct answer) D. None of the above. Which of the following should be the average line pressure in drive at idle? - - A. 10-15 psi B. 50-70 psi (not the answer) C. 80-95 psi (possible correct answer) D. 125-140 psi As engine vacuum drops, the modulator pressure: - - A. Does not change B. Decreases C. Is compensated for by the manual valve. (not the answer) D. Increases A car upshifts early and wont go into passing gear at wide open throttle above 45 mph. What is the most likely cause of this problem? - - A. Shift valves stuck in valve body (possible correct ANSWER) B. Improperly adjusted throttle linkage C. Servo accumulator assembly stuck (not correct answer) D. Bad vacuum modulator A worn govenor bore can cause : - -a. Increased line pressure B. High modulator pressure C. Slipping when starting off in low gear (not correct answer) D. Failure to shift out of low gear A car has no drive in any range, forward or reverse. The fluid level is okay. What is the most likely cause? - -a. Air leak in direct clutch B. Seized stator in the torque converter (not correct answer) MECHANIC MECHANIC C. Very low oil pressure (correct answer) D. Blown govenor seal or o-ring A transmission is noisey in reduction ranges and reverse, but sounds normal in direct drive. What is the most likely cause? - - A. Scored surface where bands grip the internal housing. (not correct answer) B. Worn pump or regulator valve. C. Pitted thrust bearing surfaces at converter turbine. D. Worn planetary gear set or thrust bearings. (possible correct answer) What should you do with transmission cooler lines during a normal rebuild? - - A. Replace them (possible correct answer) B. Check them for internal rusting by squeezing them with channel locks. (not correct awnser) C. Flush them to remove foreign ma
