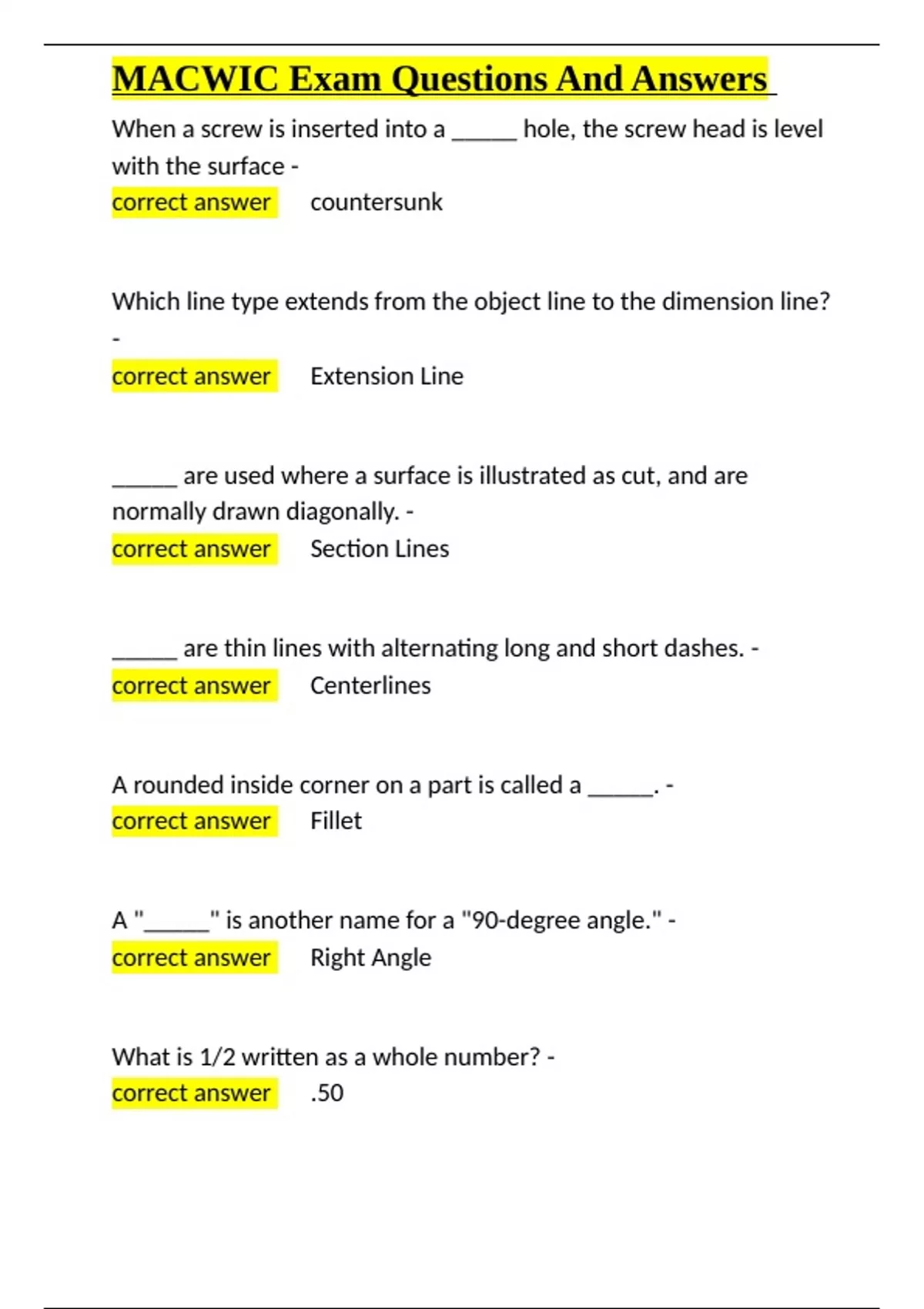

MACWIC Exam Questions And Answers
When a screw is inserted into a _____ hole, the screw head is level
with the surface -
correct answer ✅countersunk
Which line type extends from the object line to the dimension line?
-
correct answer ✅Extension Line
_____ are used where a surface is illustrated as cut, and are
normally drawn diagonally. -
correct answer ✅Section Lines
_____ are thin lines with alternating long and short dashes. -
correct answer ✅Centerlines
A rounded inside corner on a part is called a _____. -
correct answer ✅Fillet
A "_____" is another name for a "90-degree angle." -
correct answer ✅Right Angle
What is 1/2 written as a whole number? -
correct answer ✅.50
