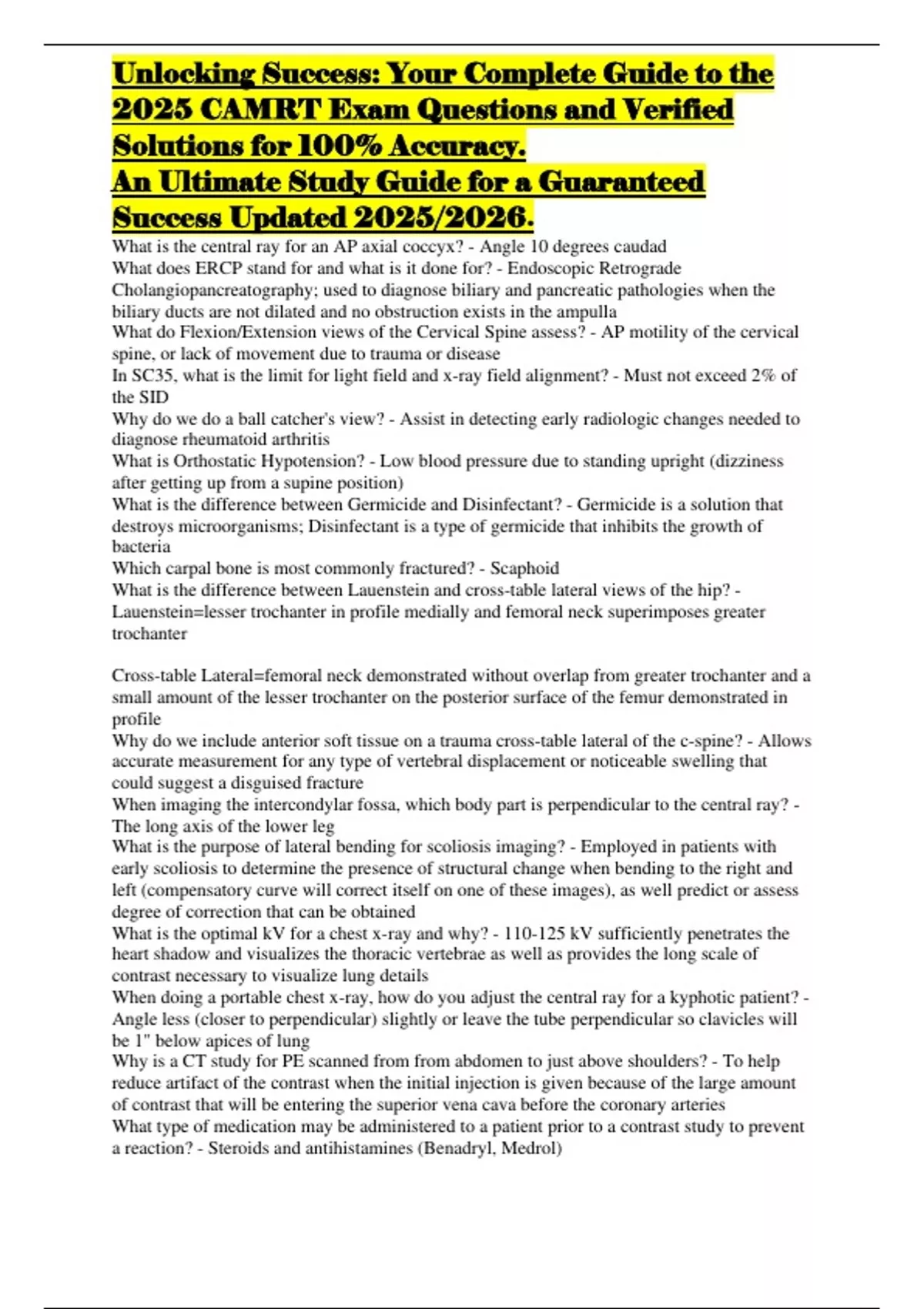

Unlocking Success: Your Complete Guide to the
2025 CAMRT Exam Questions and Verified
Solutions for 100% Accuracy.
An Ultimate Study Guide for a Guaranteed
Success Updated 2025/2026.
What is the central ray for an AP axial coccyx? - Angle 10 degrees caudad
What does ERCP stand for and what is it done for? - Endoscopic Retrograde
Cholangiopancreatography; used to diagnose biliary and pancreatic pathologies when the
biliary ducts are not dilated and no obstruction exists in the ampulla
What do Flexion/Extension views of the Cervical Spine assess? - AP motility of the cervical
spine, or lack of movement due to trauma or disease
In SC35, what is the limit for light field and x-ray field alignment? - Must not exceed 2% of
the SID
Why do we do a ball catcher's view? - Assist in detecting early radiologic changes needed to
diagnose rheumatoid arthritis
What is Orthostatic Hypotension? - Low blood pressure due to standing upright (dizziness
after getting up from a supine position)
What is the difference between Germicide and Disinfectant? - Germicide is a solution that
destroys microorganisms; Disinfectant is a type of germicide that inhibits the growth of
bacteria
Which carpal bone is most commonly fractured? - Scaphoid
What is the difference between Lauenstein and cross-table lateral views of the hip? -
Lauenstein=lesser trochanter in profile medially and femoral neck superimposes greater
trochanter
Cross-table Lateral=femoral neck demonstrated without overlap from greater trochanter and a
small amount of the lesser trochanter on the posterior surface of the femur demonstrated in
profile
Why do we include anterior soft tissue on a trauma cross-table lateral of the c-spine? - Allows
accurate measurement for any type of vertebral displacement or noticeable swelling that
could suggest a disguised fracture
When imaging the intercondylar fossa, which body part is perpendicular to the central ray? -
The long axis of the lower leg
What is the purpose of lateral bending for scoliosis imaging? - Employed in patients with
early scoliosis to determine the presence of structural change when bending to the right and
left (compensatory curve will correct itself on one of these images), as well predict or assess
degree of correction that can be obtained
What is the optimal kV for a chest x-ray and why? - 110-125 kV sufficiently penetrates the
heart shadow and visualizes the thoracic vertebrae as well as provides the long scale of
contrast necessary to visualize lung details
When doing a portable chest x-ray, how do you adjust the central ray for a kyphotic patient? -
Angle less (closer to perpendicular) slightly or leave the tube perpendicular so clavicles will
be 1" below apices of lung
Why is a CT study for PE scanned from from abdomen to just above shoulders? - To help
reduce artifact of the contrast when the initial injection is given because of the large amount
of contrast that will be entering the superior vena cava before the coronary arteries
What type of medication may be administered to a patient prior to a contrast study to prevent
a reaction? - Steroids and antihistamines (Benadryl, Medrol)
,Unlocking Success: Your Complete Guide to the
2025 CAMRT Exam Questions and Verified
Solutions for 100% Accuracy.
An Ultimate Study Guide for a Guaranteed
Success Updated 2025/2026.
What is Spatial Resolution? - The ability of an imaging process to distinguish small, adjacent,
high-contrast structures in the object
What should you do if a nurse forgets to chart a medication during an Intravenous pyelogram
(IVP)? - Bring any omissions to their attention - any item that has not been documented on
the chart is
considered to be "not performed" in a court of law
What does penumbra effect? - Recorded detail
What is the Line Focus Principle? - Through angling the target, the effective area of the target
is made much smaller than the actual area of electron interaction (smaller anode
angle=smaller effective focal spot, larger anode angle=larger effective focal spot)
How do you know if an oblique image of the L-spine is over-rotated? - The pedicles sit too
far posterior on vertebral bodies (Remember: ***PP, too much***=posterior pedicles)
What is a PICC line? What is its position and purpose? - Peripherally Inserted Central
Catheter; placed in brachiocephalic vein at the junction of the SVC or actually within the
SVC itself; used for measuring central venous pressure as well as allowing nutrients and fluid
to be instilled
What is the position and purpose of a Swan-Ganz catheter? - Placed in right or left pulmonary
artery; used to measure wedge pressure, central venous pressure, systolic, diastolic, and mean
pressure, to withdraw blood samples, and to inject drugs or administer fluids
What are the three layers of mater surrounding the brain? - From outer to inner: Dura,
Arachnoid, and Pia
What is the appearance of a subdural hematoma on a CT (acute and chronic) and the likely
cause of one? - Acute subdural hematoma will have a crescent-shaped peripheral high-density
lesion; Chronic
Subdural hematoma appears as an isodense lesion; They usually result from trauma, and is
venous
bleeding from ruptured veins between the dura and meninges
What is the pathology demonstrated in the CT head image? - Glioma (Glioblastoma)
What is the pixel value for a detector of 18? - 2^18 = 262144. (The pixel value formula is
2^x, where x is the number given)
Why should scoliosis images be performed PA? - To reduce radiation exposure to selected
radiosensitive organs
Why is an ERCP exam contraindicated if the patient has a pancreatic pseudocyst? - A
pseudocyst is a dilated space, resembling a cyst, with a collection of fluid and necrotic debris.
The biliary and digestive systems can become compressed with some cysts, thus using a
scope to enter the ducts could cause a hemorrhage or rupture of the cyst if the scope were to
accidently hit or penetrate the cyst. On that note, the injection of x-ray contrast is
contraindicated and would NOT be used as the fluid will collect and as well could rupture the
cyst
What is demonstrated on a 15-degree occipitofrontal view of the sinuses? - Frontal sinuses
lying superior to the frontonasal suture, anterior ethmoidal air cells lying on each side of the
nasal fossas and immediately inferior to the frontal sinuses, sphenoid sinuses projected
through the nasal fossas just inferior to or in between the ethmoid air cells, and petrous ridges
lying in the lower third of the orbits
,Unlocking Success: Your Complete Guide to the
2025 CAMRT Exam Questions and Verified
Solutions for 100% Accuracy.
An Ultimate Study Guide for a Guaranteed
Success Updated 2025/2026.
What is the difference between Spondylolysis and Spondylolisthesis? - Spondylolysis=the
breaking down of a vertebra, or replacement of a portion of the vertebral arch with cartilage;
refers to a defect in the pars interarticularis without displacement; Spondylolisthesis=forward
displacement of a vertebra over a lower segment, usually of the 4 th or 5 th lumbar,
frequently due to spondylolysis
What is a Bennett's Fracture? - Oblique fracture of the base of the first metacarpal, possibly
with proximal and lateral subluxation of metacarpal shaft that extends into first
carpometacarpal joint; usually caused by FOOSH
What is a Pott's Fracture? - Fracture of the ankle, involving the malleoli: First degree
Pott's=fractures involving one malleolus, Second degree Pott's (bimalleolar)=fractures
involving both malleoli, Third degree Pott's (trimalleolar)=bimalleolar fracture with a fracture
of the posteroinferior surface of the tibia
What is a Compound Fracture? - A wound in communication with the fracture; susceptible to
infection; blood loss may be significant
Explain what a comminuted fracture is and the two different types. - Fracture with more than
two bone fragments; Segmental=divides the long bone into several fragments;
Butterfly=wedge-shaped fragment split off from the main fragment
What is considered the Sterile Corridor? - The area in the operating room between the patient
drape and the instrument table
How should the lower extremity be rotated for an AP projection of the proximal femur? - 15
degrees internally
What part of the gown is considered sterile in the OR? - From the waist to the shoulders in
the front, and the sleeves from 2" above the elbow to the cuffs
What does COW stand for? - Circle of Willis
What is number 1 in the picture? - Anterior Cerebral Artery
Study the Circle of Willis -
Describe the hip localization method - Imagine a line from the ASIS to symphysis pubis and
at midpoint of that line, imagine a perpendicular line, moving 1.5" distally to locate the
femoral head. This perpendicular line will also aid in judging the angle of the femoral neck.
The two will be exactly the same
What is the central ray for an AP knee image on patient who is considered to have a sthenic
body habitus? - Perpendicular to the knee joint
What is included on a CT head? - From base of skull to cranial vertex
Which vessel ascends through the cervical transverse foramina? - Vertebral artery
What three vessels provide oxygenated blood to the heart? - The left and right Coronary
Arteries and the Circumflex Artery
What are the two types of target interactions that can produce diagnostic-range x-ray
photons? - Bremsstrahlung and Characteristic
What should be superimposed on an ideal AP Odontoid that clearly demonstrates the tip of
the dens? - Occlusal surface of upper central incisors and the base of the skull
Why are patients to remain NPO prior to any surgical procedures? - They should have
nothing by mouth to reduce any chance of aspiration caused by any nausea experienced
during the procedure
, Unlocking Success: Your Complete Guide to the
2025 CAMRT Exam Questions and Verified
Solutions for 100% Accuracy.
An Ultimate Study Guide for a Guaranteed
Success Updated 2025/2026.
List exams from highest to lowest dose: lumbar spine, KUB, chest, BE - 1. Barium Enema
(Constant Fluoro, usually followed by plain radiography images)
2. Lumbar Spine (80-90 KVP, {Lateral 40+mAs})
3. KUB (80-90KVP, average 20-40mAs)
4. Chest (125 KVP, average 5-10mAs)
A patient has a known history of angina and is experiencing symptoms similar to a heart
attack. What medication will likely be given to reduce the symptoms and treat this patient? -
Nitroglycerine
A trauma patient has a CT scan for their head and an augmented Chest, Abdomen, Pelvis.
Why is the head
done first? - Because a brain bleed or other pathologies can be identified prior to contrast
being introduced since the contrast appears white and similar to that of a fresh brain bleed;
the contrast study of the Chest, Abdomen, would leave contrast stuck in the Blood Brain
Barrier for up to 10 hours before it clears out
What is the letter I in the picture? - Common Bile Duct
Study the radiographic anatomy visualized in an ERCP exam -
What is the minimum number of people required for a log roll? - Five: one at the head of the
patient and two at each side
What is the Fowler's position? - Patient recumbent with head of the bed raised 40-60 degrees
What are the carpal bones in the proximal row in order from medial to lateral? - Pisiform,
Triquetrum, Lunate, Scaphoid
What does ASIS stand for? - Anterior superior iliac spine
What are two ways that mis-registration can occur in an Angiography case? - Voluntary and
involuntary motion
How is pixel shifting utilized in DSA exams? - If mis-registration occurs due to either
voluntary or involuntary motion, pixel shifting allows you to shift the mask image so that the
mask and injection images superimpose and subtract bone and soft tissue
What is the name of the method used to introduce a catheter and guide wire into a blood
vessel safely? - Seldinger Technique
In which directions do you insert an enema tip? - Anteriorly and superiorly
What are the two routine projections/views for mammography imaging? - MLO
(Mediolateral Oblique) & CC (Craniocaudal)
Which mammography view requires the pectoral muscle on the posterior edge of the breast,
retromammary tissue, and the nipple in profile? - Craniocaudal View
How do you know if a FB is in the esophagus and not the trachea? - If a foreign body is in the
trachea, the lung(s) will still have air in them on the expiration radiograph of the chest,
whereas a FB in the esophagus will have no effect on the lung size/markings
What does quantum mottle indicate? - An insufficient quantity of photons have stricken the
intensifying screen due to low mAs
What is normal blood pressure? - 110-120 mmHg systolic, 60-80 mmHg diastolic
If the SID is 40", the SOD is 38", and the OID is 2". What is the magnification factor? -
M=SID/SOD =40/38 =1.05
How does Automatic Gain Control change the exposure factors during a fluoroscopic exam?
- No effect; It is a function of the video camera control system that adjust the screen/camera
2025 CAMRT Exam Questions and Verified
Solutions for 100% Accuracy.
An Ultimate Study Guide for a Guaranteed
Success Updated 2025/2026.
What is the central ray for an AP axial coccyx? - Angle 10 degrees caudad
What does ERCP stand for and what is it done for? - Endoscopic Retrograde
Cholangiopancreatography; used to diagnose biliary and pancreatic pathologies when the
biliary ducts are not dilated and no obstruction exists in the ampulla
What do Flexion/Extension views of the Cervical Spine assess? - AP motility of the cervical
spine, or lack of movement due to trauma or disease
In SC35, what is the limit for light field and x-ray field alignment? - Must not exceed 2% of
the SID
Why do we do a ball catcher's view? - Assist in detecting early radiologic changes needed to
diagnose rheumatoid arthritis
What is Orthostatic Hypotension? - Low blood pressure due to standing upright (dizziness
after getting up from a supine position)
What is the difference between Germicide and Disinfectant? - Germicide is a solution that
destroys microorganisms; Disinfectant is a type of germicide that inhibits the growth of
bacteria
Which carpal bone is most commonly fractured? - Scaphoid
What is the difference between Lauenstein and cross-table lateral views of the hip? -
Lauenstein=lesser trochanter in profile medially and femoral neck superimposes greater
trochanter
Cross-table Lateral=femoral neck demonstrated without overlap from greater trochanter and a
small amount of the lesser trochanter on the posterior surface of the femur demonstrated in
profile
Why do we include anterior soft tissue on a trauma cross-table lateral of the c-spine? - Allows
accurate measurement for any type of vertebral displacement or noticeable swelling that
could suggest a disguised fracture
When imaging the intercondylar fossa, which body part is perpendicular to the central ray? -
The long axis of the lower leg
What is the purpose of lateral bending for scoliosis imaging? - Employed in patients with
early scoliosis to determine the presence of structural change when bending to the right and
left (compensatory curve will correct itself on one of these images), as well predict or assess
degree of correction that can be obtained
What is the optimal kV for a chest x-ray and why? - 110-125 kV sufficiently penetrates the
heart shadow and visualizes the thoracic vertebrae as well as provides the long scale of
contrast necessary to visualize lung details
When doing a portable chest x-ray, how do you adjust the central ray for a kyphotic patient? -
Angle less (closer to perpendicular) slightly or leave the tube perpendicular so clavicles will
be 1" below apices of lung
Why is a CT study for PE scanned from from abdomen to just above shoulders? - To help
reduce artifact of the contrast when the initial injection is given because of the large amount
of contrast that will be entering the superior vena cava before the coronary arteries
What type of medication may be administered to a patient prior to a contrast study to prevent
a reaction? - Steroids and antihistamines (Benadryl, Medrol)
,Unlocking Success: Your Complete Guide to the
2025 CAMRT Exam Questions and Verified
Solutions for 100% Accuracy.
An Ultimate Study Guide for a Guaranteed
Success Updated 2025/2026.
What is Spatial Resolution? - The ability of an imaging process to distinguish small, adjacent,
high-contrast structures in the object
What should you do if a nurse forgets to chart a medication during an Intravenous pyelogram
(IVP)? - Bring any omissions to their attention - any item that has not been documented on
the chart is
considered to be "not performed" in a court of law
What does penumbra effect? - Recorded detail
What is the Line Focus Principle? - Through angling the target, the effective area of the target
is made much smaller than the actual area of electron interaction (smaller anode
angle=smaller effective focal spot, larger anode angle=larger effective focal spot)
How do you know if an oblique image of the L-spine is over-rotated? - The pedicles sit too
far posterior on vertebral bodies (Remember: ***PP, too much***=posterior pedicles)
What is a PICC line? What is its position and purpose? - Peripherally Inserted Central
Catheter; placed in brachiocephalic vein at the junction of the SVC or actually within the
SVC itself; used for measuring central venous pressure as well as allowing nutrients and fluid
to be instilled
What is the position and purpose of a Swan-Ganz catheter? - Placed in right or left pulmonary
artery; used to measure wedge pressure, central venous pressure, systolic, diastolic, and mean
pressure, to withdraw blood samples, and to inject drugs or administer fluids
What are the three layers of mater surrounding the brain? - From outer to inner: Dura,
Arachnoid, and Pia
What is the appearance of a subdural hematoma on a CT (acute and chronic) and the likely
cause of one? - Acute subdural hematoma will have a crescent-shaped peripheral high-density
lesion; Chronic
Subdural hematoma appears as an isodense lesion; They usually result from trauma, and is
venous
bleeding from ruptured veins between the dura and meninges
What is the pathology demonstrated in the CT head image? - Glioma (Glioblastoma)
What is the pixel value for a detector of 18? - 2^18 = 262144. (The pixel value formula is
2^x, where x is the number given)
Why should scoliosis images be performed PA? - To reduce radiation exposure to selected
radiosensitive organs
Why is an ERCP exam contraindicated if the patient has a pancreatic pseudocyst? - A
pseudocyst is a dilated space, resembling a cyst, with a collection of fluid and necrotic debris.
The biliary and digestive systems can become compressed with some cysts, thus using a
scope to enter the ducts could cause a hemorrhage or rupture of the cyst if the scope were to
accidently hit or penetrate the cyst. On that note, the injection of x-ray contrast is
contraindicated and would NOT be used as the fluid will collect and as well could rupture the
cyst
What is demonstrated on a 15-degree occipitofrontal view of the sinuses? - Frontal sinuses
lying superior to the frontonasal suture, anterior ethmoidal air cells lying on each side of the
nasal fossas and immediately inferior to the frontal sinuses, sphenoid sinuses projected
through the nasal fossas just inferior to or in between the ethmoid air cells, and petrous ridges
lying in the lower third of the orbits
,Unlocking Success: Your Complete Guide to the
2025 CAMRT Exam Questions and Verified
Solutions for 100% Accuracy.
An Ultimate Study Guide for a Guaranteed
Success Updated 2025/2026.
What is the difference between Spondylolysis and Spondylolisthesis? - Spondylolysis=the
breaking down of a vertebra, or replacement of a portion of the vertebral arch with cartilage;
refers to a defect in the pars interarticularis without displacement; Spondylolisthesis=forward
displacement of a vertebra over a lower segment, usually of the 4 th or 5 th lumbar,
frequently due to spondylolysis
What is a Bennett's Fracture? - Oblique fracture of the base of the first metacarpal, possibly
with proximal and lateral subluxation of metacarpal shaft that extends into first
carpometacarpal joint; usually caused by FOOSH
What is a Pott's Fracture? - Fracture of the ankle, involving the malleoli: First degree
Pott's=fractures involving one malleolus, Second degree Pott's (bimalleolar)=fractures
involving both malleoli, Third degree Pott's (trimalleolar)=bimalleolar fracture with a fracture
of the posteroinferior surface of the tibia
What is a Compound Fracture? - A wound in communication with the fracture; susceptible to
infection; blood loss may be significant
Explain what a comminuted fracture is and the two different types. - Fracture with more than
two bone fragments; Segmental=divides the long bone into several fragments;
Butterfly=wedge-shaped fragment split off from the main fragment
What is considered the Sterile Corridor? - The area in the operating room between the patient
drape and the instrument table
How should the lower extremity be rotated for an AP projection of the proximal femur? - 15
degrees internally
What part of the gown is considered sterile in the OR? - From the waist to the shoulders in
the front, and the sleeves from 2" above the elbow to the cuffs
What does COW stand for? - Circle of Willis
What is number 1 in the picture? - Anterior Cerebral Artery
Study the Circle of Willis -
Describe the hip localization method - Imagine a line from the ASIS to symphysis pubis and
at midpoint of that line, imagine a perpendicular line, moving 1.5" distally to locate the
femoral head. This perpendicular line will also aid in judging the angle of the femoral neck.
The two will be exactly the same
What is the central ray for an AP knee image on patient who is considered to have a sthenic
body habitus? - Perpendicular to the knee joint
What is included on a CT head? - From base of skull to cranial vertex
Which vessel ascends through the cervical transverse foramina? - Vertebral artery
What three vessels provide oxygenated blood to the heart? - The left and right Coronary
Arteries and the Circumflex Artery
What are the two types of target interactions that can produce diagnostic-range x-ray
photons? - Bremsstrahlung and Characteristic
What should be superimposed on an ideal AP Odontoid that clearly demonstrates the tip of
the dens? - Occlusal surface of upper central incisors and the base of the skull
Why are patients to remain NPO prior to any surgical procedures? - They should have
nothing by mouth to reduce any chance of aspiration caused by any nausea experienced
during the procedure
, Unlocking Success: Your Complete Guide to the
2025 CAMRT Exam Questions and Verified
Solutions for 100% Accuracy.
An Ultimate Study Guide for a Guaranteed
Success Updated 2025/2026.
List exams from highest to lowest dose: lumbar spine, KUB, chest, BE - 1. Barium Enema
(Constant Fluoro, usually followed by plain radiography images)
2. Lumbar Spine (80-90 KVP, {Lateral 40+mAs})
3. KUB (80-90KVP, average 20-40mAs)
4. Chest (125 KVP, average 5-10mAs)
A patient has a known history of angina and is experiencing symptoms similar to a heart
attack. What medication will likely be given to reduce the symptoms and treat this patient? -
Nitroglycerine
A trauma patient has a CT scan for their head and an augmented Chest, Abdomen, Pelvis.
Why is the head
done first? - Because a brain bleed or other pathologies can be identified prior to contrast
being introduced since the contrast appears white and similar to that of a fresh brain bleed;
the contrast study of the Chest, Abdomen, would leave contrast stuck in the Blood Brain
Barrier for up to 10 hours before it clears out
What is the letter I in the picture? - Common Bile Duct
Study the radiographic anatomy visualized in an ERCP exam -
What is the minimum number of people required for a log roll? - Five: one at the head of the
patient and two at each side
What is the Fowler's position? - Patient recumbent with head of the bed raised 40-60 degrees
What are the carpal bones in the proximal row in order from medial to lateral? - Pisiform,
Triquetrum, Lunate, Scaphoid
What does ASIS stand for? - Anterior superior iliac spine
What are two ways that mis-registration can occur in an Angiography case? - Voluntary and
involuntary motion
How is pixel shifting utilized in DSA exams? - If mis-registration occurs due to either
voluntary or involuntary motion, pixel shifting allows you to shift the mask image so that the
mask and injection images superimpose and subtract bone and soft tissue
What is the name of the method used to introduce a catheter and guide wire into a blood
vessel safely? - Seldinger Technique
In which directions do you insert an enema tip? - Anteriorly and superiorly
What are the two routine projections/views for mammography imaging? - MLO
(Mediolateral Oblique) & CC (Craniocaudal)
Which mammography view requires the pectoral muscle on the posterior edge of the breast,
retromammary tissue, and the nipple in profile? - Craniocaudal View
How do you know if a FB is in the esophagus and not the trachea? - If a foreign body is in the
trachea, the lung(s) will still have air in them on the expiration radiograph of the chest,
whereas a FB in the esophagus will have no effect on the lung size/markings
What does quantum mottle indicate? - An insufficient quantity of photons have stricken the
intensifying screen due to low mAs
What is normal blood pressure? - 110-120 mmHg systolic, 60-80 mmHg diastolic
If the SID is 40", the SOD is 38", and the OID is 2". What is the magnification factor? -
M=SID/SOD =40/38 =1.05
How does Automatic Gain Control change the exposure factors during a fluoroscopic exam?
- No effect; It is a function of the video camera control system that adjust the screen/camera
