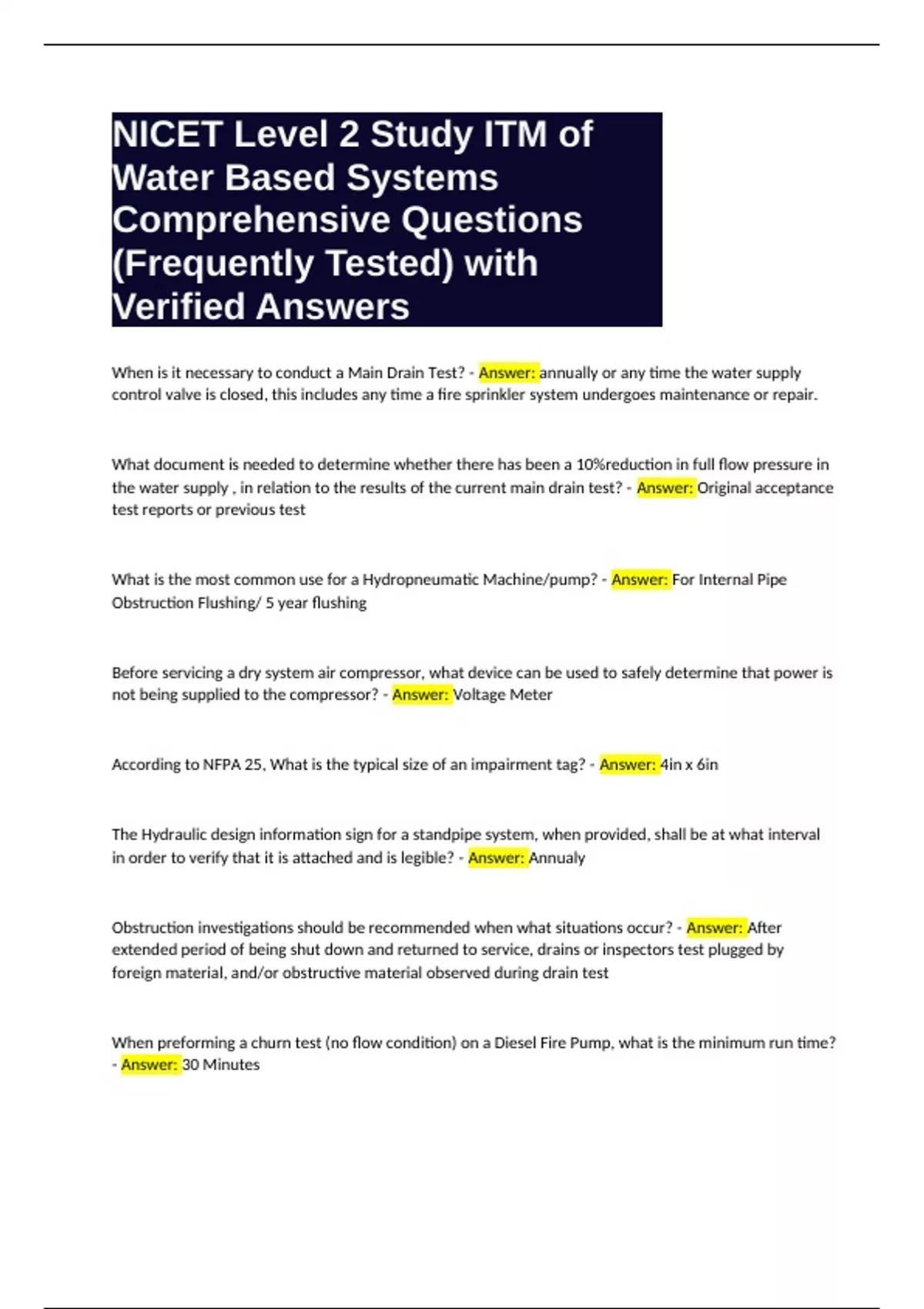

NICET Level 2 Study ITM of
Water Based Systems
Comprehensive Questions
(Frequently Tested) with
Verified Answers
When is it necessary to conduct a Main Drain Test? - Answer: annually or any time the water supply
control valve is closed, this includes any time a fire sprinkler system undergoes maintenance or repair.
What document is needed to determine whether there has been a 10%reduction in full flow pressure in
the water supply , in relation to the results of the current main drain test? - Answer: Original acceptance
test reports or previous test
What is the most common use for a Hydropneumatic Machine/pump? - Answer: For Internal Pipe
Obstruction Flushing/ 5 year flushing
Before servicing a dry system air compressor, what device can be used to safely determine that power is
not being supplied to the compressor? - Answer: Voltage Meter
According to NFPA 25, What is the typical size of an impairment tag? - Answer: 4in x 6in
The Hydraulic design information sign for a standpipe system, when provided, shall be at what interval
in order to verify that it is attached and is legible? - Answer: Annualy
Obstruction investigations should be recommended when what situations occur? - Answer: After
extended period of being shut down and returned to service, drains or inspectors test plugged by
foreign material, and/or obstructive material observed during drain test
When preforming a churn test (no flow condition) on a Diesel Fire Pump, what is the minimum run time?
- Answer: 30 Minutes
, How frequently shall a Vane Type water flow switch be tested? - Answer: Semi-Annually
To prevent jammin, what shall be done to post indicator and OS&Y Valves? - Answer: Backed 1/4 turn
from the fully open position
When Annually testing a fire hydrant, what is the minimum flow time according to NFPA 25? - Answer: 1
minute
Which agency should be contacted in order to determine whether a tamper/supervisory signal was
received during the semi-annual test of a wet system control valve? - Answer: Central Monitoring
Station
How often does the interior of a water storage tank, which was protected from corrosion, require
inspection? - Answer: 5 Years
What is the reason for opening Post Indicator Valves until tension is felt? - Answer: to determine that
the rod has not become detached from the valve
According to NFPA 25, when are dry valves allowed to be tripped with the control valve partially
opened? - Answer: In accordance with the code when Full Flow testing is not required
According to NFPA 25, to whom should records be made available upon request? - Answer: Authority
Having Jurisdiction (AHJ)
A pre-action deluge valve has an exterior reset. How often do this valve and its detection devices need
to be inspected? - Answer: Monthly
while preforming a full trip test on a dry system, an abnormally long water delivery time to the
inspectors test is recorded. The original system acceptance test report is reviewed. It is discovered that
there is more than a 50% increase in time from that of the original test. What actions should be taken? -
Answer: Recommend to the owner that an obstruction investigation and/or flushing of the system be
preformed in order to clear out any debris or other obstructions
