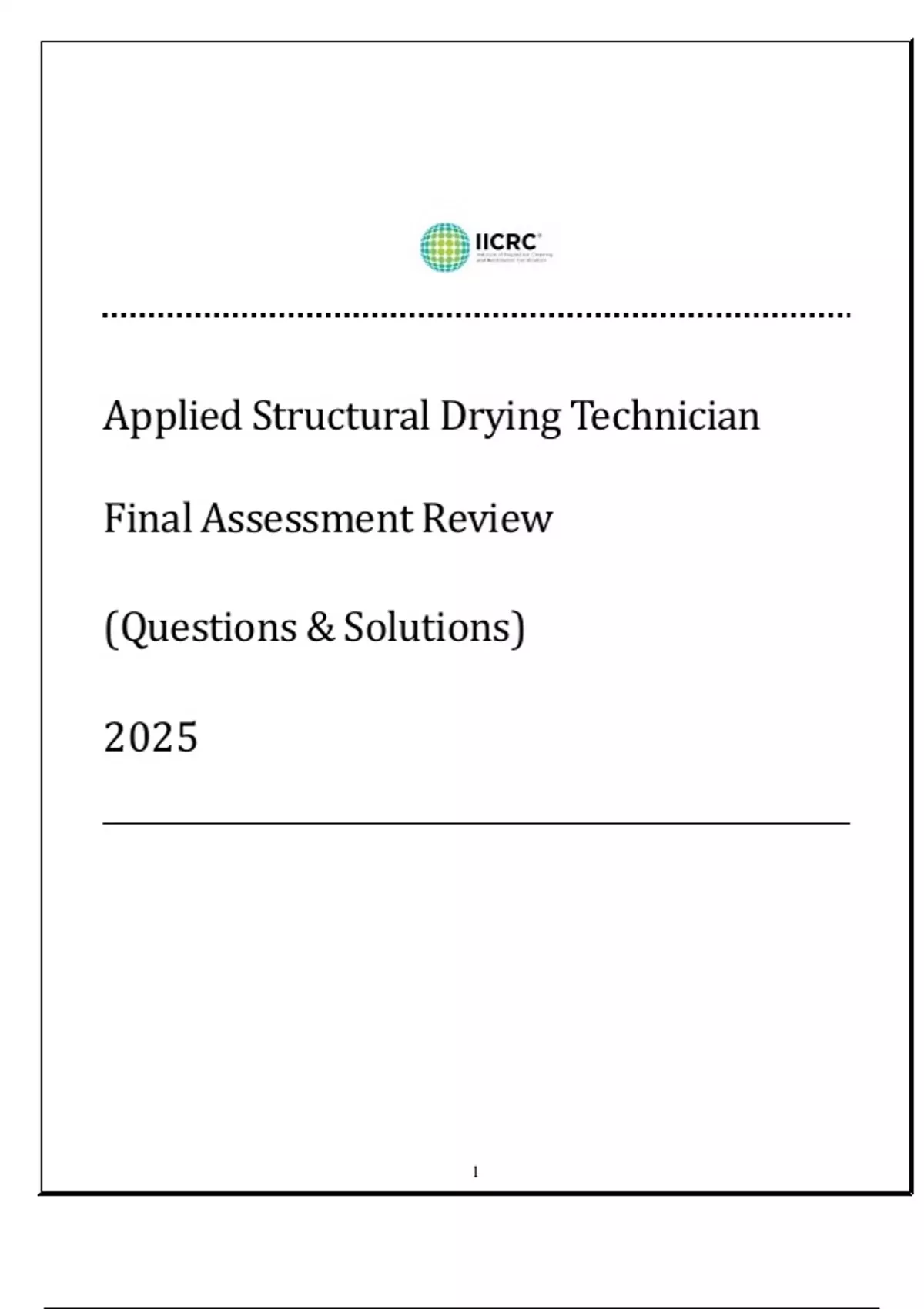

Applied Structural Drying Technician
Final Assessment Review
(Questions & Solutions)
2025
1
, 1. Drying Mechanism Fundamentals
Question:
Which phenomenon is the primary mechanism that drives the
removal of moisture from water-damaged materials in structural
drying?
- (a) Diffusion
- (b) Evaporation
- (c) Conduction
- (d) Radiation
Correct ANS: (b) Evaporation
Rationale:
Evaporation is the process of converting liquid water into vapor. In
water-damaged environments, evaporation is influenced by factors
such as temperature, air movement, and relative humidity, making it
the fundamental process exploited in drying.
---
2. Role of Air Movers
Question:
In a restorative drying environment, which function of air movers is
most critical to facilitate efficient drying?
- (a) Cooling down the area
- (b) Promoting evaporation by circulating air over wet surfaces
- (c) Reducing dust levels in the environment
- (d) Increasing ambient noise to disrupt condensation
Correct ANS: (b) Promoting evaporation by circulating air over wet
surfaces
Rationale:
Air movers create airflow that replaces moisture-laden air with drier
air, thereby accelerating evaporation from wet surfaces. This
2
,optimized circulation is key to an efficient drying process.
---
3. Equipment Selection – Dehumidifiers
Question:
Which type of dehumidifier is generally considered most effective in
water-damaged environments, particularly when air movement is
limited in confined areas?
- (a) Low Grain Refrigerant (LGR) dehumidifier
- (b) Desiccant dehumidifier
- (c) Conventional refrigerant dehumidifier
- (d) Passive dehumidifier
Correct ANS: (a) Low Grain Refrigerant (LGR) dehumidifier
Rationale:
LGR dehumidifiers effectively remove moisture even at lower
humidity levels, making them ideal for confined spaces where high
extraction capacity is needed. They help bring ambient relative
humidity down to optimal drying levels.
---
4. Moisture Mapping Techniques
Question:
Which tool is most appropriate for performing moisture mapping in a
structure undergoing restorative drying?
- (a) Digital hygrometer
- (b) Infrared thermal imaging camera
- (c) Laser distance meter
- (d) Moisture meter with penetrating probe
Correct ANS: (d) Moisture meter with penetrating probe
Rationale:
A moisture meter with a penetrating probe delivers direct readings
3
, from within materials. This tool is critical for accurately mapping
moisture distribution, guiding corrective drying strategies.
---
5. Psychrometric Analysis
Question:
Which component of the psychrometric chart is most directly altered
by deploying dehumidifiers in a drying environment?
- (a) Dry bulb temperature
- (b) Wet bulb temperature
- (c) Relative humidity
- (d) Dew point temperature
Correct ANS: (c) Relative humidity
Rationale:
Dehumidifiers remove water vapor, directly reducing the relative
humidity. Lower relative humidity increases the potential for
evaporative drying by enhancing the moisture gradient.
---
6. Drying Load Calculations
Question:
When calculating the drying load for a building, which factor is most
vital in determining the amount of water present?
- (a) Surface area
- (b) Water absorption coefficient of the material
- (c) Ambient room temperature
- (d) The type of air mover used
Correct ANS: (b) Water absorption coefficient of the material
Rationale:
Different materials absorb and retain water at different rates.
Knowing the water absorption coefficient is essential for accurately
4
