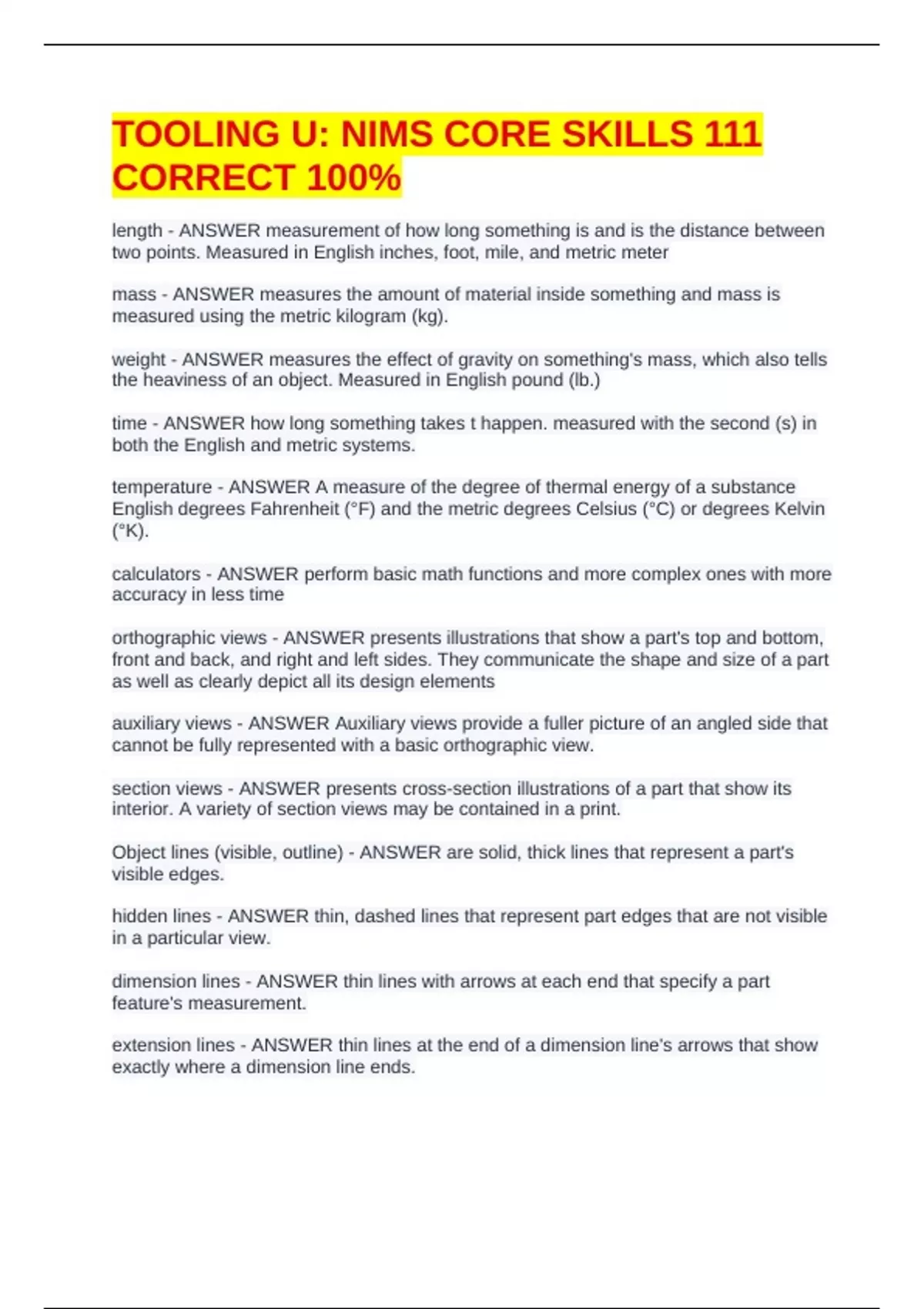

TOOLING U: NIMS CORE SKILLS 111
CORRECT 100%
length - ANSWER measurement of how long something is and is the distance between
two points. Measured in English inches, foot, mile, and metric meter
mass - ANSWER measures the amount of material inside something and mass is
measured using the metric kilogram (kg).
weight - ANSWER measures the effect of gravity on something's mass, which also tells
the heaviness of an object. Measured in English pound (lb.)
time - ANSWER how long something takes t happen. measured with the second (s) in
both the English and metric systems.
temperature - ANSWER A measure of the degree of thermal energy of a substance
English degrees Fahrenheit (°F) and the metric degrees Celsius (°C) or degrees Kelvin
(°K).
calculators - ANSWER perform basic math functions and more complex ones with more
accuracy in less time
orthographic views - ANSWER presents illustrations that show a part's top and bottom,
front and back, and right and left sides. They communicate the shape and size of a part
as well as clearly depict all its design elements
auxiliary views - ANSWER Auxiliary views provide a fuller picture of an angled side that
cannot be fully represented with a basic orthographic view.
section views - ANSWER presents cross-section illustrations of a part that show its
interior. A variety of section views may be contained in a print.
Object lines (visible, outline) - ANSWER are solid, thick lines that represent a part's
visible edges.
hidden lines - ANSWER thin, dashed lines that represent part edges that are not visible
in a particular view.
dimension lines - ANSWER thin lines with arrows at each end that specify a part
feature's measurement.
extension lines - ANSWER thin lines at the end of a dimension line's arrows that show
exactly where a dimension line ends.
