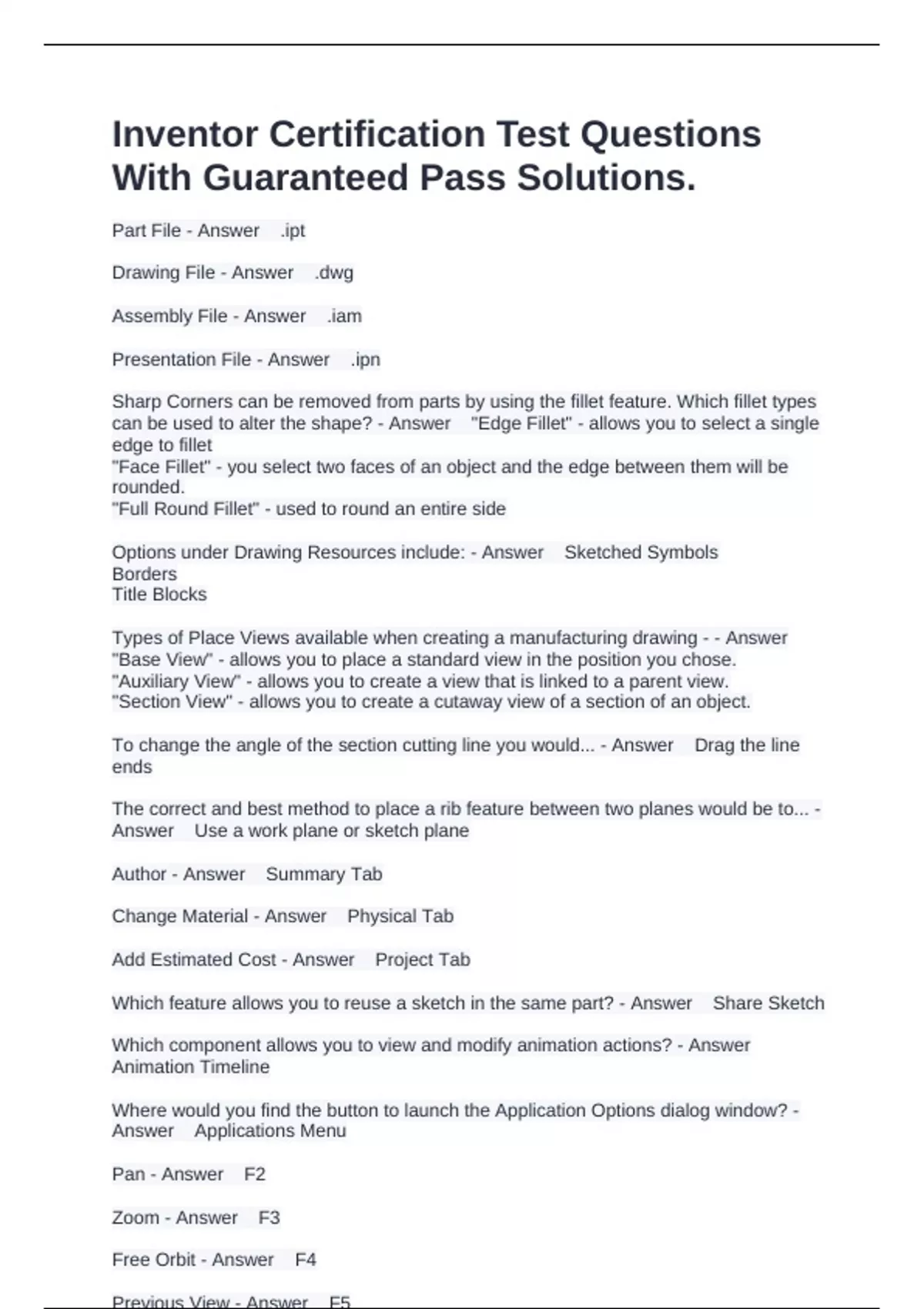

Inventor Certification Test Questions
With Guaranteed Pass Solutions.
Part File - Answer .ipt
Drawing File - Answer .dwg
Assembly File - Answer .iam
Presentation File - Answer .ipn
Sharp Corners can be removed from parts by using the fillet feature. Which fillet types
can be used to alter the shape? - Answer "Edge Fillet" - allows you to select a single
edge to fillet
"Face Fillet" - you select two faces of an object and the edge between them will be
rounded.
"Full Round Fillet" - used to round an entire side
Options under Drawing Resources include: - Answer Sketched Symbols
Borders
Title Blocks
Types of Place Views available when creating a manufacturing drawing - - Answer
"Base View" - allows you to place a standard view in the position you chose.
"Auxiliary View" - allows you to create a view that is linked to a parent view.
"Section View" - allows you to create a cutaway view of a section of an object.
To change the angle of the section cutting line you would... - Answer Drag the line
ends
The correct and best method to place a rib feature between two planes would be to... -
Answer Use a work plane or sketch plane
Author - Answer Summary Tab
Change Material - Answer Physical Tab
Add Estimated Cost - Answer Project Tab
Which feature allows you to reuse a sketch in the same part? - Answer Share Sketch
Which component allows you to view and modify animation actions? - Answer
Animation Timeline
Where would you find the button to launch the Application Options dialog window? -
Answer Applications Menu
Pan - Answer F2
Zoom - Answer F3
Free Orbit - Answer F4
, Which command would you use to project the sketch 360 degrees? - Answer Revolve
Where can a part's Plane, Axis, and Center Point be found and selected? - Answer
The Origin Folder
Which command requires a sketch for the profile and a second sketch for the path? -
Answer Sweep
For a 2D sketch to be manipulated in 3D, it is necessary that the sketch profile is... -
Answer Closed
To create a template file, you must... - Answer Save in the Templates folder
Valid placement options allowed when creating a Hole feature: - Answer From Sketch
Concentric
On Point
A child view inherits the default style from the... - Answer Parent View
Valid dimensioning commands include: - Answer Baseline
Ordinate
Chain
Which command would be the best choice for creating a cabinet drawer handle? -
Answer Loft
3 methods of applying a chamfer using the chamfer dialog window include: - Answer
Two Distances
Distance and Angle
Distance
3 Angle constraint types include: - Answer Directed Angle
Explicit Reference Angle
Undirected Angle
Fillet - Answer Places an arc of a specified radius at a corner of intersection of two
lines
Line - Answer Creates lines and arcs
Three Point Arc - Answer Creates an arc using three points for the start, end, and
radius
Two Point Rectangle - Answer Creates a rectangle using two points for the diagonal
corners
General Properties - Answer Physical Tab
Part Number - Answer Status Tab
Save Preview Picture - Answer Save Tab
Where in the browser is the shared sketch moved to? - Answer Above the original
feature
