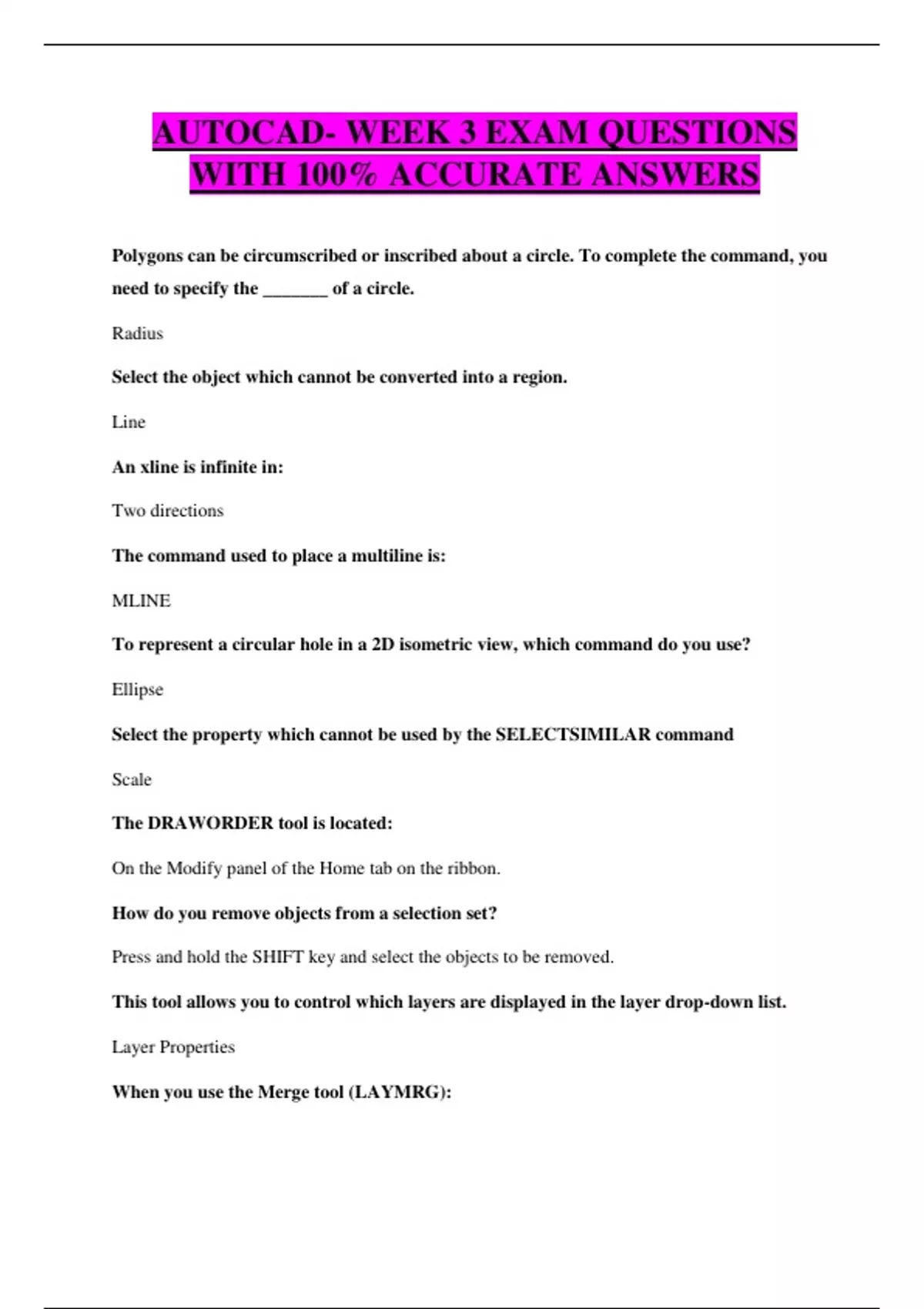

AUTOCAD- WEEK 3 EXAM QUESTIONS
WITH 100% ACCURATE ANSWERS
Polygons can be circumscribed or inscribed about a circle. To complete the command, you
need to specify the _______ of a circle.
Radius
Select the object which cannot be converted into a region.
Line
An xline is infinite in:
Two directions
The command used to place a multiline is:
MLINE
To represent a circular hole in a 2D isometric view, which command do you use?
Ellipse
Select the property which cannot be used by the SELECTSIMILAR command
Scale
The DRAWORDER tool is located:
On the Modify panel of the Home tab on the ribbon.
How do you remove objects from a selection set?
Press and hold the SHIFT key and select the objects to be removed.
This tool allows you to control which layers are displayed in the layer drop-down list.
Layer Properties
When you use the Merge tool (LAYMRG):
, You can transfer the objects on one or more layers into the target layer.
To move several objects, you enter MOVE and select a line, a circle, an arc, and a text
object, in that order. At the next "Select objects" prompt, you enter U. What does this do?
It removes the text from the selection set.
An xref layer property override occurs:
When you change a layer property for an xref in the host drawing.
When placing a sketch on a construction plane, which plane is used?
The XY plane.
You can move the origin of the UCS using grips
True
Select the method which will align the UCS with the WCS:
UCS, World
By default, the UCS and the WCS are:
Aligned
What does the Layer option of the Offset command control
Controls the layer where the offset object is placed
After you select the vertex of a six-sided polygon, what multi-grip options are available?
Select all that apply.
Stretch, Add Vertex, Remove Vertex
To create a corner between two perpendicular lines:
Select the Fillet command, select one line, press and hold the SHIFT key, and select the second
line.
The Page Setup Manager allows you to set all of the following EXCEPT:
WITH 100% ACCURATE ANSWERS
Polygons can be circumscribed or inscribed about a circle. To complete the command, you
need to specify the _______ of a circle.
Radius
Select the object which cannot be converted into a region.
Line
An xline is infinite in:
Two directions
The command used to place a multiline is:
MLINE
To represent a circular hole in a 2D isometric view, which command do you use?
Ellipse
Select the property which cannot be used by the SELECTSIMILAR command
Scale
The DRAWORDER tool is located:
On the Modify panel of the Home tab on the ribbon.
How do you remove objects from a selection set?
Press and hold the SHIFT key and select the objects to be removed.
This tool allows you to control which layers are displayed in the layer drop-down list.
Layer Properties
When you use the Merge tool (LAYMRG):
, You can transfer the objects on one or more layers into the target layer.
To move several objects, you enter MOVE and select a line, a circle, an arc, and a text
object, in that order. At the next "Select objects" prompt, you enter U. What does this do?
It removes the text from the selection set.
An xref layer property override occurs:
When you change a layer property for an xref in the host drawing.
When placing a sketch on a construction plane, which plane is used?
The XY plane.
You can move the origin of the UCS using grips
True
Select the method which will align the UCS with the WCS:
UCS, World
By default, the UCS and the WCS are:
Aligned
What does the Layer option of the Offset command control
Controls the layer where the offset object is placed
After you select the vertex of a six-sided polygon, what multi-grip options are available?
Select all that apply.
Stretch, Add Vertex, Remove Vertex
To create a corner between two perpendicular lines:
Select the Fillet command, select one line, press and hold the SHIFT key, and select the second
line.
The Page Setup Manager allows you to set all of the following EXCEPT:
