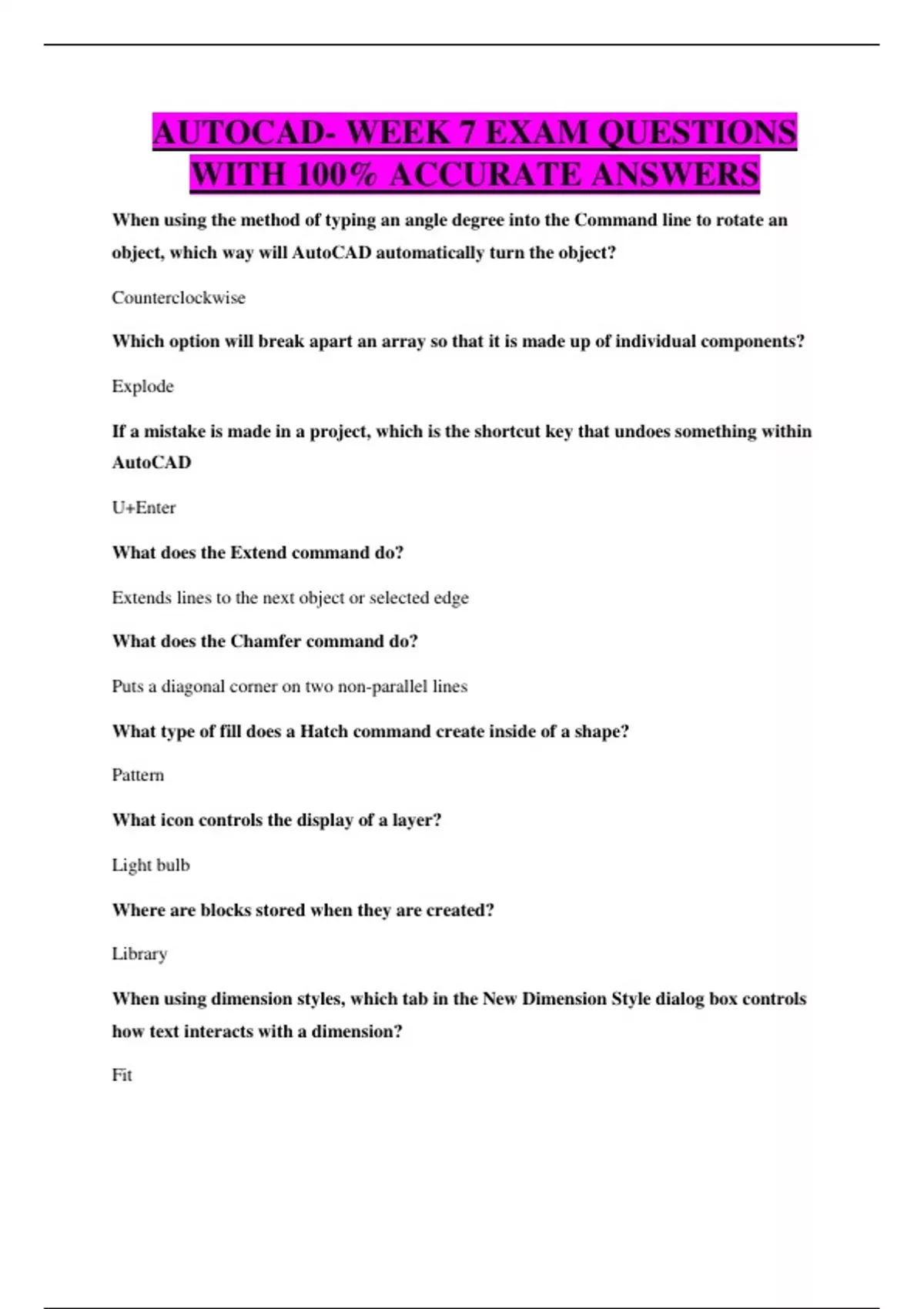

AUTOCAD- WEEK 7 EXAM QUESTIONS
WITH 100% ACCURATE ANSWERS
When using the method of typing an angle degree into the Command line to rotate an
object, which way will AutoCAD automatically turn the object?
Counterclockwise
Which option will break apart an array so that it is made up of individual components?
Explode
If a mistake is made in a project, which is the shortcut key that undoes something within
AutoCAD
U+Enter
What does the Extend command do?
Extends lines to the next object or selected edge
What does the Chamfer command do?
Puts a diagonal corner on two non-parallel lines
What type of fill does a Hatch command create inside of a shape?
Pattern
What icon controls the display of a layer?
Light bulb
Where are blocks stored when they are created?
Library
When using dimension styles, which tab in the New Dimension Style dialog box controls
how text interacts with a dimension?
Fit
, When printing a drawing in all black, which option should be used?
Monochrome
On which panel is the multiline text option?
Annotation
Which action places a single line text box on the screen?
Clicking to establish a starting point
Which types of dimensions are used for horizontal dimensions?
Linear
Once dimension styles are established, how can individual dimensions be manipulated?
Through the Properties box
The properties for two rectangular polylines are given below. With Polyline 1 selected, the
Match Properties (MATCHPROP) command is used, then Polyline 2 is selected. Which of
the following statements below is now true as a result? Select Yes if the statement is true.
Otherwise, select No.
The Color of Polyline 2 is Blue (Yes).
The Layer of Polyline 2 is Layer 2 (No).
The Elevation of Polyline 2 is 100.0000 (No).
The Lineweight of Polyline 2 is 0.30mm (Yes).
The Hyperlink for Polyline 2 is http://www.autodesk.com (No).
The Thickness for Polyline 2 is 25.0000 (Yes).
Which process can be used to convert a spline into a polyline?
Select the spline, then right click and choose Spline > Convert to Polyline
To move all selected object to the same layer without removing layers use the....
To combine multiple layers into a single layer use...
WITH 100% ACCURATE ANSWERS
When using the method of typing an angle degree into the Command line to rotate an
object, which way will AutoCAD automatically turn the object?
Counterclockwise
Which option will break apart an array so that it is made up of individual components?
Explode
If a mistake is made in a project, which is the shortcut key that undoes something within
AutoCAD
U+Enter
What does the Extend command do?
Extends lines to the next object or selected edge
What does the Chamfer command do?
Puts a diagonal corner on two non-parallel lines
What type of fill does a Hatch command create inside of a shape?
Pattern
What icon controls the display of a layer?
Light bulb
Where are blocks stored when they are created?
Library
When using dimension styles, which tab in the New Dimension Style dialog box controls
how text interacts with a dimension?
Fit
, When printing a drawing in all black, which option should be used?
Monochrome
On which panel is the multiline text option?
Annotation
Which action places a single line text box on the screen?
Clicking to establish a starting point
Which types of dimensions are used for horizontal dimensions?
Linear
Once dimension styles are established, how can individual dimensions be manipulated?
Through the Properties box
The properties for two rectangular polylines are given below. With Polyline 1 selected, the
Match Properties (MATCHPROP) command is used, then Polyline 2 is selected. Which of
the following statements below is now true as a result? Select Yes if the statement is true.
Otherwise, select No.
The Color of Polyline 2 is Blue (Yes).
The Layer of Polyline 2 is Layer 2 (No).
The Elevation of Polyline 2 is 100.0000 (No).
The Lineweight of Polyline 2 is 0.30mm (Yes).
The Hyperlink for Polyline 2 is http://www.autodesk.com (No).
The Thickness for Polyline 2 is 25.0000 (Yes).
Which process can be used to convert a spline into a polyline?
Select the spline, then right click and choose Spline > Convert to Polyline
To move all selected object to the same layer without removing layers use the....
To combine multiple layers into a single layer use...
