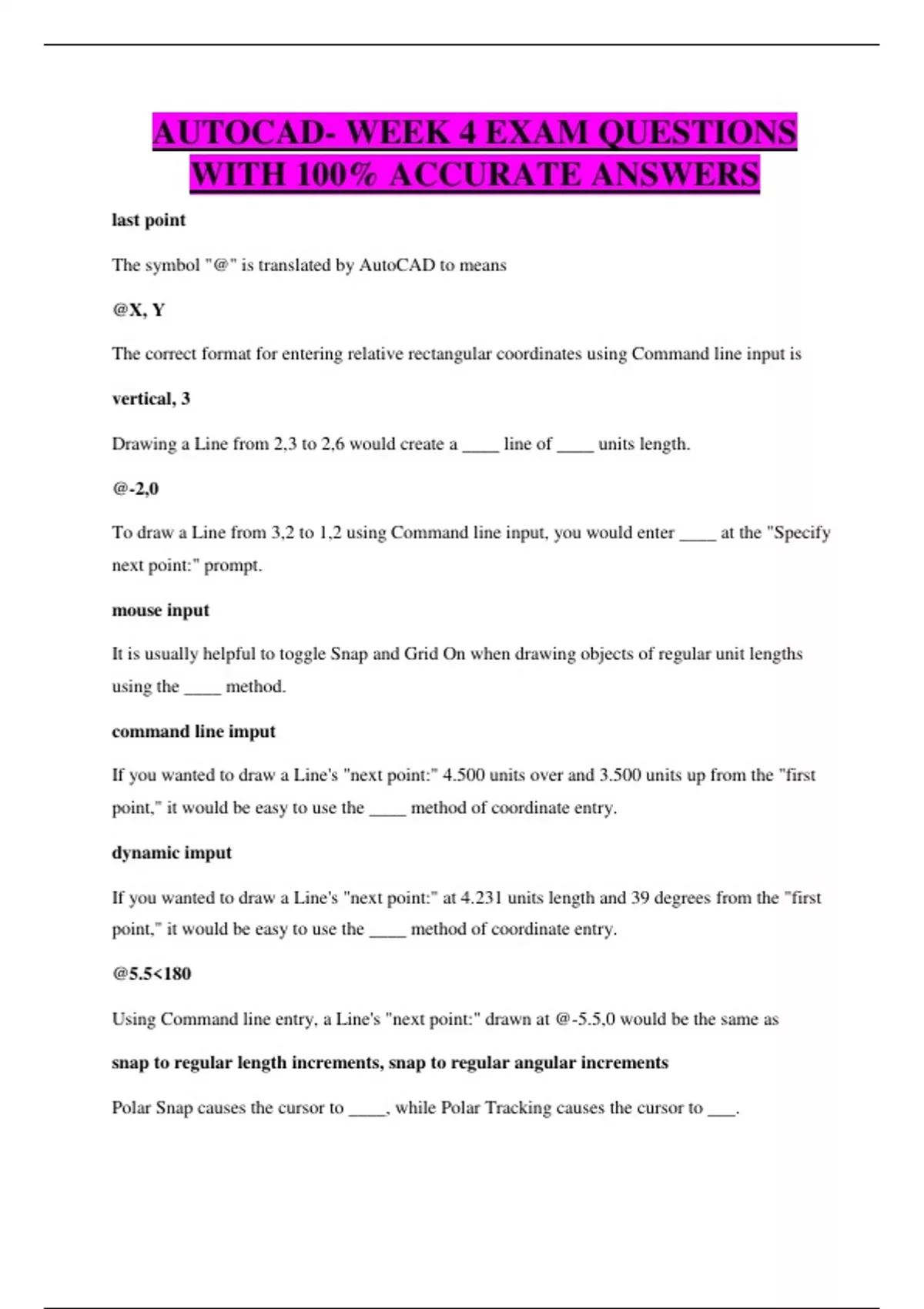

AUTOCAD- WEEK 4 EXAM QUESTIONS
WITH 100% ACCURATE ANSWERS
last point
The symbol "@" is translated by AutoCAD to means
@X, Y
The correct format for entering relative rectangular coordinates using Command line input is
vertical, 3
Drawing a Line from 2,3 to 2,6 would create a ____ line of ____ units length.
@-2,0
To draw a Line from 3,2 to 1,2 using Command line input, you would enter ____ at the "Specify
next point:" prompt.
mouse input
It is usually helpful to toggle Snap and Grid On when drawing objects of regular unit lengths
using the ____ method.
command line imput
If you wanted to draw a Line's "next point:" 4.500 units over and 3.500 units up from the "first
point," it would be easy to use the ____ method of coordinate entry.
dynamic imput
If you wanted to draw a Line's "next point:" at 4.231 units length and 39 degrees from the "first
point," it would be easy to use the ____ method of coordinate entry.
@5.5<180
Using Command line entry, a Line's "next point:" drawn at @-5.5,0 would be the same as
snap to regular length increments, snap to regular angular increments
Polar Snap causes the cursor to ____, while Polar Tracking causes the cursor to ___.
, enter the length value, press Tab, and enter the angle value, then press Enter
Using Dynamic Input (with the default settings) to specify the "next point," ____.
fourteen places of accuracy
AutoCAD stores the drawing database as digital information with
a Snap "marker" appears at the object's Object Snap point when the cursor is near
When you invoke an Object Snap mode,
the selected option operates for only one PICK
Single Point Object Snap mode means
you can PICK near the center of the circle,
a circle marker must appear at the Circle's center before you PICK,
you can PICK anywhere on the Circle object
To use the Center Object Snap option effectively,
Appint (Apparent Intersection)
The ____ Object Snap mode is intended for use with 3D objects.
both Object Snap and Object Snap Tracking on
To use Object Snap Tracking, toggle ____ at the Status bar.
produce the Object Snap tab of the Drafting Settings dialog box
Type the command Osnap or command alias OS to ____.
Node
To snap to a Point object, use the ____ Object Snap option.
the selected modes are active whenever AutoCAD prompts you to select a point (location)
If you turn on Running Object Snaps, ____.
WITH 100% ACCURATE ANSWERS
last point
The symbol "@" is translated by AutoCAD to means
@X, Y
The correct format for entering relative rectangular coordinates using Command line input is
vertical, 3
Drawing a Line from 2,3 to 2,6 would create a ____ line of ____ units length.
@-2,0
To draw a Line from 3,2 to 1,2 using Command line input, you would enter ____ at the "Specify
next point:" prompt.
mouse input
It is usually helpful to toggle Snap and Grid On when drawing objects of regular unit lengths
using the ____ method.
command line imput
If you wanted to draw a Line's "next point:" 4.500 units over and 3.500 units up from the "first
point," it would be easy to use the ____ method of coordinate entry.
dynamic imput
If you wanted to draw a Line's "next point:" at 4.231 units length and 39 degrees from the "first
point," it would be easy to use the ____ method of coordinate entry.
@5.5<180
Using Command line entry, a Line's "next point:" drawn at @-5.5,0 would be the same as
snap to regular length increments, snap to regular angular increments
Polar Snap causes the cursor to ____, while Polar Tracking causes the cursor to ___.
, enter the length value, press Tab, and enter the angle value, then press Enter
Using Dynamic Input (with the default settings) to specify the "next point," ____.
fourteen places of accuracy
AutoCAD stores the drawing database as digital information with
a Snap "marker" appears at the object's Object Snap point when the cursor is near
When you invoke an Object Snap mode,
the selected option operates for only one PICK
Single Point Object Snap mode means
you can PICK near the center of the circle,
a circle marker must appear at the Circle's center before you PICK,
you can PICK anywhere on the Circle object
To use the Center Object Snap option effectively,
Appint (Apparent Intersection)
The ____ Object Snap mode is intended for use with 3D objects.
both Object Snap and Object Snap Tracking on
To use Object Snap Tracking, toggle ____ at the Status bar.
produce the Object Snap tab of the Drafting Settings dialog box
Type the command Osnap or command alias OS to ____.
Node
To snap to a Point object, use the ____ Object Snap option.
the selected modes are active whenever AutoCAD prompts you to select a point (location)
If you turn on Running Object Snaps, ____.
