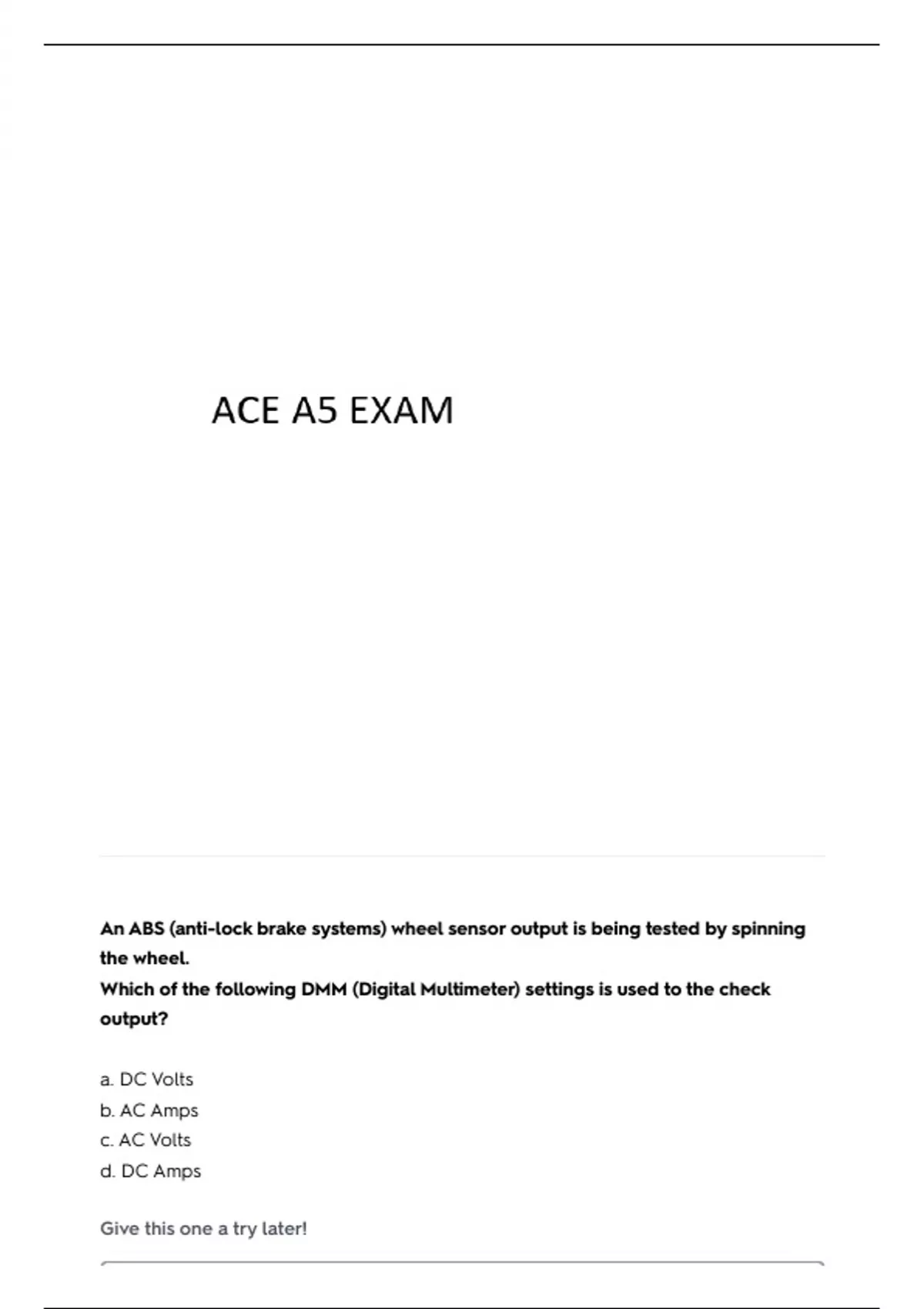

An ABS (anti-lock brake systems) wheel sensor output is being tested by spinning
the wheel.
Which of the following DMM (Digital Multimeter) settings is used to the check
output?
a. DC Volts
b. AC Amps
c. AC Volts
d. DC Amps
Give this one a try later!
, AC Volts
Which of the following tools is used to measure the gap between the toothed ring
and the ABS (antilock brake system) wheel speed sensor?
a. Paper gasket
b. Brass or plastic feeler gauge
c. Standard steel feeler gauge
d. Either A or B
Give this one a try later!
Either A or B
A technician is going to refinish a brake rotor on the vehicle. Which of the following is
the LEAST likely part of this process?
a. Measure the rotor thickness
b. Choose the proper adapter
c. Lathe head clears the wheel well opening
d. Sand rotor with 80-grit sand paper
Give this one a try later!
Sand rotor with 80-grit sand paper
Which of the following is the MOST likely cause of a pulsating brake pedal?
a. Leaking brake fluid at the front calipers
, b. Excessive rotor thickness variation
c. Blocked bypass port in master cylinder
d. Glazed linings and brake rotors
Give this one a try later!
Excessive rotor thickness variation
Flexible brake hose should be inspected for all of the following, EXCEPT:
a. Cracks
b. Leakage
c. Twisted
d. Worn outer ribs
Give this one a try later!
Worn outer ribs
On an integral ABS (anti-lock brake system) using an accumulator, which of the
following is a critical safety concern when servicing the system?
a. Release vacuum pressure at the master cylinder
b. Pump brake pedal with key off to release pressure
c. Pump brake pedal with the engine idling to release pressure
d. Drain the fluid before servicing the master cylinder
Give this one a try later!
Pump brake pedal with key off to release pressure
the wheel.
Which of the following DMM (Digital Multimeter) settings is used to the check
output?
a. DC Volts
b. AC Amps
c. AC Volts
d. DC Amps
Give this one a try later!
, AC Volts
Which of the following tools is used to measure the gap between the toothed ring
and the ABS (antilock brake system) wheel speed sensor?
a. Paper gasket
b. Brass or plastic feeler gauge
c. Standard steel feeler gauge
d. Either A or B
Give this one a try later!
Either A or B
A technician is going to refinish a brake rotor on the vehicle. Which of the following is
the LEAST likely part of this process?
a. Measure the rotor thickness
b. Choose the proper adapter
c. Lathe head clears the wheel well opening
d. Sand rotor with 80-grit sand paper
Give this one a try later!
Sand rotor with 80-grit sand paper
Which of the following is the MOST likely cause of a pulsating brake pedal?
a. Leaking brake fluid at the front calipers
, b. Excessive rotor thickness variation
c. Blocked bypass port in master cylinder
d. Glazed linings and brake rotors
Give this one a try later!
Excessive rotor thickness variation
Flexible brake hose should be inspected for all of the following, EXCEPT:
a. Cracks
b. Leakage
c. Twisted
d. Worn outer ribs
Give this one a try later!
Worn outer ribs
On an integral ABS (anti-lock brake system) using an accumulator, which of the
following is a critical safety concern when servicing the system?
a. Release vacuum pressure at the master cylinder
b. Pump brake pedal with key off to release pressure
c. Pump brake pedal with the engine idling to release pressure
d. Drain the fluid before servicing the master cylinder
Give this one a try later!
Pump brake pedal with key off to release pressure
