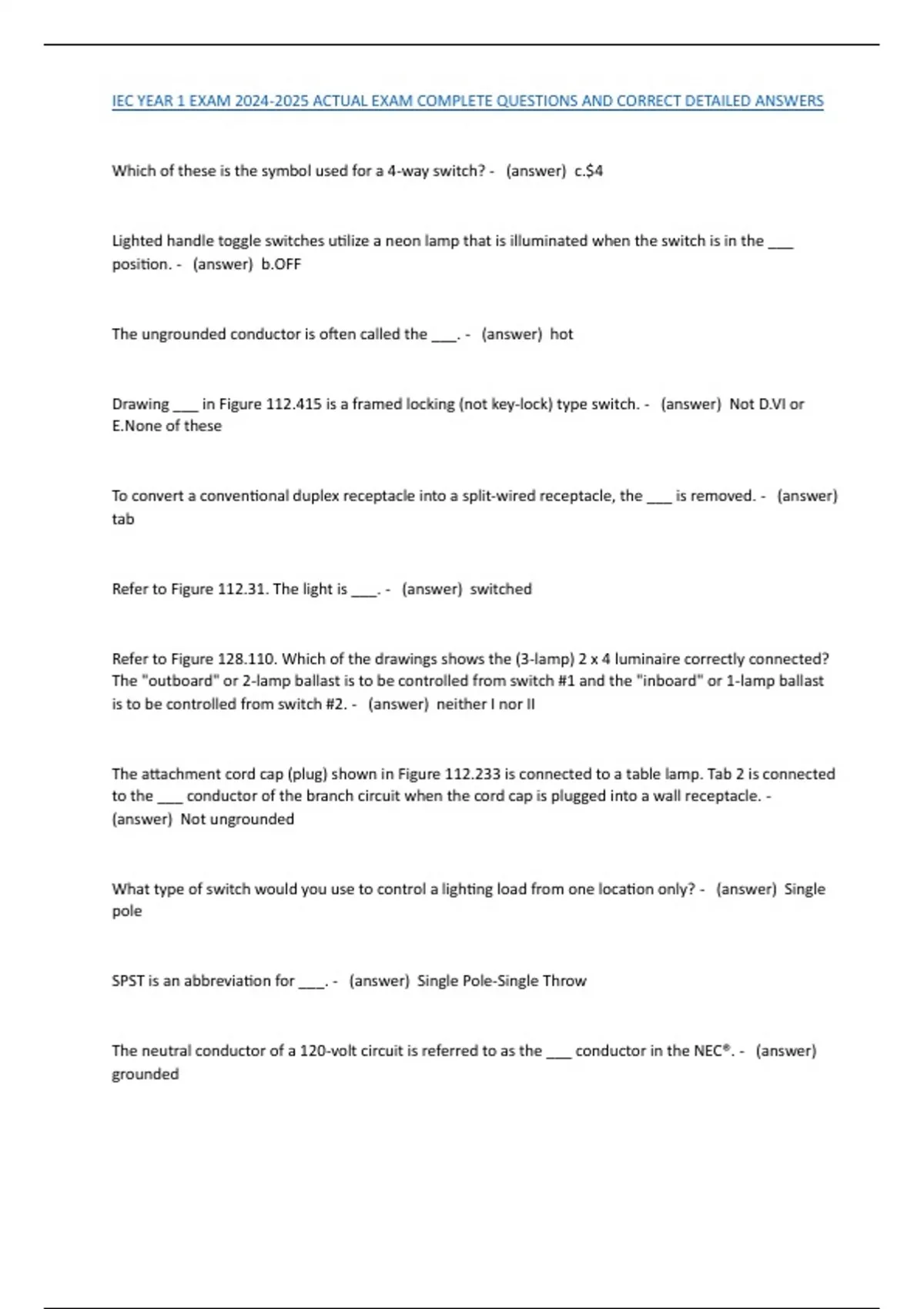

IEC YEAR 1 EXAM 2024-2025 ACTUAL EXAM COMPLETE QUESTIONS AND CORRECT DETAILED ANSWERS
Which of these is the symbol used for a 4-way switch? - (answer) c.$4
Lighted handle toggle switches utilize a neon lamp that is illuminated when the switch is in the ___
position. - (answer) b.OFF
The ungrounded conductor is often called the ___. - (answer) hot
Drawing ___ in Figure 112.415 is a framed locking (not key-lock) type switch. - (answer) Not D.VI or
E.None of these
To convert a conventional duplex receptacle into a split-wired receptacle, the ___ is removed. - (answer)
tab
Refer to Figure 112.31. The light is ___. - (answer) switched
Refer to Figure 128.110. Which of the drawings shows the (3-lamp) 2 x 4 luminaire correctly connected?
The "outboard" or 2-lamp ballast is to be controlled from switch #1 and the "inboard" or 1-lamp ballast
is to be controlled from switch #2. - (answer) neither I nor II
The attachment cord cap (plug) shown in Figure 112.233 is connected to a table lamp. Tab 2 is connected
to the ___ conductor of the branch circuit when the cord cap is plugged into a wall receptacle. -
(answer) Not ungrounded
What type of switch would you use to control a lighting load from one location only? - (answer) Single
pole
SPST is an abbreviation for ___. - (answer) Single Pole-Single Throw
The neutral conductor of a 120-volt circuit is referred to as the ___ conductor in the NEC®. - (answer)
grounded
