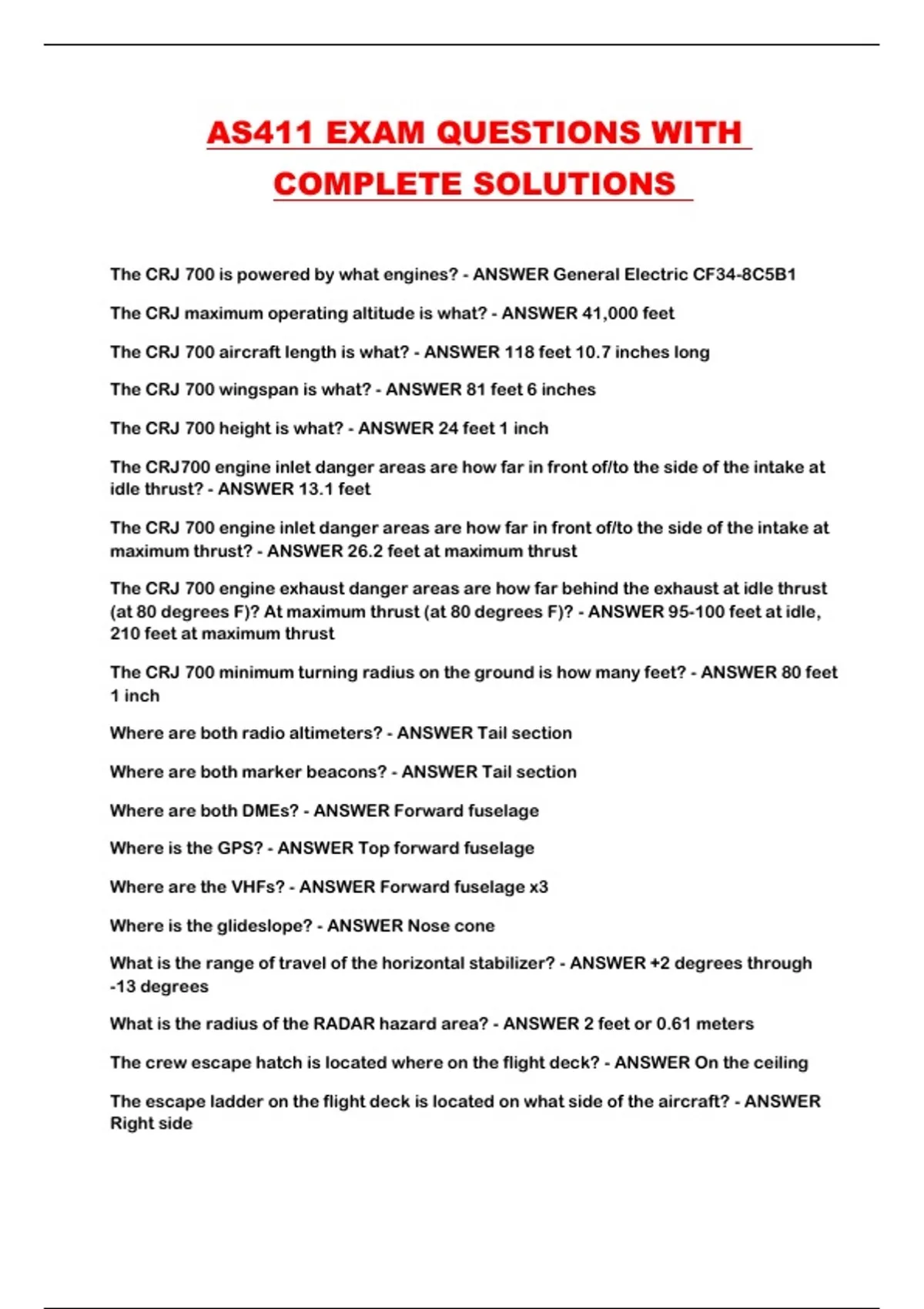

AS411 EXAM QUESTIONS WITH
COMPLETE SOLUTIONS
The CRJ 700 is powered by what engines? - ANSWER General Electric CF34-8C5B1
The CRJ maximum operating altitude is what? - ANSWER 41,000 feet
The CRJ 700 aircraft length is what? - ANSWER 118 feet 10.7 inches long
The CRJ 700 wingspan is what? - ANSWER 81 feet 6 inches
The CRJ 700 height is what? - ANSWER 24 feet 1 inch
The CRJ700 engine inlet danger areas are how far in front of/to the side of the intake at
idle thrust? - ANSWER 13.1 feet
The CRJ 700 engine inlet danger areas are how far in front of/to the side of the intake at
maximum thrust? - ANSWER 26.2 feet at maximum thrust
The CRJ 700 engine exhaust danger areas are how far behind the exhaust at idle thrust
(at 80 degrees F)? At maximum thrust (at 80 degrees F)? - ANSWER 95-100 feet at idle,
210 feet at maximum thrust
The CRJ 700 minimum turning radius on the ground is how many feet? - ANSWER 80 feet
1 inch
Where are both radio altimeters? - ANSWER Tail section
Where are both marker beacons? - ANSWER Tail section
Where are both DMEs? - ANSWER Forward fuselage
Where is the GPS? - ANSWER Top forward fuselage
Where are the VHFs? - ANSWER Forward fuselage x3
Where is the glideslope? - ANSWER Nose cone
What is the range of travel of the horizontal stabilizer? - ANSWER +2 degrees through
-13 degrees
What is the radius of the RADAR hazard area? - ANSWER 2 feet or 0.61 meters
The crew escape hatch is located where on the flight deck? - ANSWER On the ceiling
The escape ladder on the flight deck is located on what side of the aircraft? - ANSWER
Right side
, Circuit Breaker Panel 1 (CBP 1) is located behind which seat? - ANSWER Left seat
Circuit Breaker Panel 2 (CBP 2) is located behind which seat? - ANSWER Right Seat
All the flight deck emergency equipment is located where? - ANSWER Behind the seats,
life vests under the seats
How many flashlights are located on the flight deck? - ANSWER 2
The Halon 211 fire extinguisher is located behind which seat? - ANSWER Right/FO seat
How many people can sit in the cabin just outside the flight deck (not passenger seats)?
- ANSWER 2
In addition to the flight deck, emergency lights can be controlled from what other
location? - ANSWER Forward flight attendant's panel
What displays messages showing the status of emergency lights and passenger signs? -
ANSWER EICAS
What are the four external lights on the CRJ? - ANSWER Navigation, anti-collision strobe
lights, optional rotating beacons, logo lights
The switches that control external lights are located where? - ANSWER Overhead panel
What happens when a primary nav light bulb fails? - ANSWER Smaller secondary light
takes over
What are the locations of the three anti-collision strobe lights? - ANSWER Both wingtips
and tail
What two ways will make the flight data recorder (FDR) operate? - ANSWER Turning
either the strobe or beacon switch on
What are the four lights used to illuminate the outside? - ANSWER Taxi-recognition
lights, nose landing lights, wing landing lights, wing inspection lights
What are the wing inspection lights used for? - ANSWER To check the wing leading
edges for ice buildup
What are the name of the four panels that control flight deck lighting? - ANSWER
Miscellaneous lights panel, center pedestal, pilot, and copilot lighting panels
What switch controls the PFD and MFD light intensity? - ANSWER DSPL switch
What panel has controls for the cabin ceiling, sidewall, and entrance lights? - ANSWER
Forward attendant's panel
The passenger service units (PSU) all have what two light symbols? - ANSWER No
smoking and fasten seat belt symbols
