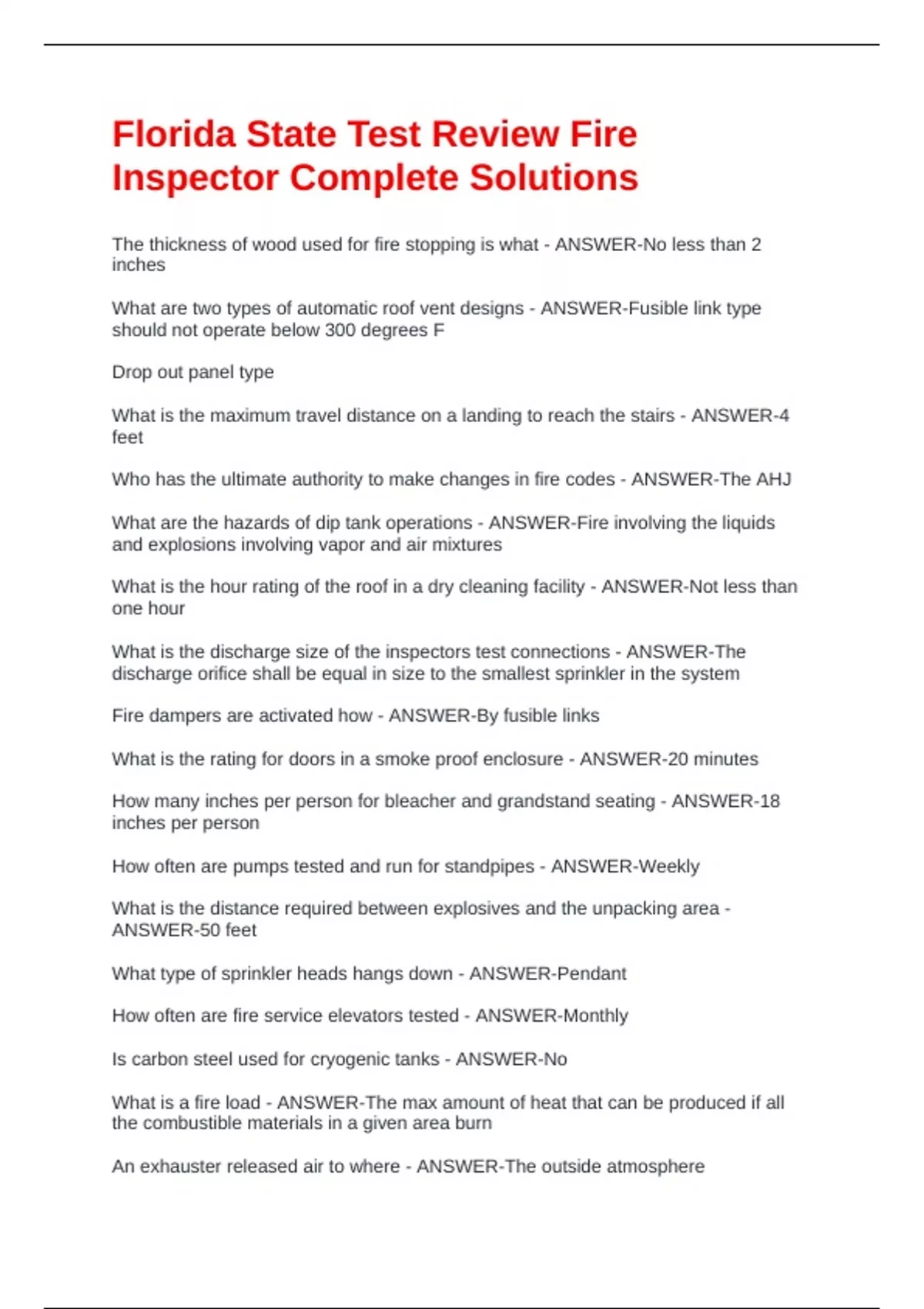

Florida State Test Review Fire
Inspector Complete Solutions
The thickness of wood used for fire stopping is what - ANSWER-No less than 2
inches
What are two types of automatic roof vent designs - ANSWER-Fusible link type
should not operate below 300 degrees F
Drop out panel type
What is the maximum travel distance on a landing to reach the stairs - ANSWER-4
feet
Who has the ultimate authority to make changes in fire codes - ANSWER-The AHJ
What are the hazards of dip tank operations - ANSWER-Fire involving the liquids
and explosions involving vapor and air mixtures
What is the hour rating of the roof in a dry cleaning facility - ANSWER-Not less than
one hour
What is the discharge size of the inspectors test connections - ANSWER-The
discharge orifice shall be equal in size to the smallest sprinkler in the system
Fire dampers are activated how - ANSWER-By fusible links
What is the rating for doors in a smoke proof enclosure - ANSWER-20 minutes
How many inches per person for bleacher and grandstand seating - ANSWER-18
inches per person
How often are pumps tested and run for standpipes - ANSWER-Weekly
What is the distance required between explosives and the unpacking area -
ANSWER-50 feet
What type of sprinkler heads hangs down - ANSWER-Pendant
How often are fire service elevators tested - ANSWER-Monthly
Is carbon steel used for cryogenic tanks - ANSWER-No
What is a fire load - ANSWER-The max amount of heat that can be produced if all
the combustible materials in a given area burn
An exhauster released air to where - ANSWER-The outside atmosphere
, The accelerator unbalances the air pressure within the system
Rate of rise detector depends on what - ANSWER-Expansion characteristic of heat.
Temperature rises at a rate exceeding a fixed amount. Will activate if temperature
rises 12 to 15 degrees per minute
Type of door required for flammable storage room - ANSWER-Self closing
What is a birds mouth cut - ANSWER-A cut in a rafter to make it fit flush on the top
plate
Consist of the plumb cut and the seat cut
How many times stronger is steel than concrete - ANSWER-15 times stronger
Disadvantages of steel - ANSWER-Begins to rust when expose to air and moisture
Will weaken and elongate when expose to heat from fire
What is a border line - ANSWER-Are located near the edge of the sheet of drawing
paper
Used to separate various portions of the drawing
What is a floor plan - ANSWER-It is a sectional view taken on a horizontal plane 42
to 48 inches above the floor
What is an exploded pictorial drawing - ANSWER-Used to show the relative position
of parts or construction details
Used to clarify assembly
What type of material is Halon ineffective on - ANSWER-Self oxidizing
What is the maximum travel distance for a class d extinguisher - ANSWER-Not
exceeding 75 feet same distance for a class a
Which drawing is the most realistic view - ANSWER-The pictorial drawing
Which landings have standpipe connections in scissor stairs - ANSWER-Alternating
floors
If a straight line is not running horizontal or vertical which way is it running -
ANSWER-Incline
Where are noted places for a welding symbol - ANSWER-Notes are placed within
the tail
What is the minimum clearance for combustible materials for cooking equipment -
ANSWER-18 inches
In regards to the ordinary household lamp what are the percentages of light and heat
- ANSWER-10 percent of the energy is light
90 percent of the energy is heat
