1|Page

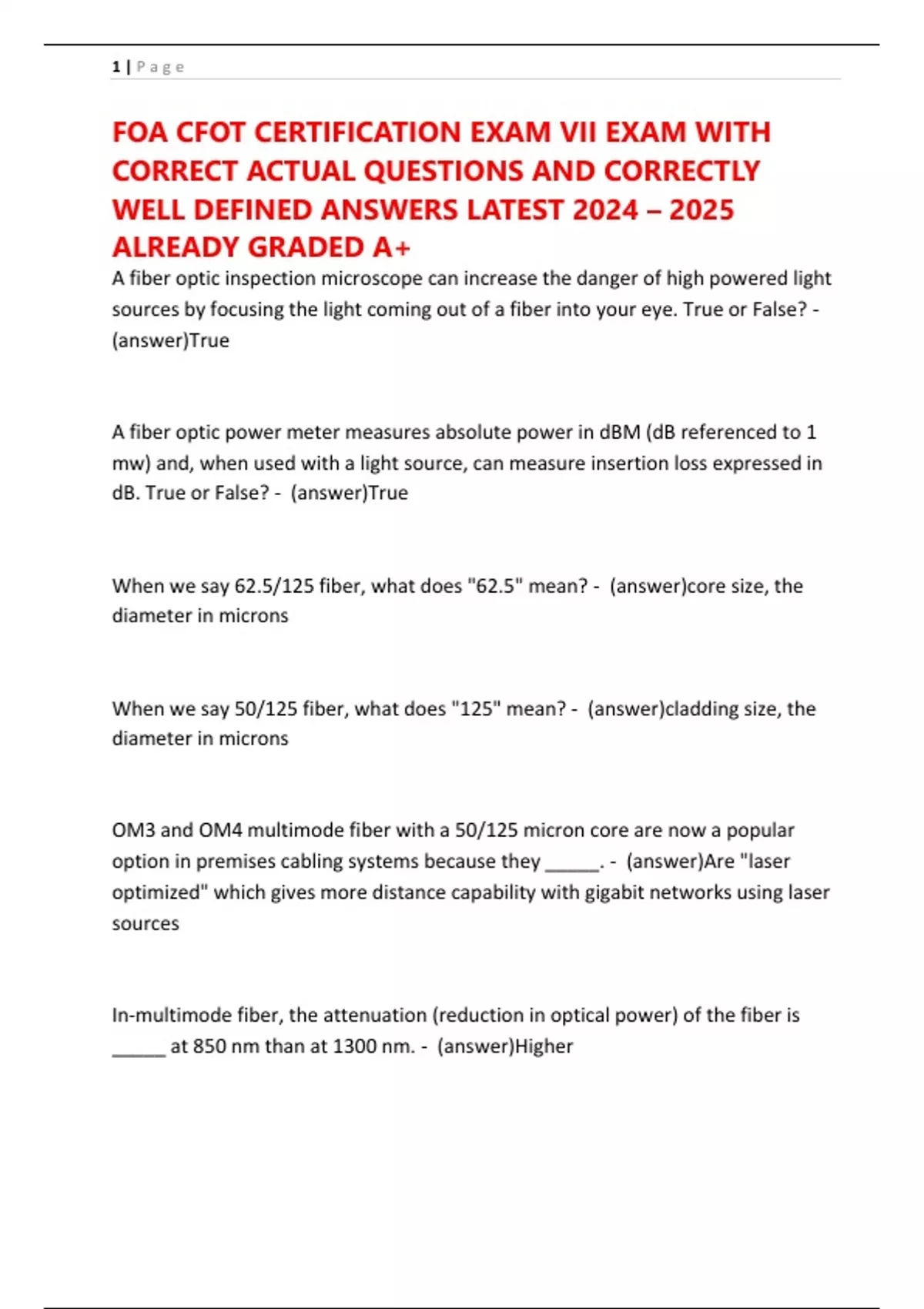

FOA CFOT CERTIFICATION EXAM VII EXAM WITH
CORRECT ACTUAL QUESTIONS AND CORRECTLY
WELL DEFINED ANSWERS LATEST 2024 – 2025
ALREADY GRADED A+
A fiber optic inspection microscope can increase the danger of high powered light
sources by focusing the light coming out of a fiber into your eye. True or False? -
(answer)True
A fiber optic power meter measures absolute power in dBM (dB referenced to 1
mw) and, when used with a light source, can measure insertion loss expressed in
dB. True or False? - (answer)True
When we say 62.5/125 fiber, what does "62.5" mean? - (answer)core size, the
diameter in microns
When we say 50/125 fiber, what does "125" mean? - (answer)cladding size, the
diameter in microns
OM3 and OM4 multimode fiber with a 50/125 micron core are now a popular
option in premises cabling systems because they _____. - (answer)Are "laser
optimized" which gives more distance capability with gigabit networks using laser
sources
In-multimode fiber, the attenuation (reduction in optical power) of the fiber is
_____ at 850 nm than at 1300 nm. - (answer)Higher
, 2|Page
Which of the following represents a singlemode (smaller core size) fiber size? -
(answer)9/125 micron
Singlemode fiber has _____ bandwidth than multimode fiber. - (answer)greater
Most plastic optical fibers are _____. - (answer)large core step-index
When you strip singlemode or graded index multimode mode glass fiber, you are
removing the ____. - (answer)Primary buffer coating
The proper method of pulling optical fiber cables is to attach the pull wire or tape
to the ____ of the cable. - (answer)Strength members
According to the references, hybrid cables are cables that contain ____. -
(answer)Both singelmode and multimode optical fibers
What type of fiber cable design allows for large numbers of fibers with ultra-high
density, small size (diameter) and lower cost? - (answer)ribbon
According to the references, composite cables refer to cables that contain ____> -
(answer)both optical fibers and copper conductors
Which optical fiber cables must be grounded? - (answer)all cables that contain
metallic elements
FOA CFOT CERTIFICATION EXAM VII EXAM WITH
CORRECT ACTUAL QUESTIONS AND CORRECTLY
WELL DEFINED ANSWERS LATEST 2024 – 2025
ALREADY GRADED A+
A fiber optic inspection microscope can increase the danger of high powered light
sources by focusing the light coming out of a fiber into your eye. True or False? -
(answer)True
A fiber optic power meter measures absolute power in dBM (dB referenced to 1
mw) and, when used with a light source, can measure insertion loss expressed in
dB. True or False? - (answer)True
When we say 62.5/125 fiber, what does "62.5" mean? - (answer)core size, the
diameter in microns
When we say 50/125 fiber, what does "125" mean? - (answer)cladding size, the
diameter in microns
OM3 and OM4 multimode fiber with a 50/125 micron core are now a popular
option in premises cabling systems because they _____. - (answer)Are "laser
optimized" which gives more distance capability with gigabit networks using laser
sources
In-multimode fiber, the attenuation (reduction in optical power) of the fiber is
_____ at 850 nm than at 1300 nm. - (answer)Higher
, 2|Page
Which of the following represents a singlemode (smaller core size) fiber size? -
(answer)9/125 micron
Singlemode fiber has _____ bandwidth than multimode fiber. - (answer)greater
Most plastic optical fibers are _____. - (answer)large core step-index
When you strip singlemode or graded index multimode mode glass fiber, you are
removing the ____. - (answer)Primary buffer coating
The proper method of pulling optical fiber cables is to attach the pull wire or tape
to the ____ of the cable. - (answer)Strength members
According to the references, hybrid cables are cables that contain ____. -
(answer)Both singelmode and multimode optical fibers
What type of fiber cable design allows for large numbers of fibers with ultra-high
density, small size (diameter) and lower cost? - (answer)ribbon
According to the references, composite cables refer to cables that contain ____> -
(answer)both optical fibers and copper conductors
Which optical fiber cables must be grounded? - (answer)all cables that contain
metallic elements
