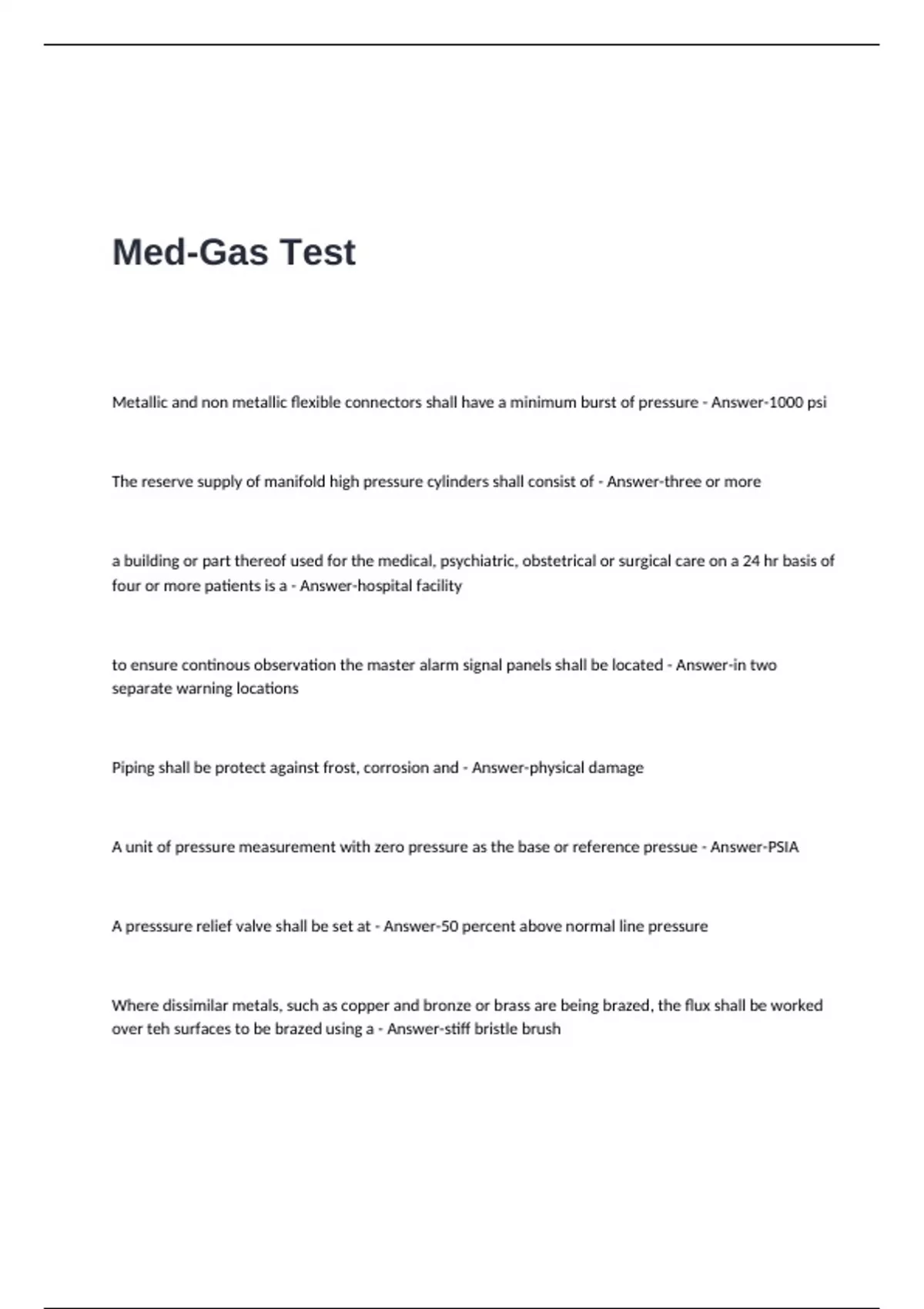

Med-Gas Test
Metallic and non metallic flexible connectors shall have a minimum burst of pressure - Answer-1000 psi
The reserve supply of manifold high pressure cylinders shall consist of - Answer-three or more
a building or part thereof used for the medical, psychiatric, obstetrical or surgical care on a 24 hr basis of
four or more patients is a - Answer-hospital facility
to ensure continous observation the master alarm signal panels shall be located - Answer-in two
separate warning locations
Piping shall be protect against frost, corrosion and - Answer-physical damage
A unit of pressure measurement with zero pressure as the base or reference pressue - Answer-PSIA
A presssure relief valve shall be set at - Answer-50 percent above normal line pressure
Where dissimilar metals, such as copper and bronze or brass are being brazed, the flux shall be worked
over teh surfaces to be brazed using a - Answer-stiff bristle brush
, Building or portions of buildings in which medical, dental, psychiatric, nursing, obstetrical or surgical
care is provided is a - Answer-health care facility
Central supply systems for Nitrous Oxide and Carbon Dioxide using cylinders or portable containers shall
be prevented from reaching lower than recommendations of the central supply system's manufactuerer,
but shall never be lower than or greater than - Answer-(c) -30, 125 F
Clean _______ shall be used to clean the exterior surfaces of tube ends - Answer-non shedding abrasive
pads
prior to closing of walls a cross connection test shall be made. All medical gas systems shall be reduced
to atmospheric pressure and ____ - Answer-each system pressurized separately with 50 psig of oil free
nitrogen
New or replacement valves shall be - Answer-quarter turn shut off type with an indicating handle
zone valve boxes shall be installed where they are - Answer-visible and accessible at all times
If the interior surfaces of fitting sockets become contaminated prior to brazing, they shall be recleaned
for brazing with a clean, oil-free wire brush and - Answer-shall not result in grooving or surfaces to be
joined
use of steel wool in the cleaning of medical gas piping is - Answer-prohibited due to the possible
presence of oil
the three general classes of medical gas piping are - Answer-main lines, risers, and branch (lateral) lines
nitrogen is an element that at atmospheric tempratures and pressures exist as a clear colorless and
tasteless gas. It comprises how much of earths atmosphere - Answer-four-fifths
Metallic and non metallic flexible connectors shall have a minimum burst of pressure - Answer-1000 psi
The reserve supply of manifold high pressure cylinders shall consist of - Answer-three or more
a building or part thereof used for the medical, psychiatric, obstetrical or surgical care on a 24 hr basis of
four or more patients is a - Answer-hospital facility
to ensure continous observation the master alarm signal panels shall be located - Answer-in two
separate warning locations
Piping shall be protect against frost, corrosion and - Answer-physical damage
A unit of pressure measurement with zero pressure as the base or reference pressue - Answer-PSIA
A presssure relief valve shall be set at - Answer-50 percent above normal line pressure
Where dissimilar metals, such as copper and bronze or brass are being brazed, the flux shall be worked
over teh surfaces to be brazed using a - Answer-stiff bristle brush
, Building or portions of buildings in which medical, dental, psychiatric, nursing, obstetrical or surgical
care is provided is a - Answer-health care facility
Central supply systems for Nitrous Oxide and Carbon Dioxide using cylinders or portable containers shall
be prevented from reaching lower than recommendations of the central supply system's manufactuerer,
but shall never be lower than or greater than - Answer-(c) -30, 125 F
Clean _______ shall be used to clean the exterior surfaces of tube ends - Answer-non shedding abrasive
pads
prior to closing of walls a cross connection test shall be made. All medical gas systems shall be reduced
to atmospheric pressure and ____ - Answer-each system pressurized separately with 50 psig of oil free
nitrogen
New or replacement valves shall be - Answer-quarter turn shut off type with an indicating handle
zone valve boxes shall be installed where they are - Answer-visible and accessible at all times
If the interior surfaces of fitting sockets become contaminated prior to brazing, they shall be recleaned
for brazing with a clean, oil-free wire brush and - Answer-shall not result in grooving or surfaces to be
joined
use of steel wool in the cleaning of medical gas piping is - Answer-prohibited due to the possible
presence of oil
the three general classes of medical gas piping are - Answer-main lines, risers, and branch (lateral) lines
nitrogen is an element that at atmospheric tempratures and pressures exist as a clear colorless and
tasteless gas. It comprises how much of earths atmosphere - Answer-four-fifths
