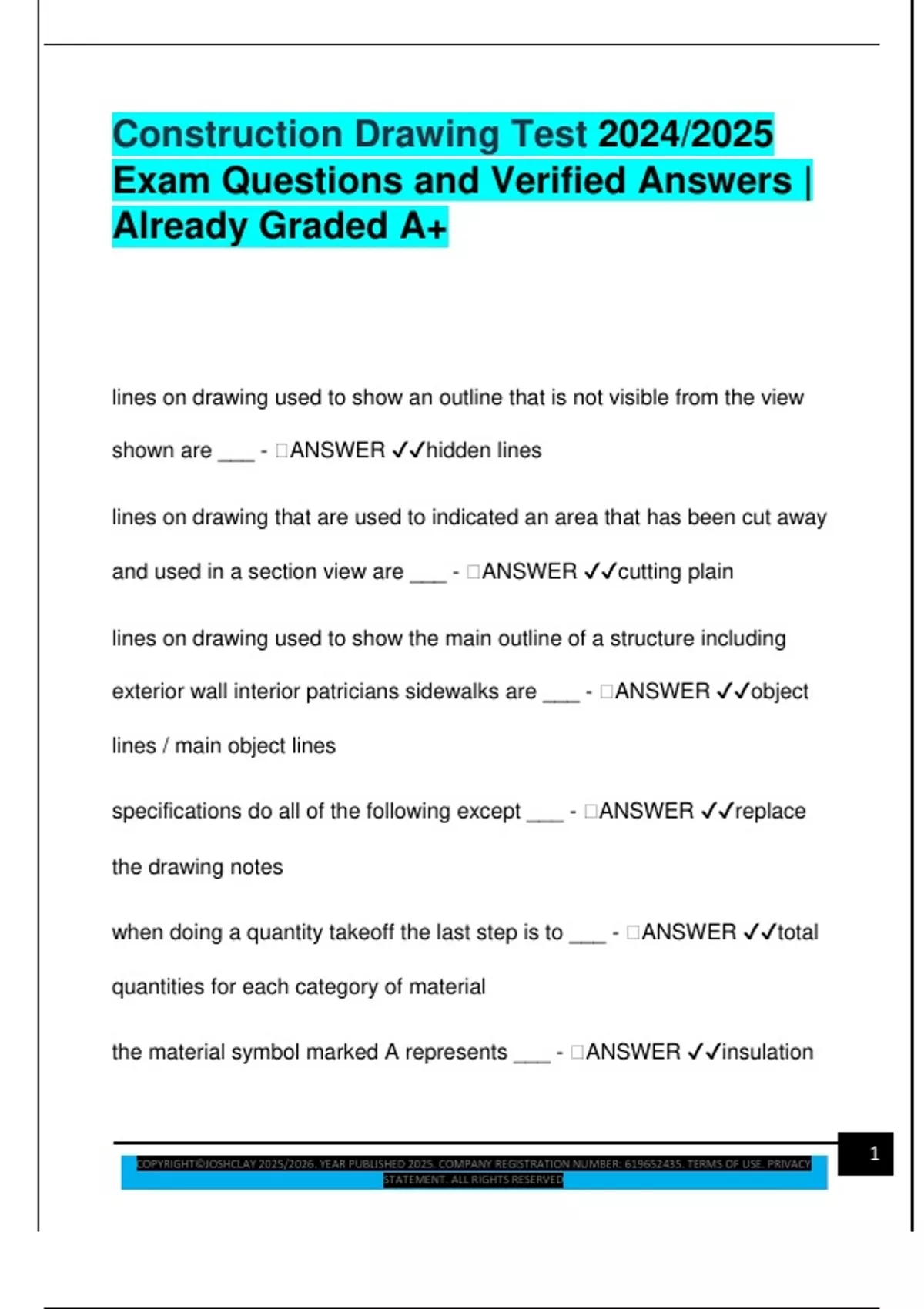

Construction Drawing Test 2024/2025
Exam Questions and Verified Answers |
Already Graded A+
lines on drawing used to show an outline that is not visible from the view
shown are ___ - 🧠ANSWER ✔✔hidden lines
lines on drawing that are used to indicated an area that has been cut away
and used in a section view are ___ - 🧠ANSWER ✔✔cutting plain
lines on drawing used to show the main outline of a structure including
exterior wall interior patricians sidewalks are ___ - 🧠ANSWER ✔✔object
lines / main object lines
specifications do all of the following except ___ - 🧠ANSWER ✔✔replace
the drawing notes
when doing a quantity takeoff the last step is to ___ - 🧠ANSWER ✔✔total
quantities for each category of material
the material symbol marked A represents ___ - 🧠ANSWER ✔✔insulation
