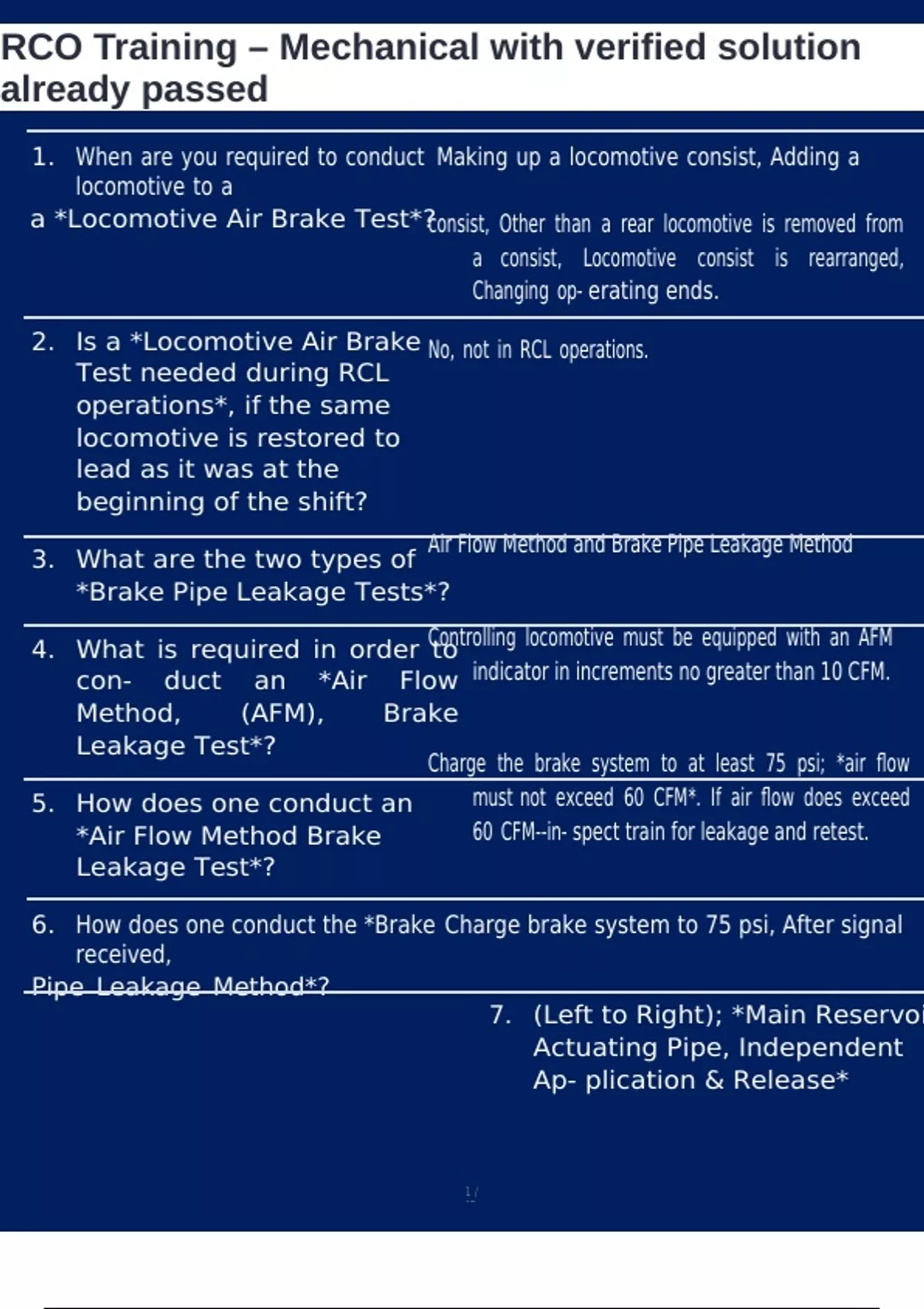

RCO Training – Mechanical with verified solution
already passed
1. When are you required to conduct Making up a locomotive consist, Adding a
locomotive to a
a *Locomotive Air Brake Test*?consist, Other than a rear locomotive is removed from
a consist, Locomotive consist is rearranged,
Changing op- erating ends.
2. Is a *Locomotive Air Brake No, not in RCL operations.
Test needed during RCL
operations*, if the same
locomotive is restored to
lead as it was at the
beginning of the shift?
Air Flow Method and Brake Pipe Leakage Method
3. What are the two types of
*Brake Pipe Leakage Tests*?
4. What is required in order Controlling
to locomotive must be equipped with an AFM
con- duct an *Air Flow indicator in increments no greater than 10 CFM.
Method, (AFM), Brake
Leakage Test*?
Charge the brake system to at least 75 psi; *air flow
5. How does one conduct an must not exceed 60 CFM*. If air flow does exceed
*Air Flow Method Brake 60 CFM--in- spect train for leakage and retest.
Leakage Test*?
6. How does one conduct the *Brake Charge brake system to 75 psi, After signal
received,
Pipe Leakage Method*?
7. (Left to Right); *Main Reservoi
Actuating Pipe, Independent
Ap- plication & Release*
1/
17
,RCO Training – Mechanical with verified solution
already passed
uce pressure by 20 psi, After brake pipe
exhaust stops--wait one minute, Cut-out the
automatic brake valve, and then wait an
additional minute for brake pressure to
equalize, Time the brake pipe leakage for one
minute. If leakage *does not exceed 5 psi*
then test CW. If it does, check for leaks and
retest.
2/
17
,RCO Training – Mechanical with verified solution
already passed
8. Independent Brake Valve Controls the locomotive brakes independently of the
train
brakes.
9. Positions of the Release, Application Zone, Fully Applied
Independent Brake Valve
10. Positions of Automatic Brake Han- Release, Minimum Reduction, Service Zone, Full
Service,
dle Suppression, Handle Ott, and Emergency Position.
11. Release Position Charges the train air brake system by allowing air to
(Automatic Brakes), flow from the locomotives to the air pipe and it
*Function* releases loco- motive and train brakes.
12. Minimum Reduction Position (Au- Provides a *brake pipe reduction of 6 - 8 psi.*
Used for
tomatic Brakes), *Function*
13. Service Zone Position
(Automatic Brakes), 15. Suppression Position
*Function* (Automatic Brakes), *Function
14. Full Service Position
(Automatic Brakes),
*Function*
3/
17
