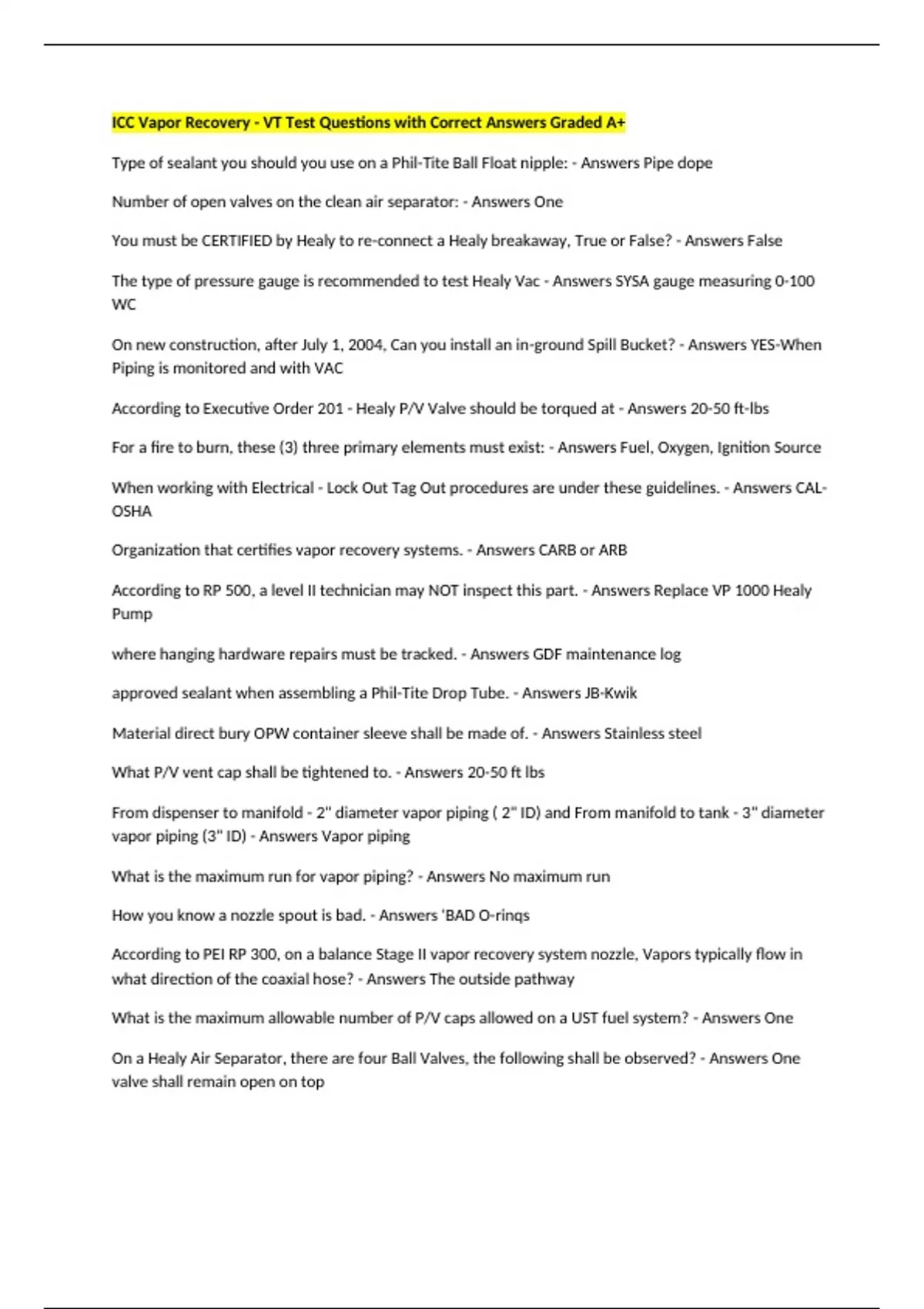

ICC Vapor Recovery - VT Test Questions with Correct Answers Graded A+
Type of sealant you should you use on a Phil-Tite Ball Float nipple: - Answers Pipe dope
Number of open valves on the clean air separator: - Answers One
You must be CERTIFIED by Healy to re-connect a Healy breakaway, True or False? - Answers False
The type of pressure gauge is recommended to test Healy Vac - Answers SYSA gauge measuring 0-100
WC
On new construction, after July 1, 2004, Can you install an in-ground Spill Bucket? - Answers YES-When
Piping is monitored and with VAC
According to Executive Order 201 - Healy P/V Valve should be torqued at - Answers 20-50 ft-lbs
For a fire to burn, these (3) three primary elements must exist: - Answers Fuel, Oxygen, Ignition Source
When working with Electrical - Lock Out Tag Out procedures are under these guidelines. - Answers CAL-
OSHA
Organization that certifies vapor recovery systems. - Answers CARB or ARB
According to RP 500, a level II technician may NOT inspect this part. - Answers Replace VP 1000 Healy
Pump
where hanging hardware repairs must be tracked. - Answers GDF maintenance log
approved sealant when assembling a Phil-Tite Drop Tube. - Answers JB-Kwik
Material direct bury OPW container sleeve shall be made of. - Answers Stainless steel
What P/V vent cap shall be tightened to. - Answers 20-50 ft lbs
From dispenser to manifold - 2" diameter vapor piping ( 2" ID) and From manifold to tank - 3" diameter
vapor piping (3" ID) - Answers Vapor piping
What is the maximum run for vapor piping? - Answers No maximum run
How you know a nozzle spout is bad. - Answers 'BAD O-rinqs
According to PEI RP 300, on a balance Stage II vapor recovery system nozzle, Vapors typically flow in
what direction of the coaxial hose? - Answers The outside pathway
What is the maximum allowable number of P/V caps allowed on a UST fuel system? - Answers One
On a Healy Air Separator, there are four Ball Valves, the following shall be observed? - Answers One
valve shall remain open on top
, The Pressure settings for the UST Vent Cap is. - Answers .0+- 0.5inches H2O Negative Pressure 1,0+-2.0
inches H2O Positive Pressure
Given that in a balance Stage II vapor recovery system, the nozzle is equipped with a flexible nozzle
bellows that seals around the automobile fill pipe. This is how vapors will typically flow. - Answers From
the outside pathway of the coaxial hose
The Healy 1301 flow limiter shall be used when the flow rate exceeds this. - Answers 10.0 GPM
Given that: The VP1000 vacuum pump motor will operate automatically when the temperature drops.
The VP1000 will automatically operate when the temperature drops below this temperature. - Answers
40 f (35f if 40f is not an option)
How do you verify a nozzle spout is bad and needs to be replaced? - Answers Test the nozzle
Given that a "Classified Area" is a located where a fire and explosion hazard exists due to the presence
of fuel vapors. Because vapors are heavier than air In a Class I, Division 2 area, where may vapors be
present - Answers Extending 20 feet from dispensers to a height of 1.5 feet above ground
absorbent pads, and absorbent boom, fuel absorbet material - Answers When responding to Fuel Spills,
it is advisable to have the following equipment.
In accordance with PEI RP-500, a Level II Qualified Person may not perform what duty? - Answers
Replace a Healy VP1000 Pump
Volatile Organic Compounds - Answers VOC's
What does a Combustible-Gas Detector check for in Vapor Recovery Systems? - Answers Leaks/Vapors in
Vapor Recovery Systems {or LELor LFL 10% max)
8.0 +- 2.0, The P/V Cap has a black sticker with gold letters stating these positive/negative specs: -
Answers 3.0 +- 0.5
This is what connecting above ground vent lines together is called. - Answers Manifolding
Continuous monitoring which includes pressure (hydrostatic), vacuum in brine, was required after July 1,
2004 for which station components? - Answers Sumps and UDCs
The Healy VPl000 runs at a higher RPM under what circumstances? - Answers When both sides are
activated and nozzles are removed from the dispenser
Where is the Vapor valve located at? - Answers Under the dispenser (nozzle is second choice if dispenser
is not available)
When installing a ball float vent valve, what type of sealant shall you use? - Answers A gasoline resistant
compound
Type of sealant you should you use on a Phil-Tite Ball Float nipple: - Answers Pipe dope
Number of open valves on the clean air separator: - Answers One
You must be CERTIFIED by Healy to re-connect a Healy breakaway, True or False? - Answers False
The type of pressure gauge is recommended to test Healy Vac - Answers SYSA gauge measuring 0-100
WC
On new construction, after July 1, 2004, Can you install an in-ground Spill Bucket? - Answers YES-When
Piping is monitored and with VAC
According to Executive Order 201 - Healy P/V Valve should be torqued at - Answers 20-50 ft-lbs
For a fire to burn, these (3) three primary elements must exist: - Answers Fuel, Oxygen, Ignition Source
When working with Electrical - Lock Out Tag Out procedures are under these guidelines. - Answers CAL-
OSHA
Organization that certifies vapor recovery systems. - Answers CARB or ARB
According to RP 500, a level II technician may NOT inspect this part. - Answers Replace VP 1000 Healy
Pump
where hanging hardware repairs must be tracked. - Answers GDF maintenance log
approved sealant when assembling a Phil-Tite Drop Tube. - Answers JB-Kwik
Material direct bury OPW container sleeve shall be made of. - Answers Stainless steel
What P/V vent cap shall be tightened to. - Answers 20-50 ft lbs
From dispenser to manifold - 2" diameter vapor piping ( 2" ID) and From manifold to tank - 3" diameter
vapor piping (3" ID) - Answers Vapor piping
What is the maximum run for vapor piping? - Answers No maximum run
How you know a nozzle spout is bad. - Answers 'BAD O-rinqs
According to PEI RP 300, on a balance Stage II vapor recovery system nozzle, Vapors typically flow in
what direction of the coaxial hose? - Answers The outside pathway
What is the maximum allowable number of P/V caps allowed on a UST fuel system? - Answers One
On a Healy Air Separator, there are four Ball Valves, the following shall be observed? - Answers One
valve shall remain open on top
, The Pressure settings for the UST Vent Cap is. - Answers .0+- 0.5inches H2O Negative Pressure 1,0+-2.0
inches H2O Positive Pressure
Given that in a balance Stage II vapor recovery system, the nozzle is equipped with a flexible nozzle
bellows that seals around the automobile fill pipe. This is how vapors will typically flow. - Answers From
the outside pathway of the coaxial hose
The Healy 1301 flow limiter shall be used when the flow rate exceeds this. - Answers 10.0 GPM
Given that: The VP1000 vacuum pump motor will operate automatically when the temperature drops.
The VP1000 will automatically operate when the temperature drops below this temperature. - Answers
40 f (35f if 40f is not an option)
How do you verify a nozzle spout is bad and needs to be replaced? - Answers Test the nozzle
Given that a "Classified Area" is a located where a fire and explosion hazard exists due to the presence
of fuel vapors. Because vapors are heavier than air In a Class I, Division 2 area, where may vapors be
present - Answers Extending 20 feet from dispensers to a height of 1.5 feet above ground
absorbent pads, and absorbent boom, fuel absorbet material - Answers When responding to Fuel Spills,
it is advisable to have the following equipment.
In accordance with PEI RP-500, a Level II Qualified Person may not perform what duty? - Answers
Replace a Healy VP1000 Pump
Volatile Organic Compounds - Answers VOC's
What does a Combustible-Gas Detector check for in Vapor Recovery Systems? - Answers Leaks/Vapors in
Vapor Recovery Systems {or LELor LFL 10% max)
8.0 +- 2.0, The P/V Cap has a black sticker with gold letters stating these positive/negative specs: -
Answers 3.0 +- 0.5
This is what connecting above ground vent lines together is called. - Answers Manifolding
Continuous monitoring which includes pressure (hydrostatic), vacuum in brine, was required after July 1,
2004 for which station components? - Answers Sumps and UDCs
The Healy VPl000 runs at a higher RPM under what circumstances? - Answers When both sides are
activated and nozzles are removed from the dispenser
Where is the Vapor valve located at? - Answers Under the dispenser (nozzle is second choice if dispenser
is not available)
When installing a ball float vent valve, what type of sealant shall you use? - Answers A gasoline resistant
compound
